Contract and component manufacturer for machining, assembly, surface technology and spare parts logistics in mechanical engineering
PLAMAG GmbH
Pausaer Straße 284, 08525 Plauen · 28,000 m² production and assembly halls (of which 8,000 m² warehouse space)New on Amplifa
About PLAMAG
PLAMAG GmbH is a medium-sized contract and component manufacturer in Plauen with more than 100 years of mechanical engineering tradition at the site. The company machines workpieces of virtually any geometry in lot size 1 as well as in small and medium series: CNC milling of large parts up to 8 tonnes and 5 m in length, CNC turning, cylindrical and surface grinding up to 450 mm diameter with integrated measuring systems, as well as drilling and sawing. In addition, PLAMAG offers the assembly of plants, units and subassemblies, wet painting in its own painting facility, annealing in its own hardening furnace up to 900 °C, and a logistics service with a spare parts warehouse (approx. 32,000 items, approx. 1,000 shipments daily worldwide). Jig and fixture design, tooling technology and CNC programming ensure short reaction times. Customers come from mechanical engineering, the packaging industry, electrical engineering and special machinery construction; since 2017, KraussMaffei Technologies GmbH has been a shareholder and largest customer.
- Site
- Plauen
- Processes
- Milling, Turning, Grinding (cylindrical, surface, cam grinding), Drilling, Assembly (plants, units, subassemblies), Wet painting, Annealing / heat treatment, Logistics service / spare parts warehouse / call-off warehouse
- Materials
- CNC Milling, CNC Turning, Cylindrical, Surface and Cam Grinding, Assembly of Plants, Units and Subassemblies, Wet Painting, Annealing / Heat Treatment
- Certificates
- ISO 9001:2015
- Founded
- 2015
- Employees
- approx. 140
- Industries
- Mechanical engineering, Packaging industry, Electrical engineering, Special machinery construction, Plant engineering, Printing machinery (historical)
- 01
CNC programming and jig and fixture design
- 02
Sawing and drilling
- 03
CNC turning
- 04
CNC milling
- 05
Grinding
- 06
Heat treatment/annealing
- 07
Wet painting
- 08
Assembly of plants, units and subassemblies
- 09

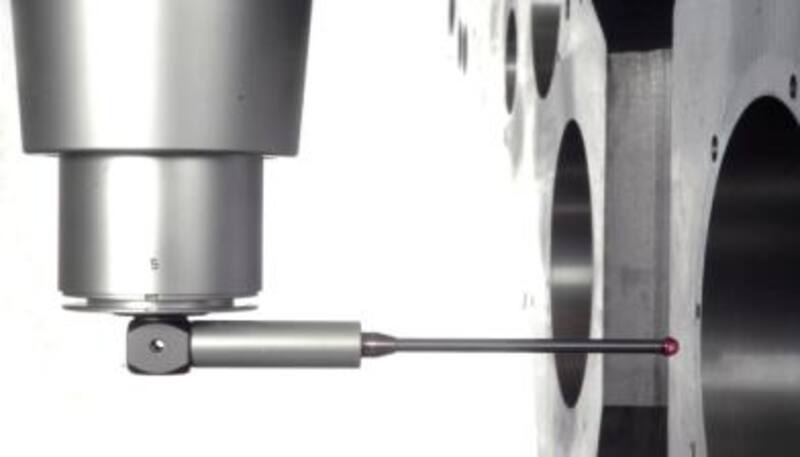

Quality assurance
- 10

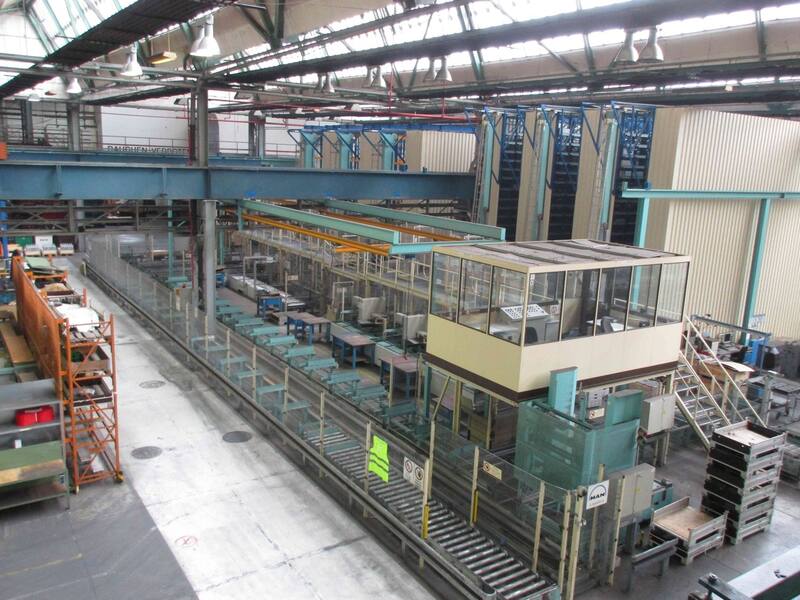

Warehousing and shipping
Processes and Manufacturing
CNC Milling
Machining of large, medium and small parts up to 8 t, 5 m length, 4 m width and 1 m height, among others on a SHW Powerspeed 5L 5-axis milling machine (6000/1600/1300 mm).
CNC Turning

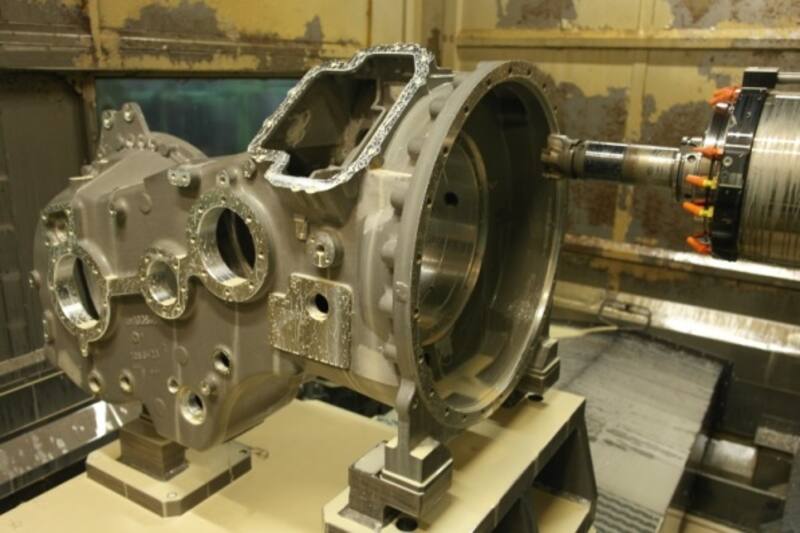

Range from classic turned parts of medium dimensions to gearbox shafts, with a vertical turning machine and turn-mill-drill machining centres.
Cylindrical, Surface and Cam Grinding
Integrated measuring systems enable in-process controlled grinding up to 450 mm diameter.

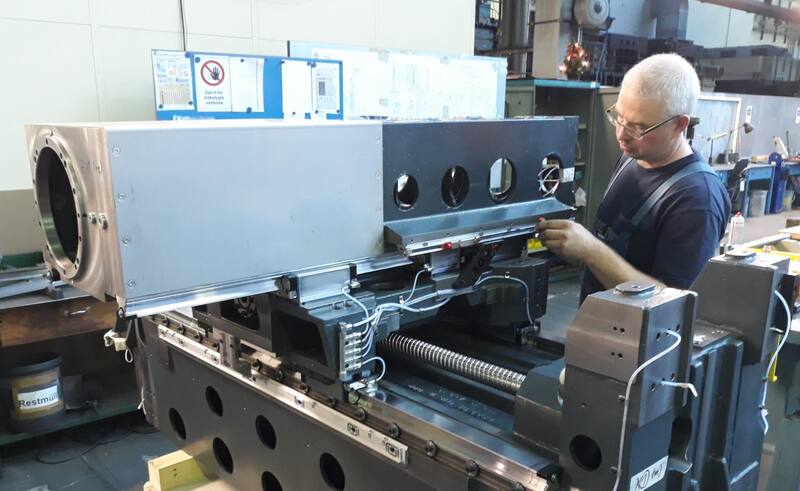

Assembly of Plants, Units and Subassemblies
Manufacture and procurement of individual parts with assembly according to customer specifications from a single source.
Wet Painting
Own walk-in painting booth for workpieces up to 15 m in length, approx. 3.50 m width/height and 8 t weight.

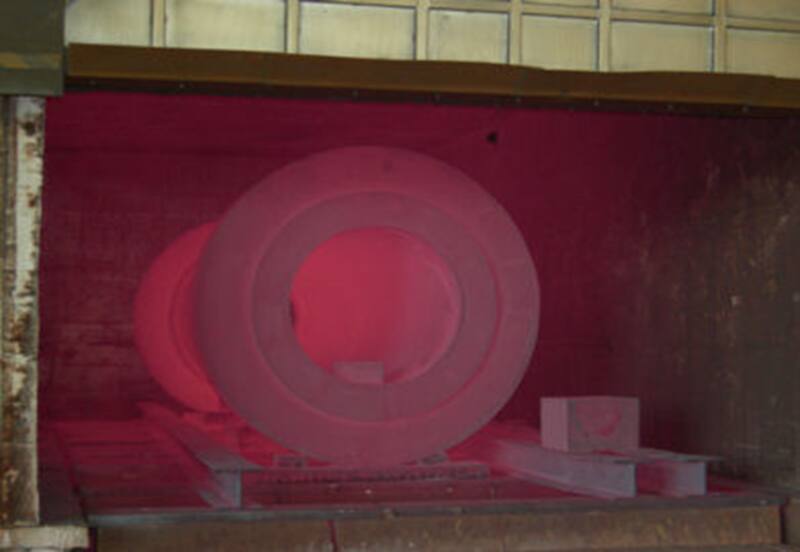

Annealing / Heat Treatment
Own hardening furnace up to 900 °C for workpieces up to 2.8 m length, 1.3 m width and 0.7 m height.

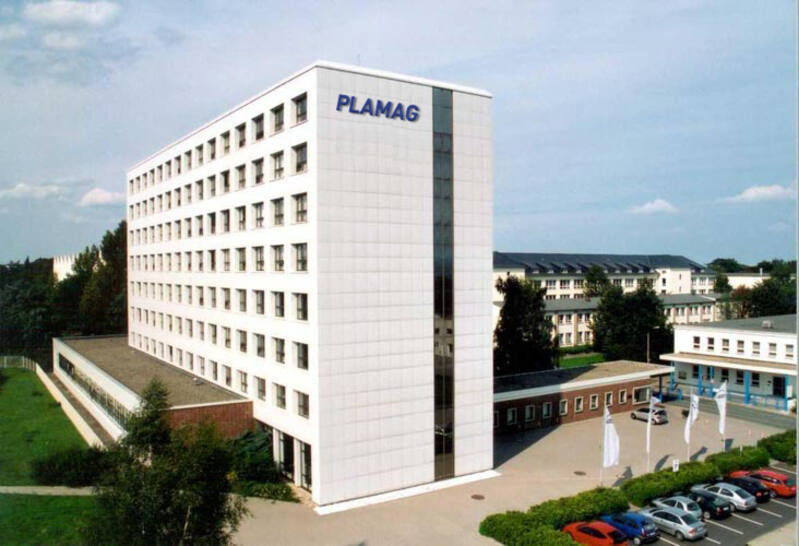

Plauen Site
Plauen
DEHeadquarters, manufacturing, assembly, spare parts warehouse, painting facility, hardening furnace
- Part weight / size
- Milling up to 8 t; painting up to 8 t
- Lot size
- Lot size 1, small and medium series
- Materials
- Metals for mechanical engineering
- SHW Powerspeed 5L 5-axis milling machine (6000/1600/1300 mm)
- Turn-mill-drill machining centres M 65 WFL and M 60 WFL
- Traub TNC 65 bar turning automatic lathe
- Niles lathes N30 UT, N30/3000, N30/3500
- Okuma lathes LU 400-2, LU 400/M, LT 300M
- Vertical turning machine Sedin-Schiess (D1250/1000)
- Jacobsen surface grinding machine
- Kovosit BO 50/1600 radial drilling machine
- Own painting booth
- Hardening furnace up to 900 °C
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| MillingMachining | – | 5m × 4m × 1m | 8 tonnes | Lot size 1 – Large series | – |
| TurningMachining | – | – | – | – | – |
| Grinding (cylindrical, surface, cam grinding)Machining | – | – | – | – | – |
| DrillingMachining | – | – | – | – | – |
| Assembly (plants, units, subassemblies)Assembly | – | – | – | – | – |
| Wet paintingSurface | – | 15m × approx. 3.50m × approx. 3.50m | 8 tonnes | – | – |
| Annealing / heat treatmentHeat treatment | – | 2.8m × 1.3m × 0.7m | – | – | – |
| Logistics service / spare parts warehouse / call-off warehouseEngineering | – | – | – | – | – |
| Quality assuranceInspection | – | – | – | – | – |
| Jig and fixture design / tooling technology / CNC programmingEngineering | – | – | – | – | – |
19 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Radial drilling machine | Kovosit BO 50/1600 | 1 | Clamping area 1470/986 | – | Plauen |
| Drilling machine | Donau Danuflex 135 | 1 | Clamping area 1060/500 | – | Plauen |
| Turn-mill-drill machining centre | M M 65 WFL | 1 | 700/-135/175/3100, D420x3050 | – | Plauen |
| Turn-mill-drill machining centre | M M 60 WFL | 1 | 670/-125/175/1150, D420x600 | – | Plauen |
| Bar turning automatic lathe | Traub TNC 65 | 1 | D65/200 | – | Plauen |
| Lathe | Niles N30 UT | 1 | 800//1500, D620x1200 | – | Plauen |
| Lathe | Niles N30/3000 | 1 | 630/50/3000, D220x2900 | – | Plauen |
| Lathe | Niles N30/3500 | 1 | 630//3500, D420/3500 | – | Plauen |
| Lathe | MaxMüller MD 7 IT4A | 1 | 550//2025, D420/1600 | – | Plauen |
| Lathe | WZM Sinsheim CNC 604 MV | 1 | 170//1400, D130x1700 | – | Plauen |
| Lathe | Okuma LU 400-2 | 1 | 600//1200, D260x800 | – | Plauen |
| Lathe | Okuma LU 400/M | 1 | 600//1200, D330x1200 | – | Plauen |
| Lathe | Böhringer DUS 560 | 1 | 315//1500, D250x1500 | – | Plauen |
| Lathe | TOS SUI | 1 | – | – | Plauen |
| Lathe | Okuma LT 300M | 1 | 550//1000, D260x300 | – | Plauen |
| Turning centre | Emco HT 690 | 1 | 280/200/1500, D220x300 | – | Plauen |
| Vertical turning machine | Sedin-Schiess | 1 | 2000//1400, D1250/1000 | – | Plauen |
| Surface grinding machine | Jacobsen Surface Grinder | 1 | 900/410/650 | – | Plauen |
| 5-axis milling machine (large parts) | SHW Powerspeed 5L | 1 | 6000/1600/1300 | – | Plauen |
Additional services
Reference customers
Quality

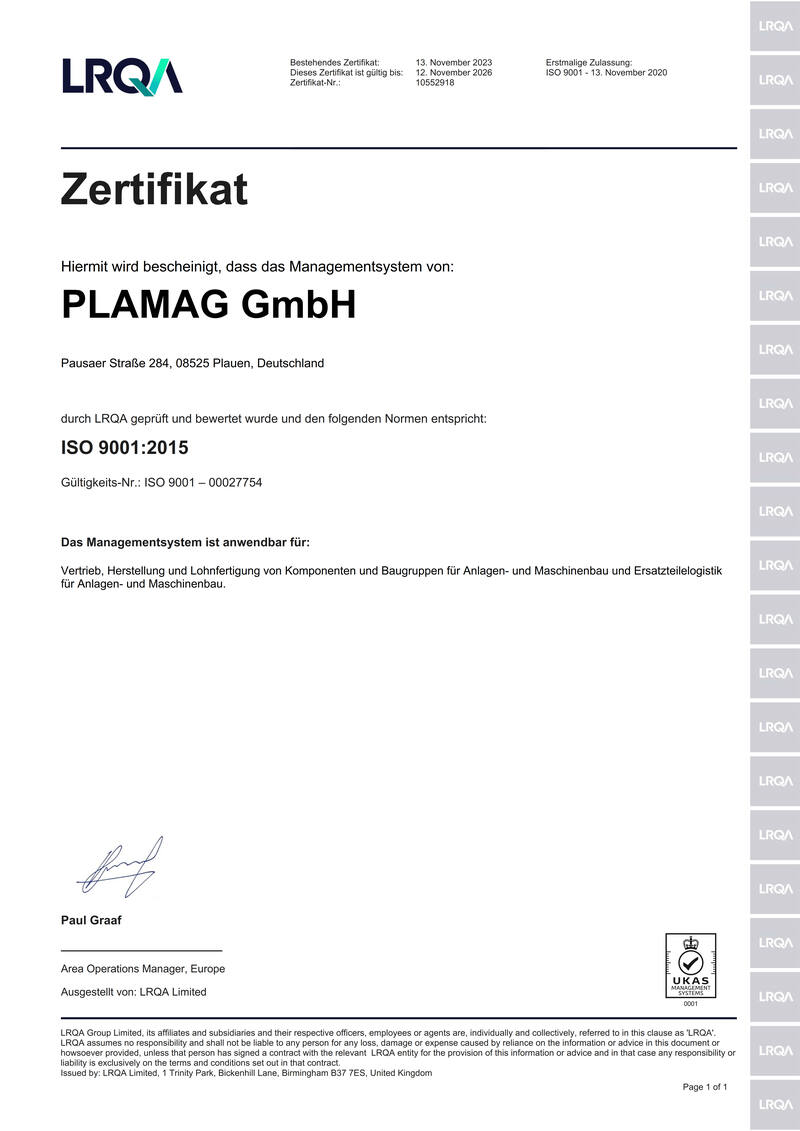

PLAMAG is certified to ISO 9001:2015 for the sales, manufacture and contract production of components and subassemblies for plant and mechanical engineering as well as for spare parts logistics (LRQA, cert. no. 10552918). Integrated measuring systems on the grinding machines enable in-process controlled grinding up to 450 mm diameter.
| Evidence | Plauen |
|---|---|
| ISO 9001:2015 |
History
- 1912
The world's first web-fed offset press is built at the parent company VOMAG
- 1946
Foundation of the company as 'Plamag' (Plauener Maschinenbau-Gesellschaft), spun off from VOMAG
- 1947
Construction of the first printing press after the war
- 1959
Start of operations of the development and research department
- 1967
Transition from letterpress to offset printing with the Hyperset series
- 1990
Acquisition by MAN Roland Druckmaschinen, renamed MAN Plamag Druckmaschinen AG
- 2011
Insolvency of the parent group manroland
- 2012
Spun off as an independent company Plamag Plauen GmbH in February
- 2013
Acquisition of the machining operations of the insolvent manroland plant in Plauen by IBS-Group (Thierhaupten), restructuring into contract manufacturing, approx. 40 employees
- 2015
Re-founding of IBS-PLAMAG Maschinenbau GmbH, approx. 80 employees
- 2017
KraussMaffei, as largest customer, acquires 100% of the company shares, approx. 120 employees
- 2018
Relocation of the KraussMaffei spare parts warehouse from Munich to Plauen, expansion of the assembly department, approx. 140 employees
- 2020
First certification to DIN EN ISO 9001:2015
