Contract manufacturing of turned, milled and welded parts as well as production parts and components for mechanical engineering in small and large series.
PMB Präzisionsmaschinenbau GmbH
97854 Steinfeld-Hausen (DE)New on Amplifa
About Us
PMB Präzisionsmaschinenbau GmbH was founded in 1999 and is a manufacturing company of the INHATEC Group based in Steinfeld-Hausen (Raiffeisenstraße 6), between Würzburg and Aschaffenburg. As a contract manufacturer, the company produces parts and components for mechanical engineering, including rollers and gear blanks for the printing machinery industry, steering bars for heavy-duty trailers, bushes for truck axles, aluminium housings for linear motors, turned and milled parts for the food industry, precision parts for linear guide systems, protective sleeves for metrology and power plant construction with TÜV acceptance, as well as cylinder tubes, piston rods and pipes for pressure and piston accumulators. All common structural and stainless steels as well as aluminium, brass, copper, cast iron and gunmetal are processed. The value chain includes CNC turning with part lengths up to 4,000 mm, 3-axis and 5-axis milling with machining envelopes up to 1,000 x 600 x 600 mm, drilling, sawing, grinding, welding (pulse and TIG processes) as well as cleaning. Production is carried out in small and large series; the quality management system is certified to ISO 9001:2015. The company also offers CIC coating®.
- Site
- Steinfeld-Hausen
- Processes
- Milling (3-axis and 5-axis milling centres), Turning (CNC lathes), Drilling, Sawing, Grinding, Welding (pulse welding system, TIG), Washing/Cleaning, Manufacture of production parts and components for mechanical engineering (contract manufacturing)
- Materials
- Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal
- Certificates
- ISO 9001:2015, ISO 9001
- Founded
- 1999
- Industries
- Mechanical engineering, Printing machinery industry, Food industry, Power plant construction, Hydraulics/Pneumatics, Metrology
- 01
Sawing
- 02
CNC turning
- 03
CNC milling
- 04
Drilling
- 05
Grinding
- 06
Welding
- 07
Cleaning
- 08
Inspection/Shipping
Materials and Processes
Structural and stainless steels
All common structural and stainless steels for production parts in mechanical engineering, welding and grinding.
Aluminium

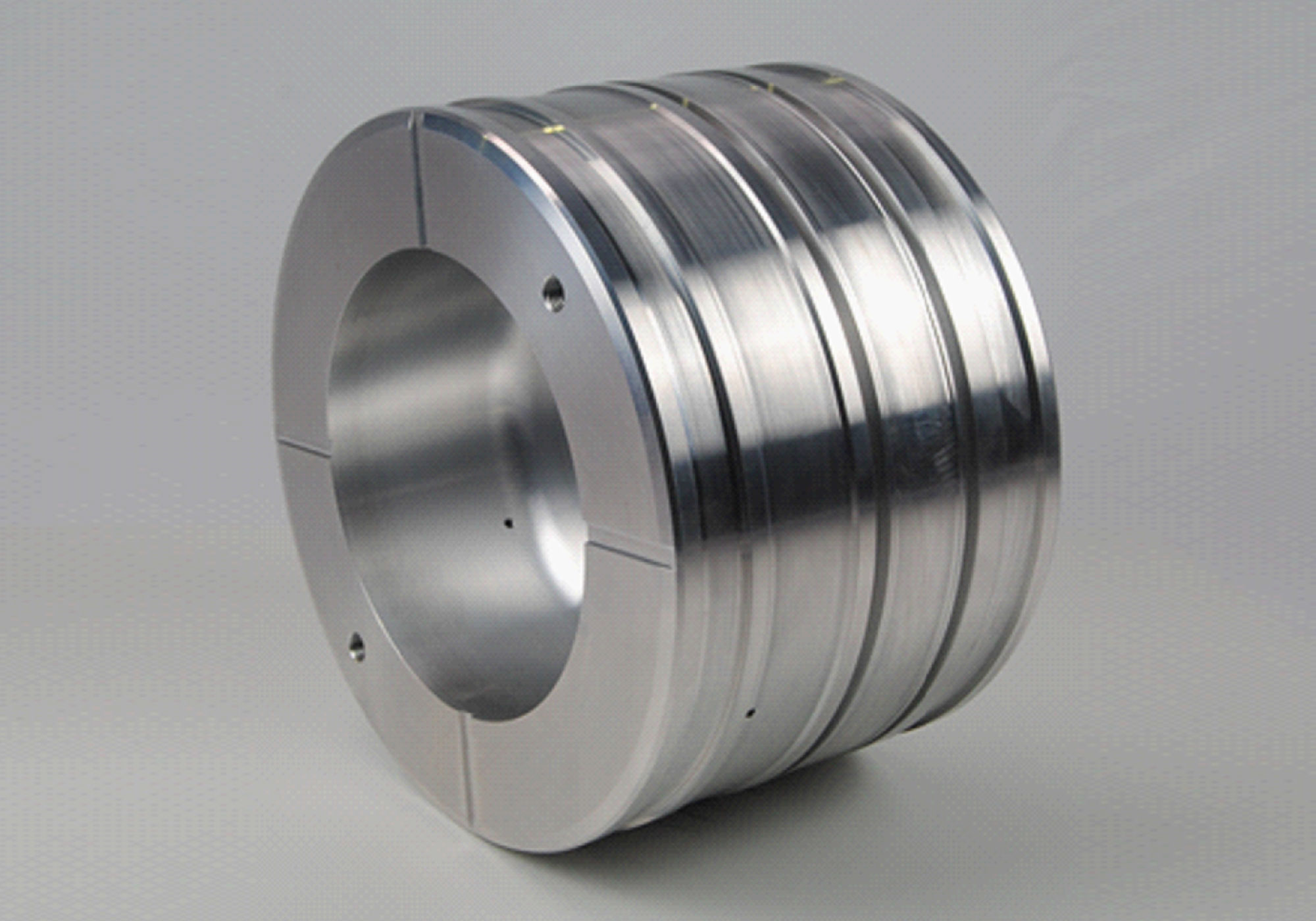

Processed, among other things, for housings of linear motors.
Brass
Material for turned and milled parts in small and large series.
Copper
Processed in contract manufacturing of components of all kinds.
Cast iron
Processing of cast materials, for example for gear blanks and rollers.
Gunmetal
Processed for bushes and machined parts in mechanical engineering.

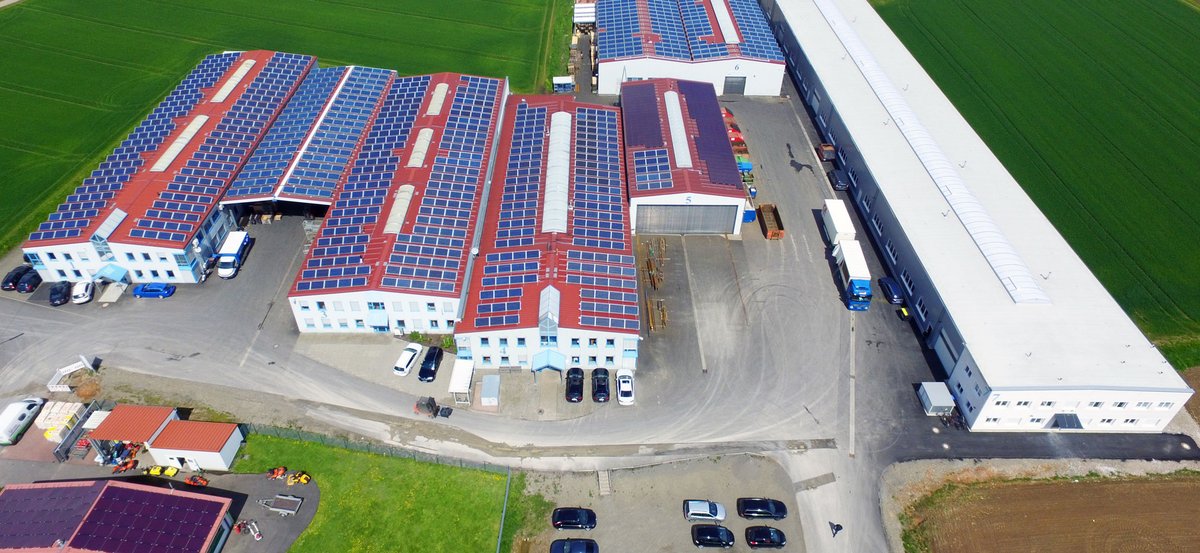

Locations
Steinfeld-Hausen
DEManufacturing site/administration within the INHATEC Group corporate complex
- Lot size
- Small and large series
- Materials
- Structural and stainless steels, aluminium, brass, copper, cast iron, gunmetal
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Milling (3-axis and 5-axis milling centres)Machining | – | 1000 mm × 600 mm × 600 mm | – | Small and large series | Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal |
| Turning (CNC lathes)Machining | – | 4000 mm | – | Small and large series | Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal |
| DrillingMachining | – | – | – | – | Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal |
| SawingMachining | – | – | – | – | Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal |
| GrindingMachining | – | – | – | – | Structural and stainless steels |
| Welding (pulse welding system, TIG)Joining | – | – | – | – | Structural and stainless steels |
| Washing/CleaningSurface | – | – | – | – | – |
| Manufacture of production parts and components for mechanical engineering (contract manufacturing)Machining | – | – | – | Small and large series | Structural and stainless steels, Aluminium, Brass, Copper, Cast iron, Gunmetal |
28 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 3-axis milling centre | POSMILL CE100640 | 2 | X 1000mm x Y 600mm x Z 500mm | – | Steinfeld-Hausen |
| 5-axis milling centre | DMG DMU 75 | 1 | X 1000mm x Y 600mm x Z 600mm | – | Steinfeld-Hausen |
| Milling centre | VOLZ FUS 32 - SERVO | 1 | X 600 Y 300 Z 350 mm | – | Steinfeld-Hausen |
| CNC lathe | TRAUB TND 400 | 1 | Ø 280 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | MICROTURN Challenger 92 HTL | 1 | Ø 300 x 800mm | – | Steinfeld-Hausen |
| CNC lathe | DMG CTX 400 | 1 | Ø 80 x 950 mm | – | Steinfeld-Hausen |
| CNC lathe | DMG CLX 450 | 1 | Ø 310 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | DMG CLX 550 | 1 | Ø 450 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | DMG Ecoturn 510 | 1 | Ø 310 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | ALEX-TECH Viper VT - 30 BLM | 1 | Ø 400 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | MICROTURN Challenger | 1 | Ø 450 x 2000mm | – | Steinfeld-Hausen |
| CNC lathe | MICROCUT TC35160 | 1 | Ø 500 x 4000mm | – | Steinfeld-Hausen |
| CNC lathe | MICROTURN Challenger BNC 446 | 1 | Ø 250 x 1000mm | – | Steinfeld-Hausen |
| CNC lathe | MICROCUT TC26169 | 1 | Ø 700 x 4000mm | – | Steinfeld-Hausen |
| CNC lathe | FAT TUR AFM TUG - 40 | 1 | Ø 1150 x 4000 mm / Ø 160 x 1000 mm | – | Steinfeld-Hausen |
| Radial drilling machine | VOLZ RB5/16 | 1 | Ø 1000mm | – | Steinfeld-Hausen |
| Drilling machine | GILLARDON GB 30 | 1 | – | – | Steinfeld-Hausen |
| Bandsaw | BERG & SCHMID SBS 320 VA | 1 | Ø 200 | – | Steinfeld-Hausen |
| Bandsaw | BAUER SA 320 ZA | 1 | Ø 100 | – | Steinfeld-Hausen |
| Bandsaw | KALTENBACH KBC 280 NA | 1 | Ø 350 | – | Steinfeld-Hausen |
| Bandsaw | KALTENBACH KBC 410 | 1 | Ø 390 | – | Steinfeld-Hausen |
| Bandsaw | KALTENBACH KBC 370 | 1 | Ø 400 | – | Steinfeld-Hausen |
| Bandsaw | BIRLIK Alf 1100 | 1 | Ø 1100 | – | Steinfeld-Hausen |
| Tool grinding machine | GARANT Trowall GMT35 | 1 | – | – | Steinfeld-Hausen |
| Pulse welding system | WECO WF 104 | 1 | – | – | Steinfeld-Hausen |
| TIG welding system | WECO Power Root | 1 | – | – | Steinfeld-Hausen |
| Turntable | OERLIKON | 1 | Ø 500 | – | Steinfeld-Hausen |
| Washing machine | PERO | 1 | – | – | Steinfeld-Hausen |
Additional services
Quality and Certificates
The INHATEC Group is certified by SystemCERT Zertifizierungsges.m.b.H., an accredited certification body, for its quality management system in accordance with ISO 9001:2015. Protective sleeves for metrology and power plant construction are manufactured with TÜV acceptance.
| Evidence | Steinfeld-Hausen |
|---|---|
| ISO 9001 |
History
- 1999
Foundation of Präzisions-Maschinenbau GmbH as a manufacturing company of the INHATEC Group in Steinfeld-Hausen.
