Swiss specialist for custom printed circuit boards, assembly as well as device and apparatus construction from Stansstad.
Polytrona AG
Stansstad (CH)New on Amplifa
About us

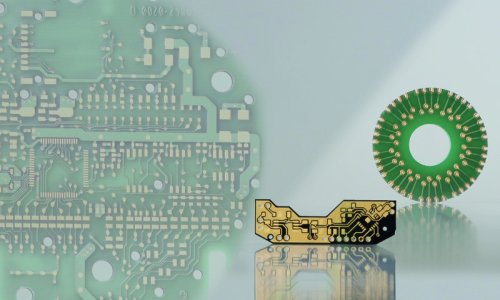

Polytrona AG was founded in 1967 as a manufacturer of electronic products and has been producing in Stansstad in the canton of Nidwalden since 1974. The company manufactures custom single- and double-sided (plated-through) printed circuit boards in-house, assembles them using SMD and conventional technology, and offers device and apparatus construction up to final assembly. In addition, transformers for high-voltage and HF applications are produced. The range of services includes EMC-compliant circuit board design and PCB layout on Altium Designer, digitization from samples, drawings or films, as well as an express service from 24 hours. Base materials are FR4 standard, FR4 high-TG, FR4 halogen-free, polyimide, aluminium and CEM1 with copper layers of 0 to 250 µm. The company delivers its products to EN ISO 9001:2015 to large and small companies in the electronics, medical, automotive and railway industries. Around 40 employees and 7 apprentices work on a large, modern machine fleet.
- Site
- CH-6362 Stansstad
- Processes
- Circuit board layout (EMC-compliant PCB design, schematics, Altium Designer), Single- and double-sided circuit board manufacturing (plated-through), Multilayer circuit boards (trading), Circuit board assembly (SMD and conventional, prototypes in-house), Device and apparatus construction up to final assembly, Transformers for high-voltage and HF applications, Electrical testing (100 % flying probe), Back drilling and milling, countersinking, chamfering, press-fit technology, plated-through slots,
- Materials
- FR4 standard, FR4 high-TG, FR4 halogen-free, Polyimide, Aluminium, CEM1, Copper (copper layers 0 - 250 µm), Electroless nickel/gold (surface)
- Certificates
- EN ISO 9001:2015, RoHS (2015/863/EU)
- Founded
- 1967
- Employees
- 40
- Industries
- Electronics industry, Medical industry, Automotive industry, Railway industry
- 01
Circuit board layout (EMC, Altium Designer)
- 02
Digitization from sample, drawing or film
- 03

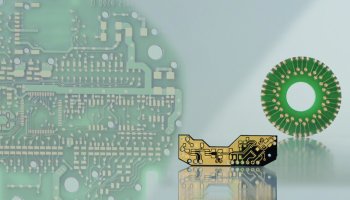

Circuit board manufacturing (1-/2-sided, plated-through)
- 04

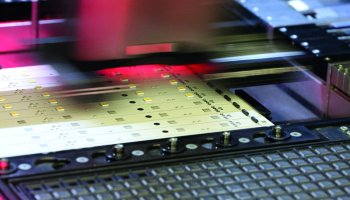

Assembly (SMD and conventional)
- 05

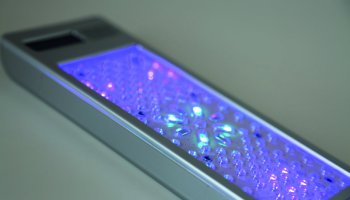

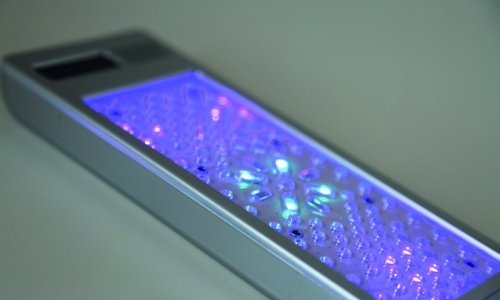

Device and apparatus construction
- 06
Final assembly
- 07
100 % electrical test (flying probe)
- 08
Kanban delivery
Locations
Stansstad
CHProduction and headquarters
- Lot size
- Prototypes up to 10 pieces, express service from 24 h
- Materials
- FR4 standard/high-TG/halogen-free, polyimide, aluminium, CEM1, copper
- Altium Designer (PCB design software)
- Flying probe test system
- Machine fleet for circuit board production and assembly
Parts

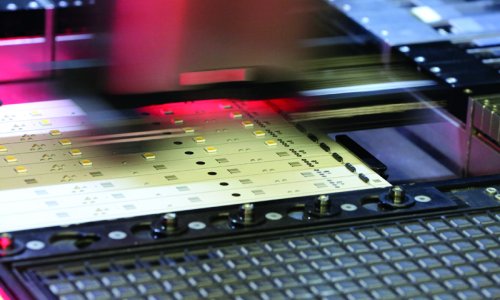

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Circuit board layout (EMC-compliant PCB design, schematics, Altium Designer)Engineering | – | – | – | Prototypes up to 10 pieces | – |
| Single- and double-sided circuit board manufacturing (plated-through)Surface | Trace width/spacing >= 100 µm; smallest | approx. 1000 mm × approx. 450 mm | – | – | FR4 standard, FR4 high-TG, FR4 halogen-free, Polyimide, Aluminium, CEM1 |
| Multilayer circuit boards (trading)Surface | – | – | – | – | FR4 standard, FR4 high-TG, FR4 halogen-free, Polyimide, Aluminium, CEM1 |
| Circuit board assembly (SMD and conventional, prototypes in-house)Assembly | – | – | – | – | – |
| Device and apparatus construction up to final assemblyAssembly | – | – | – | – | – |
| Transformers for high-voltage and HF applicationsAssembly | – | – | – | – | – |
| Electrical testing (100 % flying probe)Testing | – | – | – | – | – |
| Back drilling and milling, countersinking, chamfering, press-fit technology, plated-through slots,Surface | – | – | – | – | – |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Altium Designer (PCB design software) | Altium | – | – | – | Stansstad |
| Flying probe test system (electrical testing) | – | – | – | – | Stansstad |
Additional services
Quality
All products are 100 % electrically tested (flying probe) and only shipped after successful and complete testing. Production is carried out in accordance with EN ISO 9001:2015 and RoHS-compliant (Directive 2015/863/EU).
| Evidence | Stansstad |
|---|---|
| EN ISO 9001:2015 | |
| RoHS (2015/863/EU) |
History
- 1967
Founded as a manufacturer of electronic products.
- 1974
Relocation to the current production site in Stansstad, canton of Nidwalden.
