Contract manufacturing to drawing: CNC milling, CNC turning, gear cutting and grinding for mechanical engineering.
Präzisionstechnik Hilter GmbH
Hilter (49176)New on Amplifa
About Präzisionstechnik Hilter
Präzisionstechnik Hilter GmbH is a contract manufacturer of precision machined parts produced to drawing. Its service portfolio includes CNC milling on horizontal, vertical, gantry and bed-type milling machines including 5-axis machining, CNC turning on horizontal and vertical lathes, the production of external and internal gears in the module range up to 20, precision jig boring as well as surface and cylindrical grinding. The machine fleet ranges from compact universal milling machines to gantry milling machines with coupleable tables of 4.000 x 2.500 mm and horizontal machining centres with work areas up to 2.800 x 1.800 x 1.800 mm; turning lengths up to 2.000 mm are possible. Customers come primarily from mechanical engineering, the supply industry and precision mechanics. The company is located in Hilter am Teutoburger Wald in Lower Saxony and, as a contract manufacturer, produces exclusively to customer order. The management is held by Claudia Klotzbach; the GmbH is registered with the district court of Osnabrück.
- Site
- Hilter
- Processes
- CNC milling (horizontal, gantry, bed-type and universal milling machines), 5-axis milling (orthogonal milling head, swivel rotary table), CNC turning (horizontal and vertical lathes), CNC jig boring (precision jig boring machines), Gear manufacturing (hobbing/shaping, internal and external gears, module up to 20), Surface grinding, Cylindrical grinding (max. diameter 1.000 mm, length 150 mm), CNC milling
- Materials
- CNC Milling, 5-Axis Milling, CNC Turning, Gear Manufacturing, Precision Jig Boring, Surface and Cylindrical Grinding
- Industries
- Mechanical engineering, Supply industry, Precision mechanics
- 01
Order intake and quotation based on drawing
- 02
Work preparation and production
- 03
CNC milling (horizontal, vertical, gantry and universal milling machines)
- 04
CNC turning (horizontal and vertical lathes)
- 05
Gear manufacturing (hobbing and shaping)
- 06
Jig boring
- 07
Surface and cylindrical grinding
- 08
Inspection and shipping ex works
Materials and Processes
CNC Milling
Milling of components on horizontal, vertical, gantry, bed-type and universal milling machines up to table sizes of 4.000 x 2.500 mm.
5-Axis Milling
Simultaneous five-axis machining with orthogonal milling head and swivel rotary table for complex geometries.
CNC Turning
Horizontal and vertical turning with turning diameters up to 700 mm and turning lengths up to 2.000 mm.
Gear Manufacturing
Hobbing and shaping of external and internal gears up to module 20 and diameters up to 1.600 mm.
Precision Jig Boring
Machining of housings and fitting bores on Dixi jig boring machines with machining lengths up to 2.400 mm.
Surface and Cylindrical Grinding
Surface grinding up to 500 x 200 x 150 mm and cylindrical grinding up to diameter 1.000 mm to maintain surface finish and dimensional accuracy.
Locations
Hilter
DEHeadquarters and production
- DMG DMC 65 H (horizontal machining centre)
- DMG DMC 70 H (horizontal machining centre)
- Burkhardt+Weber MC 120 HV (horizontal machining centre, X 2.800 mm)
- Hüller Hille NBH 230 (horizontal machining centre)
- Heller MCS H250 (horizontal machining centre)
- Gantry milling machines Johnford, Forest Line, Unisign, Dörries Scharmann (coupleable tables 4.000 x 2.500 mm)
- Starrag ZT 1000 (gantry milling machine, 5-axis)
- Dixi TPA 280/350/410 (precision jig boring machines)
- Pegard boring machines (X 1.600 mm)
- Hermle C 600 U, Maho 800 E (universal milling machines)
- Stama MC 326, MC 531/s; Hurco BMC 40AP; OKK PCV 40/50 (vertical machining centres)
- Gildemeister CTX 400/510, Challenger BNC 2200, Hardinge GS-200 MSY, Index GFG 65/350, Okuma & Howa HTC 40 (CNC lathes)
- Gildemeister CTV 160/250/400, Emag VL3, Index GU 1500, Doosan S31 ONM (vertical lathes)
- Liebherr LC 300, Pfauter P 630/PE 1600, Hurth WF 300, Lorenz SN 4/SN 5, Modul ZWST 1000, Stanko SB 161 (gear cutting machines)
- Okamoto PSG 52 UDX (surface grinding machine)
- Ribon RUR 1000 (cylindrical grinding machine)

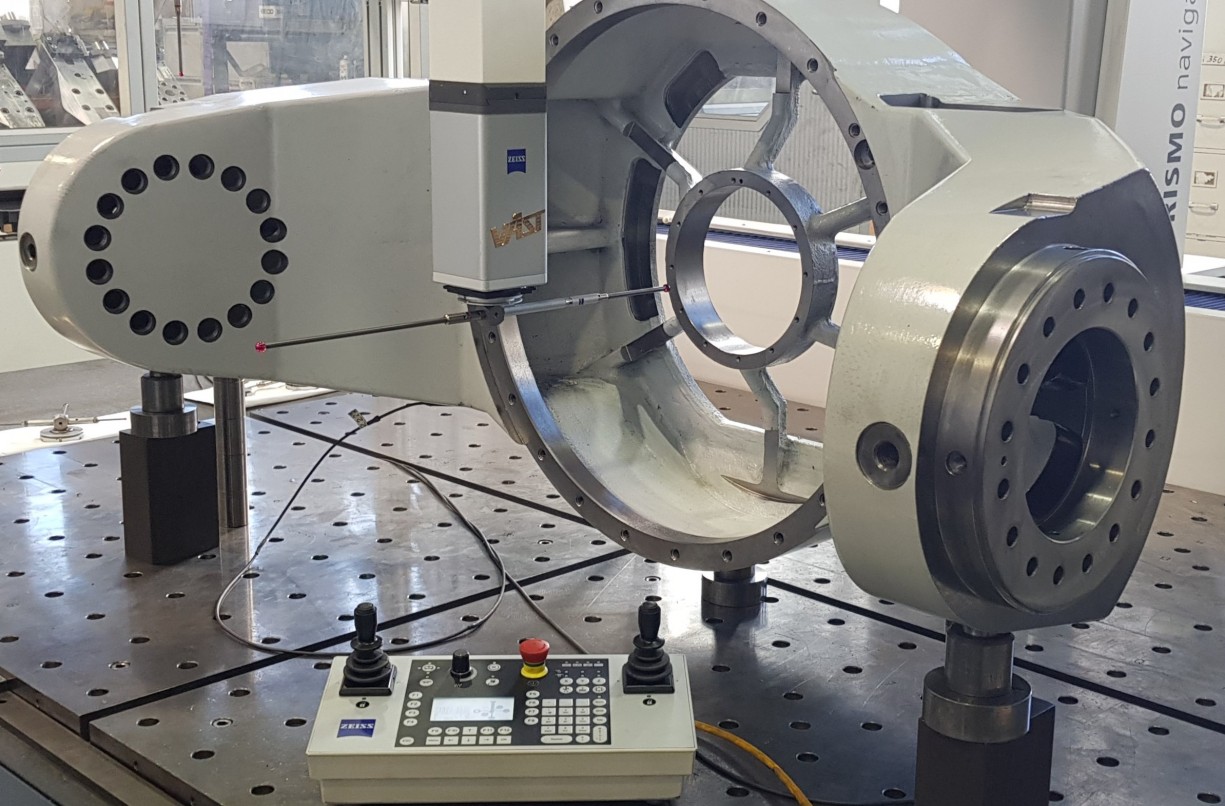

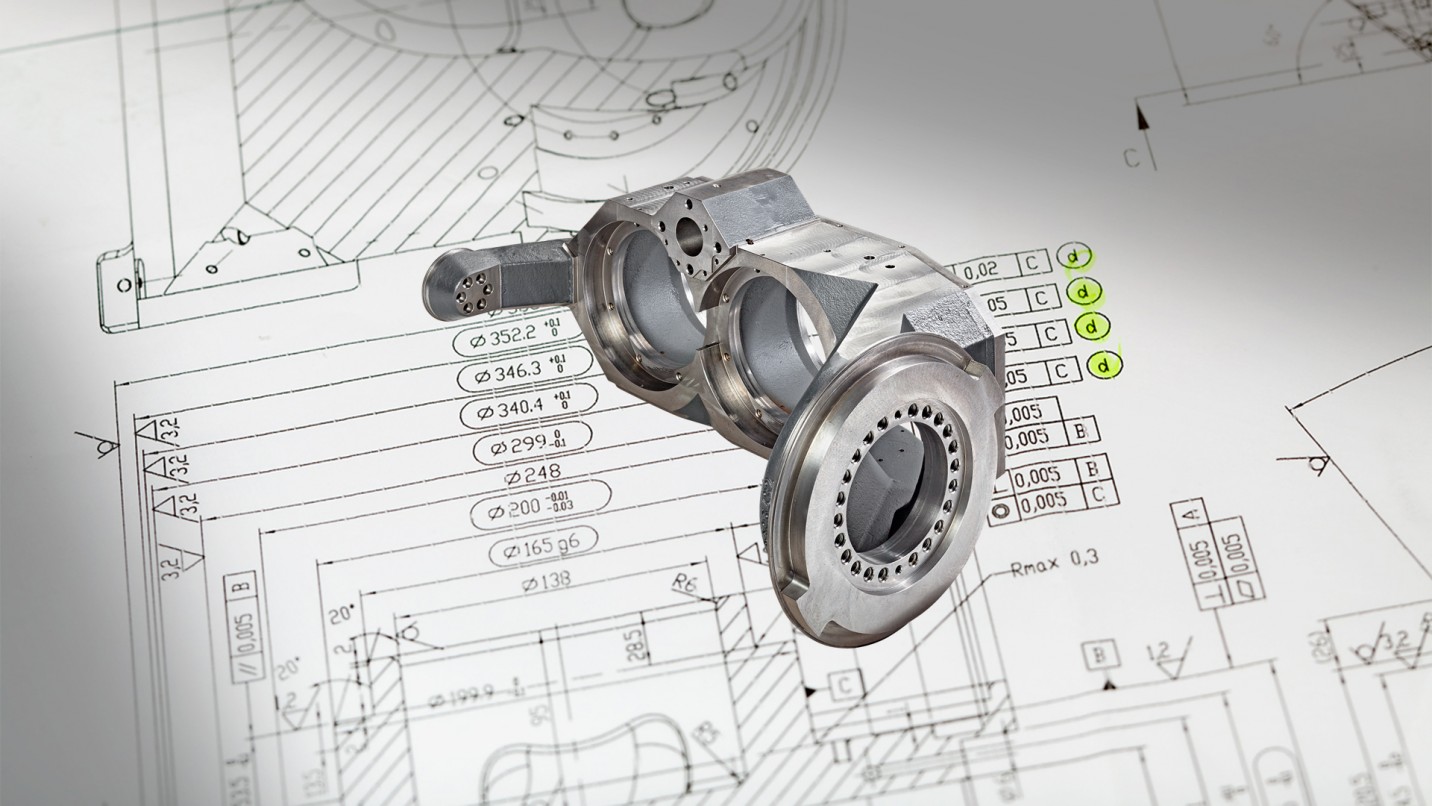

Components

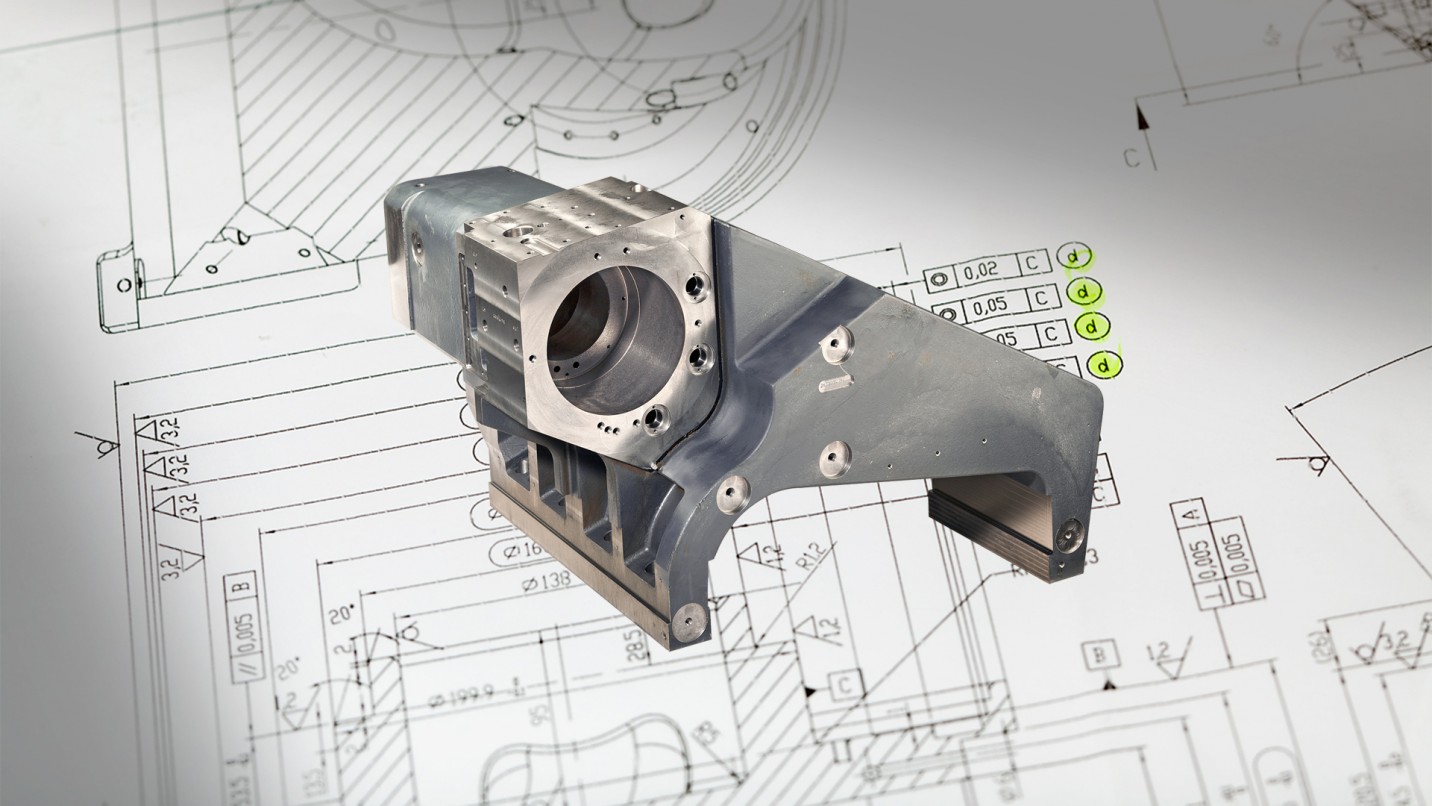

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC milling (horizontal, gantry, bed-type and universal milling machines)Machining | – | 4000 mm (pallet size 1200 x 1000 mm, | – | – | – |
| 5-axis milling (orthogonal milling head, swivel rotary table)Machining | – | 1250 mm (pallet size 1.000 x 1.250) | – | – | – |
| CNC turning (horizontal and vertical lathes)Machining | – | 2.000 mm (Challenger BNC 2200) | – | – | – |
| CNC jig boring (precision jig boring machines)Machining | – | 2.400 mm | – | – | – |
| Gear manufacturing (hobbing/shaping, internal and external gears, module up to 20)Machining | – | 1.600 mm (Pfauter PE 1600) | – | – | – |
| Surface grindingSurface | – | 500 mm × 200 mm × 150 mm | – | – | – |
| Cylindrical grinding (max. diameter 1.000 mm, length 150 mm)Surface | – | 150 mm × 1.000 mm | – | – | – |
61 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC horizontal machining centre | DMG DMC 65 H | 1 | X 700 / Y 700 / Z 700 mm | – | Hilter |
| CNC horizontal machining centre | DMG DMC 70 H | 1 | X 700 / Y 800 / Z 800 mm | – | Hilter |
| Horizontal machining centre | Burkhardt+Weber MC 120 HV | 1 | X 2.800 / Y 1.800 / Z 1.800 mm | – | Hilter |
| CNC horizontal machining centre | Hüller Hille NBH 230 | 1 | – | – | Hilter |
| CNC horizontal machining centre | Heller MCS H250 | 1 | – | – | Hilter |
| Gantry milling machine | Johnford | 1 | X 2.050 / Y 1.300 mm | – | Hilter |
| Gantry milling machine | Forest Line | 1 | X 3.000 / Y 1.250 / Z 800 mm (coupleable tables 4.000 x 2.500 mm) | – | Hilter |
| Gantry milling machine | Unisign | 1 | X 1.400 / Y 1.200 / Z 1.000 mm | – | Hilter |
| Gantry milling machine | Dörries Scharmann | 1 | X 3.000 / Y 1.250 / Z 800 mm | – | Hilter |
| Gantry milling machine | Matra | 1 | X 1.400 / Y 1.200 / Z 1.000 mm | – | Hilter |
| Bed-type milling machine | Heckert CWK 1250 | 1 | X 1.600 mm | – | Hilter |
| Bed-type milling machine | Heckert CWK 800 | 1 | X 1.600 mm | – | Hilter |
| Bed-type milling machine | Heckert CWK 500 | 2 | X 1.200 mm | – | Hilter |
| Bed-type milling machine | Heckert CWK 400 | 1 | X 800 mm | – | Hilter |
| Gantry milling machine | Starrag ZT 1000 | 1 | X 875 / Y 1.400 mm | – | Hilter |
| Bed-type milling machine | Lagun | 1 | X 950 / Y 800 mm | – | Hilter |
| Bed-type milling machine | Dörries Scharmann | 1 | X 1.500 / Y 7.000 mm | – | Hilter |
| Precision jig boring machine | Dixi TPA 410 | 2 | – | – | Hilter |
| Precision jig boring machine | Dixi TPA 350 | 1 | – | – | Hilter |
| Precision jig boring machine | Dixi TPA 280 | 1 | X 2.000 / Y 1.600 / Z 1.600 mm | – | Hilter |
| CNC universal milling machine | Hermle C 600 U | 1 | X 700 / Y 500 / Z 500 mm | – | Hilter |
| CNC universal milling machine | Maho 800 E | 1 | X 1.200 / Y 600 mm | – | Hilter |
| CNC universal milling machine | Reiden BFR-1 | 1 | X 1.100 / Y 700 / Z 400 mm | – | Hilter |
| CNC vertical machining centre | Stama MC 326 | 1 | X 800 / Y 400 / Z 400 mm | – | Hilter |
| CNC universal milling machine | Maho 600 C | 1 | X 400 / Y 400 / Z 600 mm | – | Hilter |
| CNC universal milling machine | Maho 700 S | 1 | X 530 / Y 400 / Z 400 mm | – | Hilter |
| CNC vertical machining centre | Sigma Mission 3P | 1 | X 1.000 / Y 600 / Z 400 mm | – | Hilter |
| CNC vertical machining centre | Hurco BMC 40AP | 1 | X 1.020 / Y 400 / Z 685 mm | – | Hilter |
| CNC vertical machining centre | Stama MC 531/s | 1 | X 1.600 / Y 400 mm | – | Hilter |
| CNC vertical machining centre | OKK PCV 40 | 1 | – | – | Hilter |
| CNC vertical machining centre | OKK PCV 50 | 1 | – | – | Hilter |
| CNC vertical machining centre | Sigma Mission 51 | 1 | X 1.000 / Y 600 / Z 400 mm | – | Hilter |
| Boring machine | Pegard | 2 | X 1.600 mm | – | Hilter |
| CNC horizontal lathe | Challenger BNC 2200 | 1 | Turning Ø 350 mm, length 2.000 mm | – | Hilter |
| CNC horizontal lathe | Hardinge GS-200 MSY | 1 | Turning Ø 300 / 315 mm | – | Hilter |
| CNC horizontal lathe | Index GFG 65/350 | 1 | Turning Ø 380 mm | – | Hilter |
| CNC horizontal lathe | Okuma & Howa HTC 40 | 1 | Turning Ø 310 mm, length 600 mm | – | Hilter |
| CNC horizontal lathe | Gildemeister CTX 510 | 2 | Turning Ø 400 mm, length 1.000 mm | – | Hilter |
| CNC horizontal lathe | Gildemeister CTX 400 | 2 | Turning Ø 250 mm, length 600 mm | – | Hilter |
| CNC horizontal lathe | Gildemeister CTX 320 | 2 | Turning Ø 150/200 mm | – | Hilter |
| CNC horizontal lathe | Tongtai | 2 | Turning Ø up to 450 mm | – | Hilter |
| CNC vertical lathe | Hankook VTC 85 R | 1 | Turning Ø 700 mm | – | Hilter |
| CNC vertical lathe | Gildemeister CTV 400 | 2 | Turning Ø 380 mm | – | Hilter |
| CNC vertical lathe | Gildemeister CTV 250 | 3 | Turning Ø 315 mm | – | Hilter |
| CNC vertical lathe | Index GFG 450 | 1 | Turning Ø 380 mm | – | Hilter |
| CNC vertical lathe | Gildemeister CTV 160 | 2 | – | – | Hilter |
| CNC vertical lathe | Emag VL3 | 2 | – | – | Hilter |
| CNC vertical lathe | Okuma & Howa VTM-120 YB | 1 | – | – | Hilter |
| CNC vertical lathe | Index GU 1500 | 2 | – | – | Hilter |
| Vertical lathe | Doosan S31 ONM | 2 | – | – | Hilter |
| Gear cutting machine (gear hobbing machine) | Liebherr LC 300 | 2 | Module 8, max. diameter 500 mm | – | Hilter |
| Gear cutting machine | Pfauter P 630 | 2 | Module 8, max. diameter 630 mm | – | Hilter |
| Gear cutting machine (internal gearing) | Hurth WF 300 | 2 | Module 6, CNC | – | Hilter |
| Gear cutting machine | Pfauter PE 1600 | 1 | Module 10, max. diameter 1.600 mm, CNC | – | Hilter |
| Gear cutting machine | Lorenz SN 5 | 1 | Module 6, max. diameter 500 mm | – | Hilter |
| Gear cutting machine | Lorenz SN 4 | 1 | Module 4, max. diameter 200 mm | – | Hilter |
| Gear cutting machine | TOS OHA 50 | 1 | Module 8, max. diameter 500 mm | – | Hilter |
| Gear cutting machine | Modul ZWST 1000 | 1 | Module 12, max. diameter 1.000 mm | – | Hilter |
| Gear cutting machine | Stanko SB 161 | 1 | Module 20, max. diameter 1.250 mm | – | Hilter |
| Surface grinding machine | Okamoto PSG 52 UDX | 1 | X 500 / Y 200 / Z 150 mm, magnetic chuck | – | Hilter |
| Cylindrical grinding machine | Ribon RUR 1000 | 1 | max. diameter 1.000 mm, length 150 mm | – | Hilter |
