VHM precision tools for high-performance machining: custom tools to drawing, regrinding and coating service.
Präzisionswerkzeuge Schmidt e.K.
Zella-Mehlis (DE)New on Amplifa
About TRIPLEX-Q

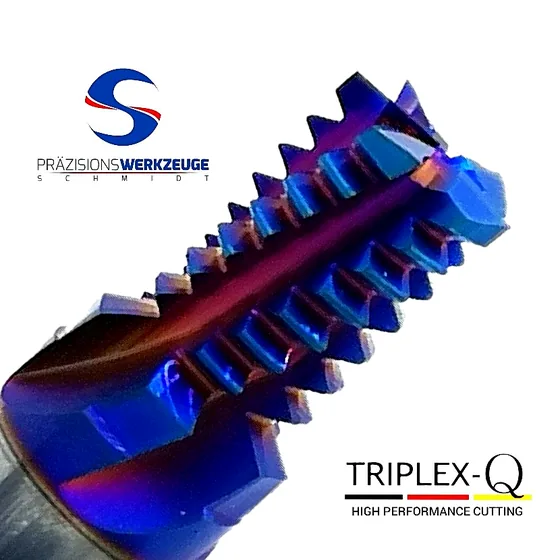

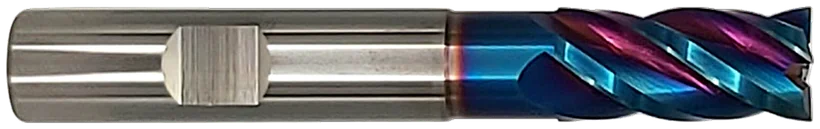

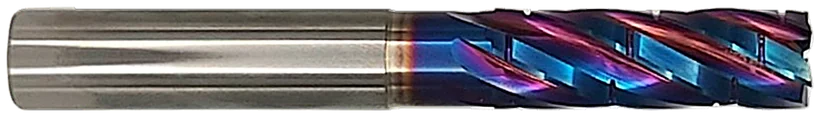

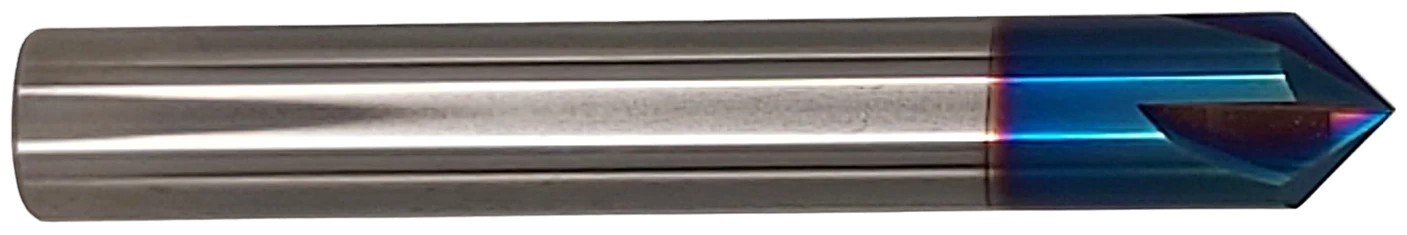

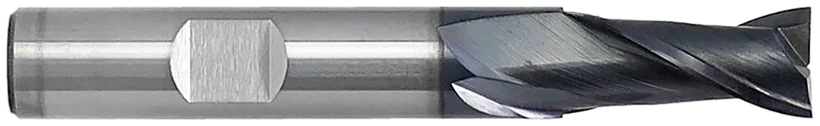

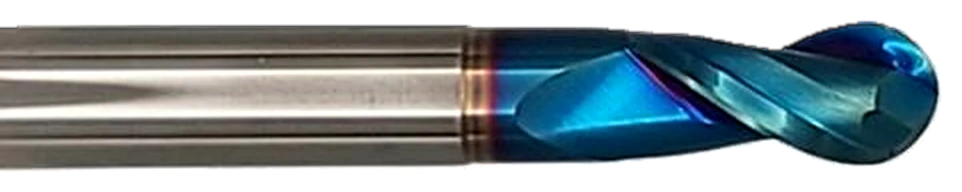

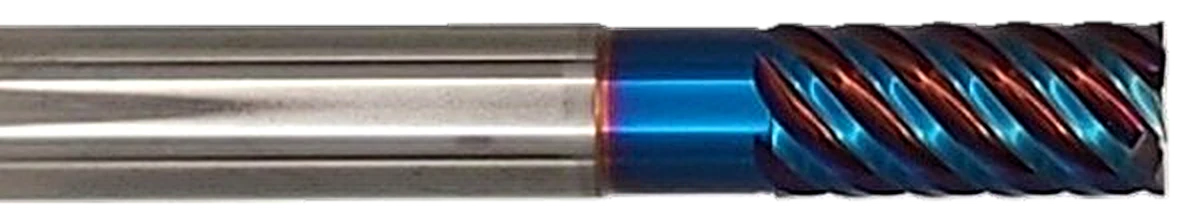

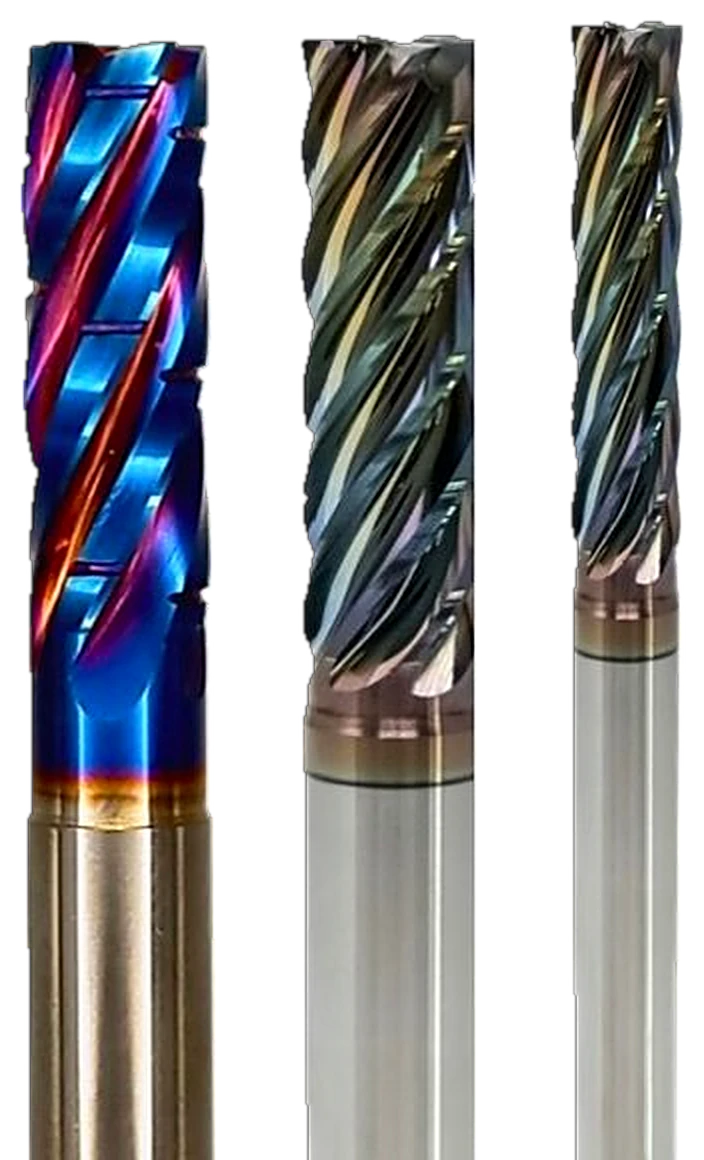

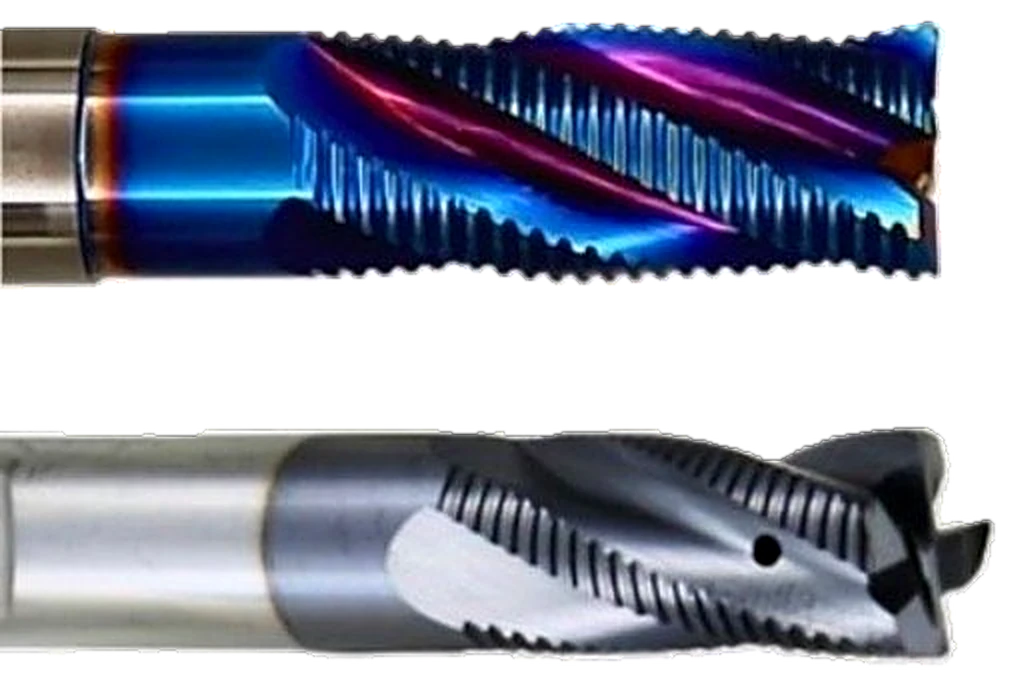

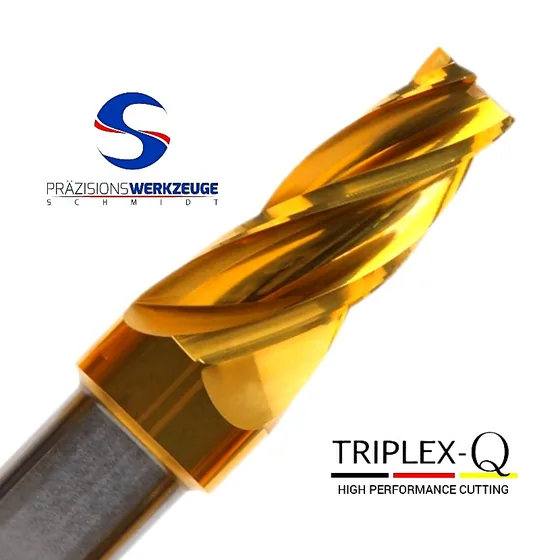

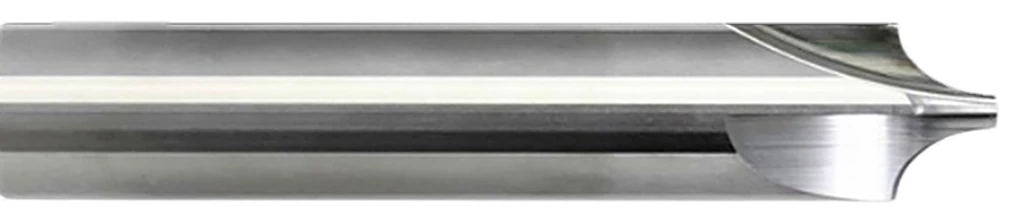

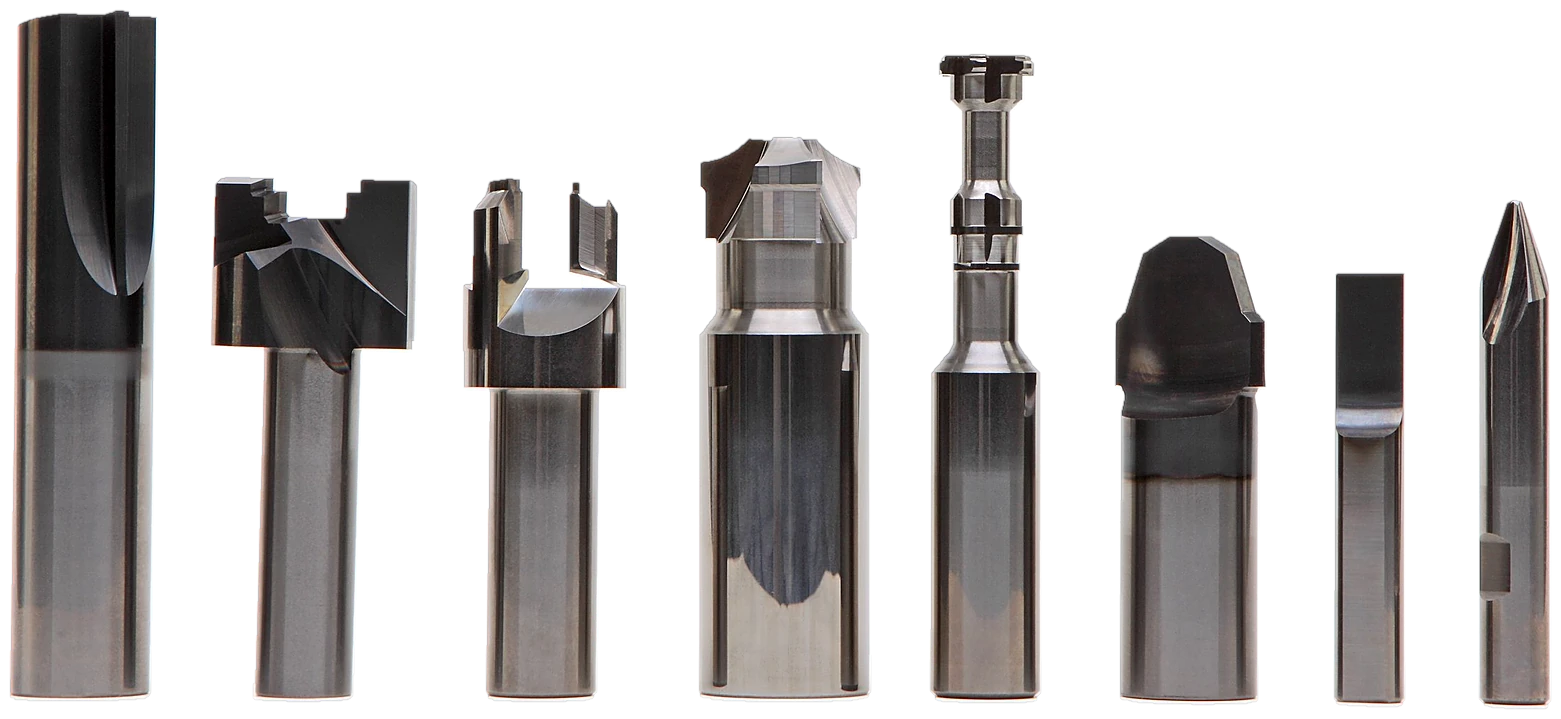

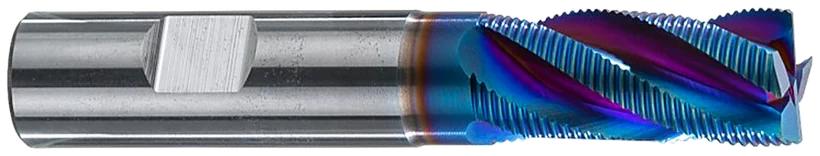

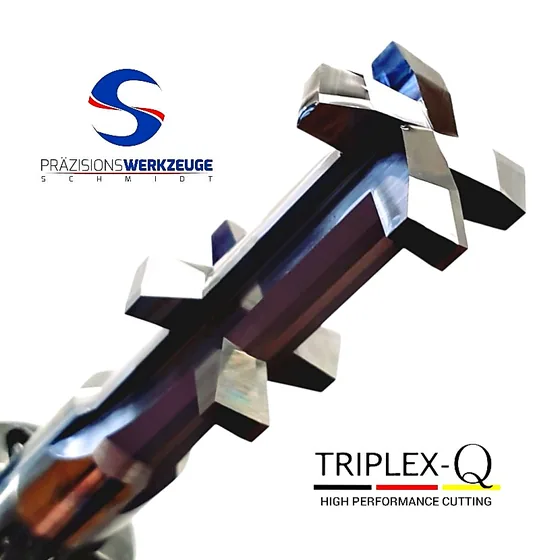

Präzisionswerkzeuge Schmidt e.K. manufactures solid carbide tools for high-performance machining at its site in Zella-Mehlis, Thuringia, under the TRIPLEX-Q brand. The range includes HPC and TPC milling cutters, roughing and multi-flute cutters, aluminium cutters, full-radius and quarter-radius cutters, end mills as well as VHM high-performance drills from Ø 1 to 20 mm, complemented by NC deburring tools and special dimensions. The tools are made from fine-grain and ultrafine-grain carbide and are coated with coatings such as nACo blue, TiXCo, TiAlN, DLC and multipurpose. In addition to the standard range, the company designs and manufactures custom VHM tools to drawing – from profile cutters and step drills to T-slot and thread milling cutters – as well as modified semi-standard tools (TRIPLEX-Q special). A regrinding and coating service as well as advice on tool selection and cutting data round off the offering. Customers are machining companies, machine builders and CNC manufacturers in Germany and Switzerland; standard tools are shipped from stock, usually within 1–3 working days.
- Site
- Zella-Mehlis
- Processes
- Manufacture of VHM precision tools (HPC/TPC milling cutters, aluminium cutters, high-performance, Design and manufacture of custom VHM tools to drawing (profile cutters, step drills,, Semi-standard tool modification (number of flutes, flute length, neck relief grinding,, Regrinding service for VHM tools, Coating service (recoating after regrinding; coatings: nACo blue, TiXCo, TiAlN,, Design and manufacture of custom VHM tools to drawing, Semi-standard tools (TRIPLEX-Q special: modification of standard lines), Regrinding service
- Materials
- Solid carbide (VHM), fine grain with 10% cobalt, Ultrafine-grain VHM, Steel (tool/high-strength steels, machined materials), Stainless steel, Aluminium and aluminium alloys, Titanium and nickel-based alloys, Cast iron (GG/GGG/GT), Brass (free-machining and ductile)
- Industries
- Machining companies, Mechanical engineering, CNC manufacturing, Tool and die making, Metalworking
- 01
Advice on tool selection and cutting data
- 02
Tool design based on drawing or workpiece
- 03
Precision grinding from solid carbide (VHM)
- 04
Coating (e.g. nACo blue, TiXCo, TiAlN, DLC)
- 05
Regrinding and recoating service
- 06
Insured shipping or self-collection

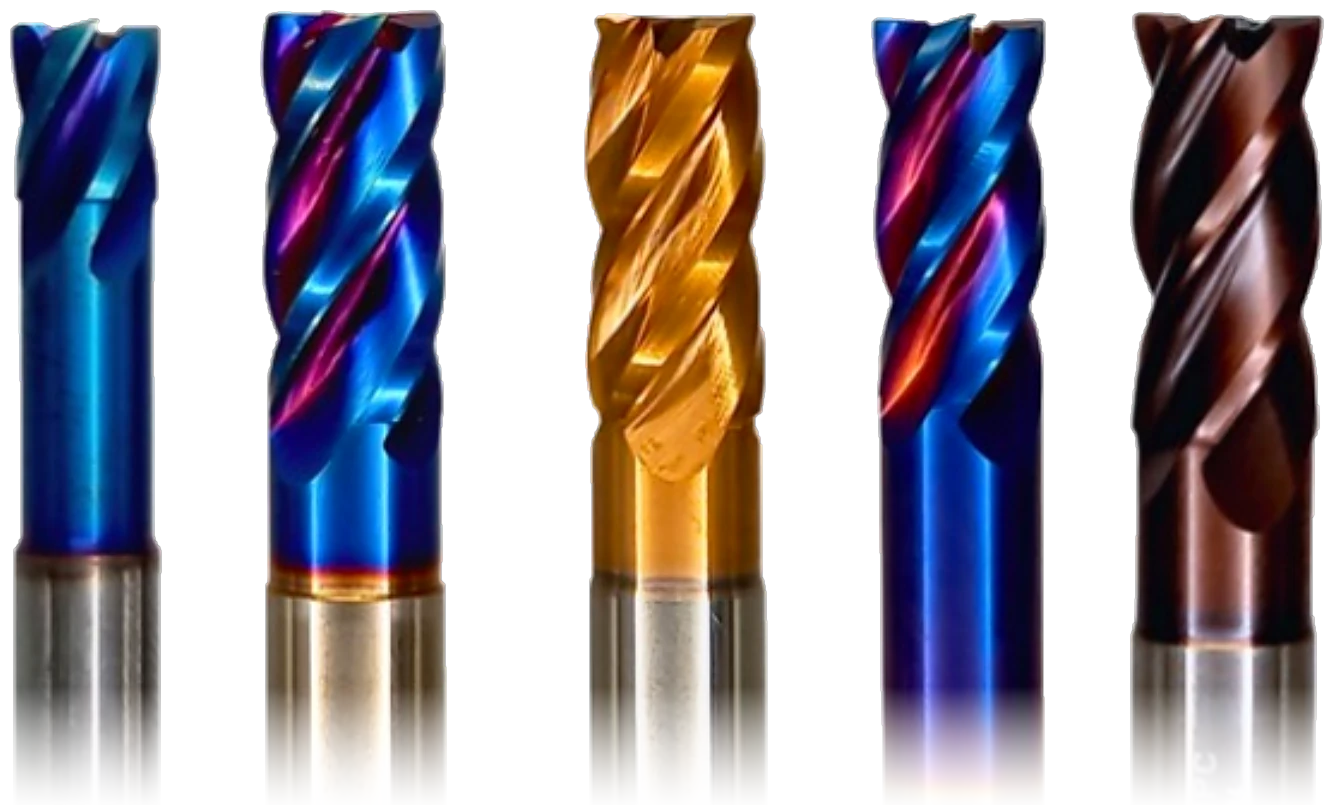

Materials & Coatings
Solid carbide, fine grain with 10% cobalt
Base material of the TRIPLEX-Q milling cutter lines, e.g. for steel and cast iron machining.
Ultrafine-grain solid carbide

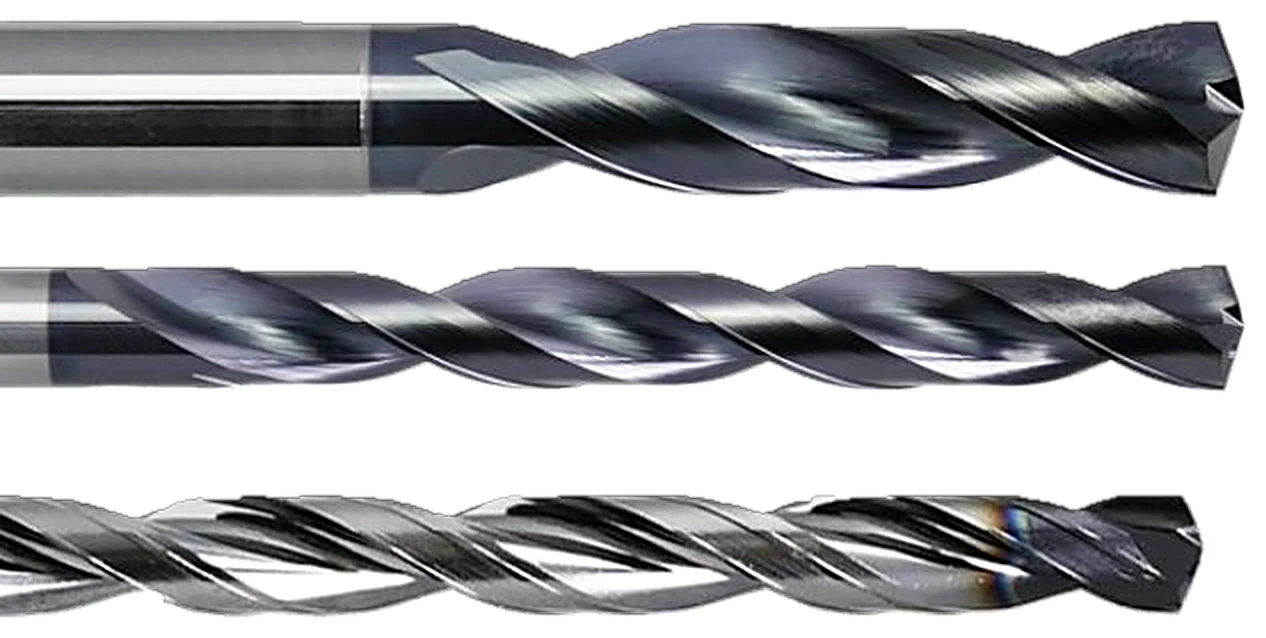

Material of the VHM high-performance drills for high drilling performance and tool life.

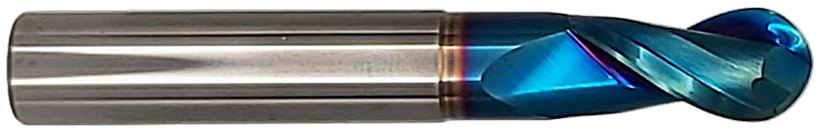

nACo blue (nanocomposite)
Coating of the steel lines for steel, stainless steel and cast iron grades.

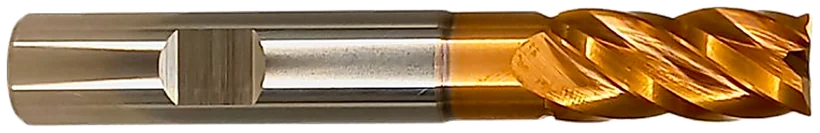

TiXCo
Coating of the inox red HPC milling cutter programme for stainless steel machining.
TiAlN
Coating of the VHM high-performance drills for universal use.
DLC (Diamond-Like Carbon)

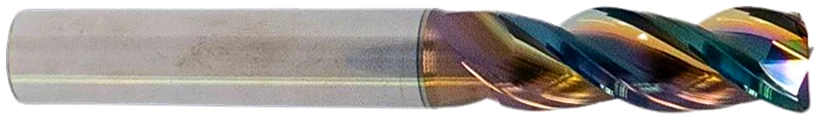

Coating of the aluminium cutters (ALU series) for long tool life and polished surfaces.
multipurpose

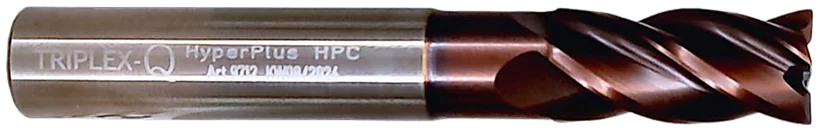

Coating of the HyperPlus HPC for difficult-to-machine materials up to approx. 60 HRC.
Site
Zella-Mehlis
DEHeadquarters, manufacturing, sales, self-collection
- Materials
- Solid carbide (VHM)
Tools
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacture of VHM precision tools (HPC/TPC milling cutters, aluminium cutters, high-performanceMachining | – | – | – | – | Solid carbide (VHM), Ultrafine-grain VHM |
| Design and manufacture of custom VHM tools to drawing (profile cutters, step drills,Engineering | – | – | – | – | Solid carbide (VHM) |
| Semi-standard tool modification (number of flutes, flute length, neck relief grinding,Engineering | – | – | – | – | Solid carbide (VHM) |
| Regrinding service for VHM toolsMachining | – | – | – | – | Solid carbide (VHM) |
| Coating service (recoating after regrinding; coatings: nACo blue, TiXCo, TiAlN,Surface | – | – | – | – | Solid carbide (VHM) |
Additional services
Reference customers
