Planning and construction of plants for the production of Bio-LNG and bio-based carbon dioxide from biogas
Pro CryoMechanics Germany GmbH
New on Amplifa
About Pro CryoMechanics Germany

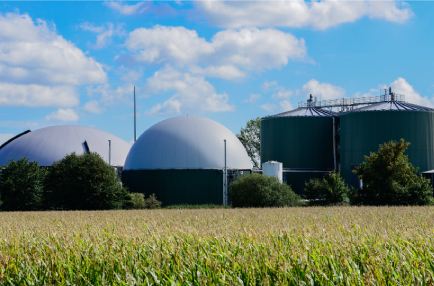

Pro CryoMechanics Germany GmbH (PRO CMG) plans and builds plants for the liquefaction of biomethane (Bio-LNG) and for the recovery of food-grade bio-based carbon dioxide. The company combines the product gas of existing biogas plants with cryogenic liquefaction technology from industrial gas production. In the process engineering flow, raw biogas is first compressed, cooled, dried and purified; subsequently, methane and CO2 are deeply cooled in a coldbox, separated and liquefied. Key components are turbo-expanders with speeds of up to 300,000 rpm, a rectification column for separating the liquid products, as well as refrigeration machines and storage tanks on site. The plant concepts envisage decentralized production at the sites of existing biogas plants, with short transport routes by tanker truck to the customers. Initially, the products are purchased by the transport sector as a replacement for diesel fuel, the beverage and food industry, greenhouse operators and e-fuel production.
- Processes
- Process plant engineering (Bio-LNG/Bio-CO2 plants), Cryogenic gas liquefaction (coldbox: separation, purification and liquefaction of methane and CO2), Biogas upgrading (compression, cooling, drying, purification of the raw biogas), Planning and construction of plants for the liquefaction of biomethane (Bio-LNG), Bio-CO2 production (carbon dioxide in food-grade quality), Process engineering flow with coldbox, turbo-expander and rectification column
- Materials
- Bio-methane (CH4), Bio-based carbon dioxide (CO2), Liquefied biomethane (Bio-LNG), Bio-based carbon dioxide, Coldbox, Turbo-expander, Rectification column
- Industries
- Transport/Logistics (heavy-duty transport, diesel substitute), Biogas/energy industry, Beverage and food industry, Greenhouse/agriculture, e-fuels
- 01
Biogas upgrading: compression, cooling, drying and purification of the
- 02
Cryogenic separation of methane and CO2 in the coldbox
- 03
Cold generation and liquefaction by means of turbo-expander and refrigeration
- 04
Separation of the liquid products in the rectification column
- 05
Storage in storage tanks
- 06
Distribution by tanker truck to customers in the region

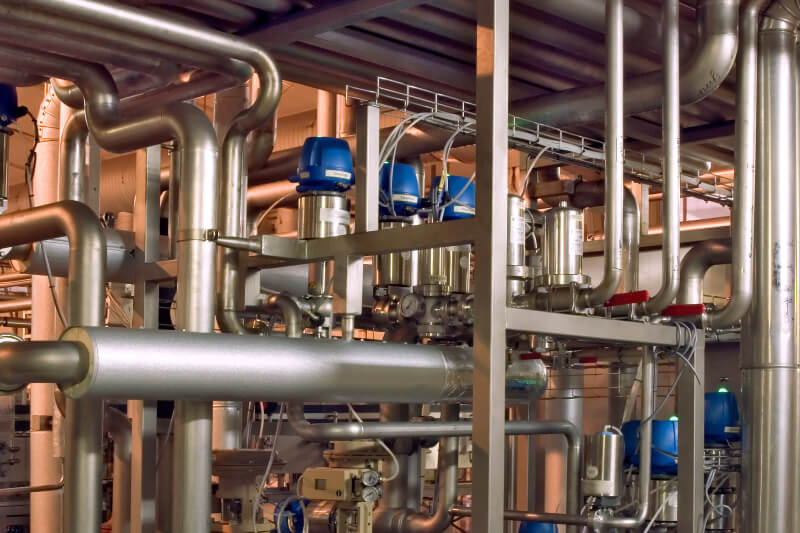

Processes and Plant Technology

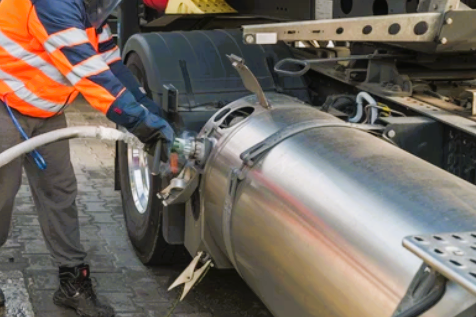

Liquefied biomethane (Bio-LNG)
Produced decentrally from biogas and used as a substitute for fossil LNG and diesel fuel in heavy-duty transport.
Bio-based carbon dioxide
Produced in food-grade quality and used in the beverage and food industry, as dry ice, in greenhouses and for e-fuel production.
Coldbox
Integrated cryogenic process for the separation, purification and liquefaction of methane and CO2.

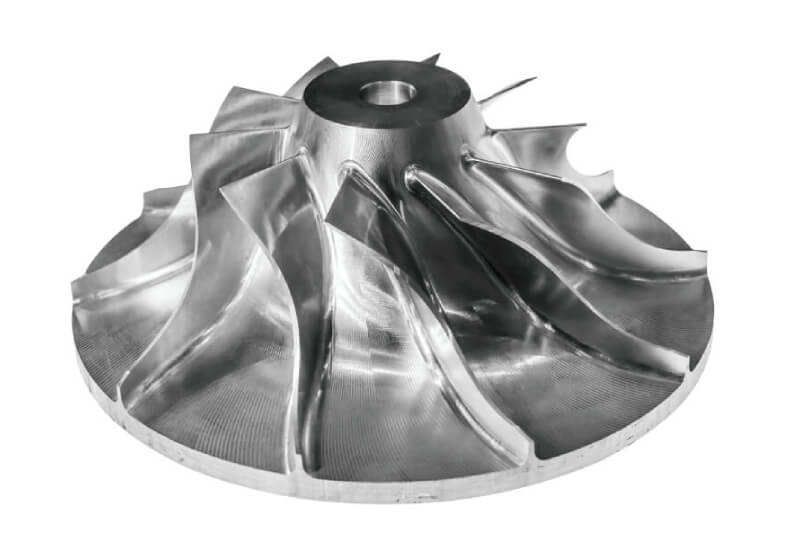

Turbo-expander
Generate cold in the process at speeds of up to 300,000 rpm.
Rectification column
Used for separating the liquefied end products methane and carbon dioxide.
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Process plant engineering (Bio-LNG/Bio-CO2 plants)Engineering | – | – | – | – | – |
| Cryogenic gas liquefaction (coldbox: separation, purification and liquefaction of methane and CO2)Engineering | – | – | – | – | Biogas, Bio-methane, Bio-CO2 |
| Biogas upgrading (compression, cooling, drying, purification of the raw biogas)Engineering | – | – | – | – | Raw biogas |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Turbo-expander (up to 300,000 rpm) | – | – | – | – | – |
| Coldbox | – | – | – | – | – |
| Rectification column | – | – | – | – | – |
| Refrigeration machine | – | – | – | – | – |
| Storage tank | – | – | – | – | – |
Additional services
