System supplier for sheet metal and tube assemblies, machine enclosures, frames and assembly cells for mechanical engineering
ProDEKon Blechtechnik GmbH & Co. KG
GüterslohNew on Amplifa
About ProDEKon

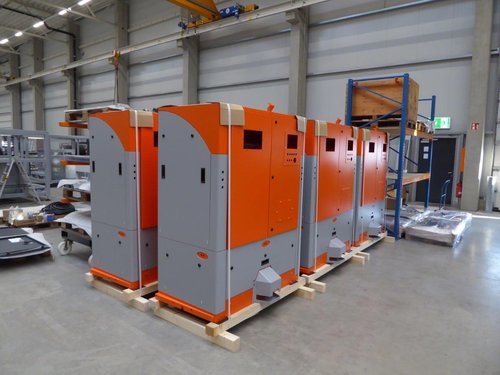

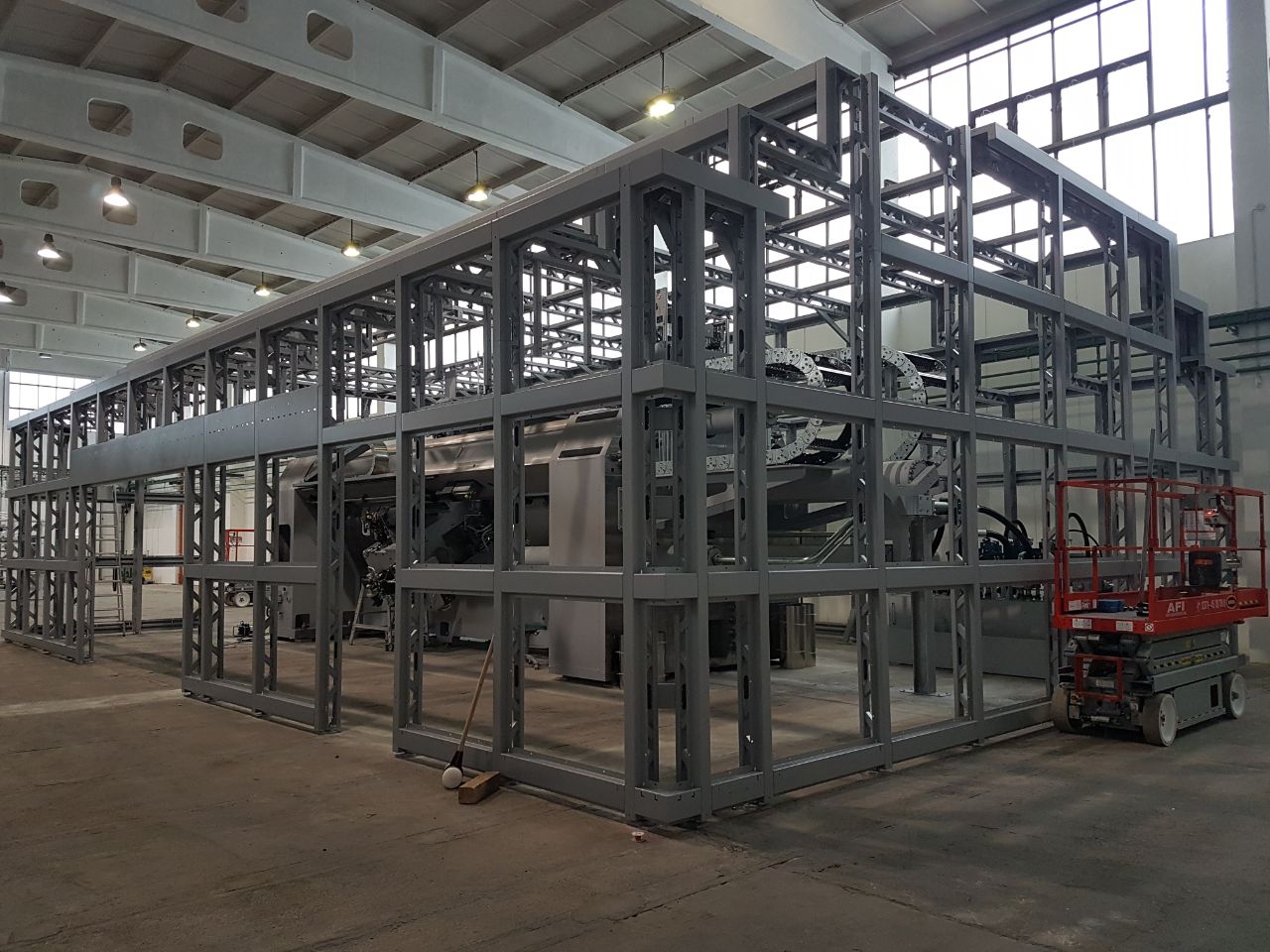

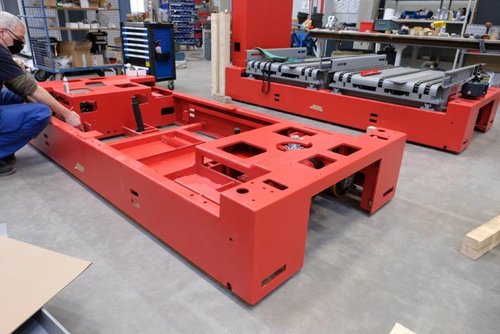

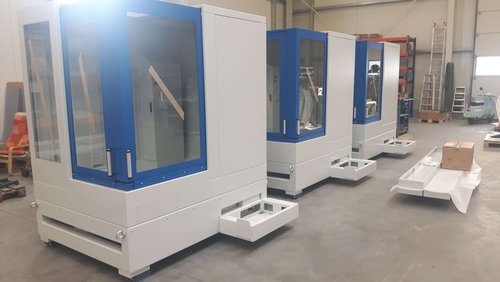

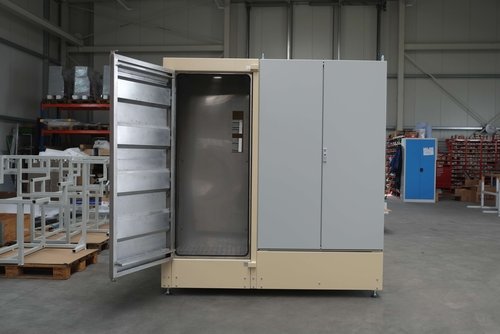

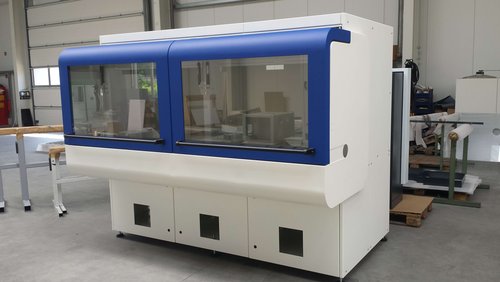

ProDEKon Blechtechnik GmbH & Co. KG has been based in Gütersloh since 2003 as a system supplier for sheet metal and tube assemblies as well as complete solutions for mechanical engineering. The company manufactures machine enclosures, machine frames, plant components and modular assembly cells – from consulting and design through sheet metal and tube processing to powder coating and final assembly. Production includes laser cutting of sheet metal up to 25 mm thickness, tube laser cutting up to 6,500 mm material length, bending on four CNC press brakes, 30 welding stations for MIG/MAG and TIG, and machining with milling and turning machines. The production area at Osnabrücker Landstraße 205 amounts to 7,500 m², of which 1,200 m² is an assembly hall in which fully pre-assembled assemblies including all purchased parts are also produced. The materials processed include steel, steel tube, stainless steel and aluminium. The company is certified to DIN ISO 9001 and is a recognized certified welding operation under DIN EN ISO 3834-2. With around 80 employees, ProDEKon primarily serves customers from mechanical engineering.
- Site
- Gütersloh
- Processes
- Laser cutting (sheet metal processing), Tube laser cutting, Bending (forming), Welding (MIG/MAG and TIG), Powder coating, Powder coating (manual powder coating system), Machining (milling/turning), Assembly (fully pre-assembled assemblies)
- Materials
- Steel, Steel tube, Laser cutting, sheet metal, Tube laser cutting, Bending, Welding MIG/MAG and TIG, Machining, Powder coating
- Certificates
- DIN ISO 9001, DIN EN ISO 3834-2 (certified welding operation)
- Founded
- 2003
- Employees
- 80
- Industries
- Mechanical engineering
- 01
Consulting
- 02
Design (3D, CAD/CAM, SolidWorks)
- 03
Laser cutting, sheet metal
- 04
Tube laser cutting
- 05
Bending
- 06
Metalworking/welding (MIG/MAG, TIG)
- 07
Machining (milling/turning)
- 08
Powder coating
- 09
Assembly
- 10
Shipping/Logistics
Materials and Processes
Laser cutting, sheet metal
Sheet metal processing up to 25 mm thickness on the TRUMPF TruLaser3040 fiber; steel, stainless steel and aluminium.
Tube laser cutting
Tube cuts up to 6,500 mm length and 8 mm wall thickness steel tube on the TRUMPF TruLaser7000 fiber.
Bending
Four CNC press brakes (TRUMPF TruBend 5230S, AMADA HFP 220-30, AMADA HFE 1703L, AMADA HFE) for steel, stainless steel and aluminium.

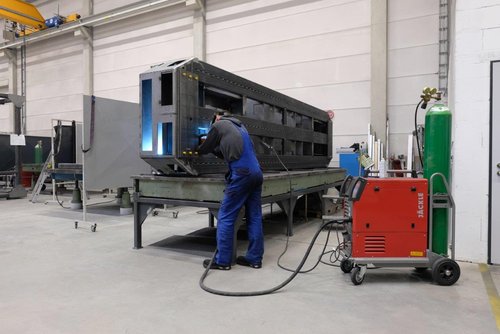

Welding MIG/MAG and TIG
30 welding stations in the certified welding operation under DIN EN ISO 3834-2.
Machining
Milling and turning on MAZAK VTC 530C, DMG MORI CTX alpha 500, DMU 75 mono (5-axis) and DMF 360 linear.
Powder coating
In-house manual powder coating system for workpieces up to 3,600 x 4,000 x 6,150 mm or 7,000 x 2,300 x 2,000 mm weighing more than 1,500 kg.
Assembly of assemblies
Fully pre-assembled assemblies including purchased parts such as sound insulation, thermal insulation, closure units, panes, gas springs and turned/milled parts.
Design / Engineering
10 design workstations with SolidWorks, TruTops and SolidWorks PDM for production-ready engineering.
Locations

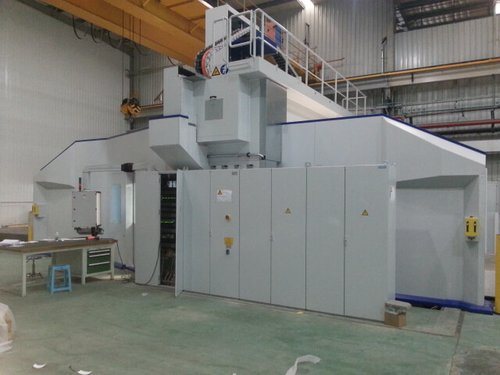

Gütersloh
DEHeadquarters and manufacturing
- Materials
- Steel, steel tube, stainless steel, aluminium
- Laser cutting system TRUMPF TruLaser3040 fiber
- Tube laser TRUMPF TruLaser7000 fiber (up to 6,500 mm, steel tube up to 8 mm)
- 4x CNC press brake (TRUMPF TruBend 5230S, AMADA HFP 220-30, AMADA HFE 1703L, AMADA HFE)
- Machining center MAZAK VTC 530C
- Lathe DMG MORI CTX alpha 500
- 5-axis milling machine DMG MORI DMU 75 mono
- Milling machine DMG MORI DMF 360 linear
- 30 welding stations MIG/MAG and TIG
- Manual powder coating system (workpieces up to 3,600 x 4,000 x 6,150 mm)
- 10 design workstations (SolidWorks, TruTops, SolidWorks PDM)

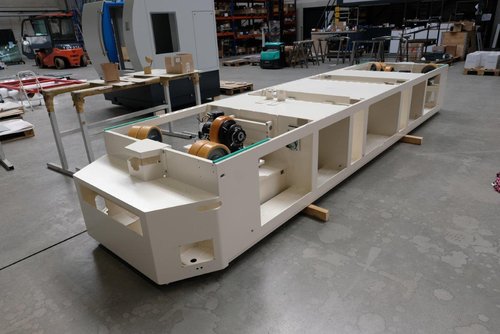

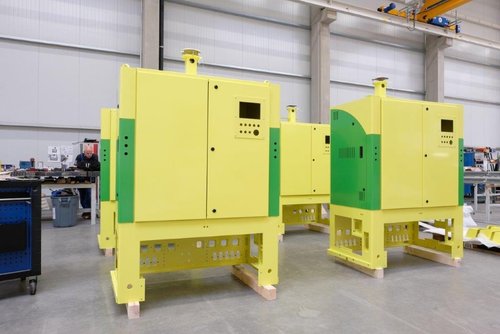

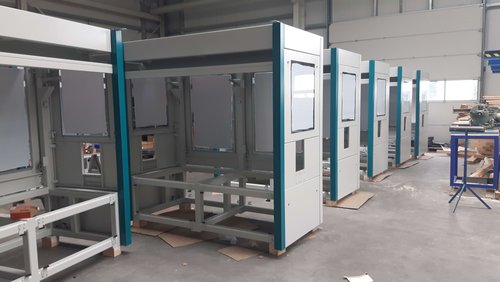

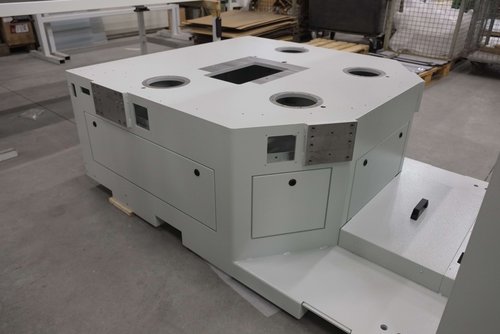

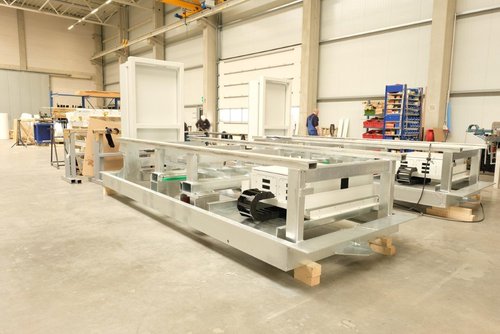

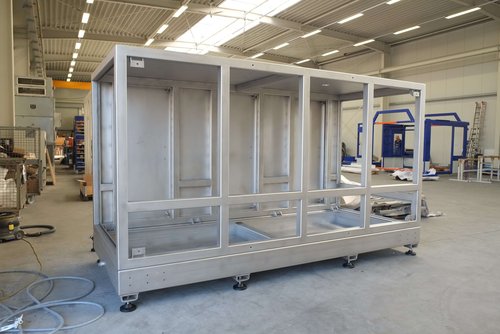

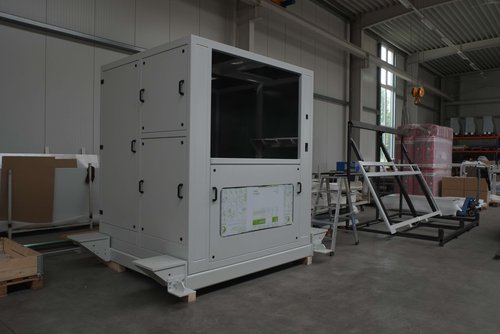

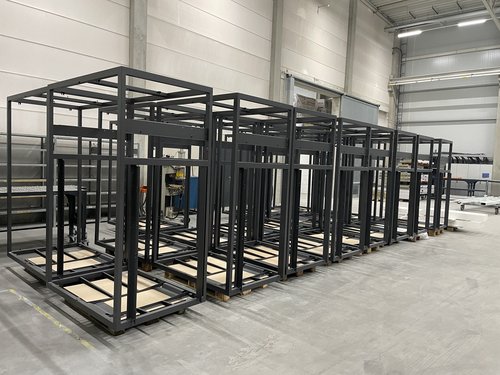

Products and Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Laser cutting (sheet metal processing)Cutting/Separating | – | – | – | – | Steel, Stainless steel, Aluminium |
| Tube laser cuttingCutting/Separating | – | 6,500 mm | – | – | Steel tube |
| Bending (forming)Forming | – | – | – | – | Steel, Stainless steel, Aluminium |
| Welding (MIG/MAG and TIG)Joining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Powder coatingSurface treatment | – | 7,000 mm × 2,300 mm × 2,000 mm | > 1,500 kg | – | Steel, Stainless steel, Aluminium |
| Powder coating (manual powder coating system)Surface treatment | – | 6,150 mm × 3,600 mm × 4,000 mm | – | – | Steel, Stainless steel, Aluminium |
| Machining (milling/turning)Machining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Assembly (fully pre-assembled assemblies)Assembly | – | – | – | – | – |
| Engineering / Design (3D, CAD/CAM)Engineering | – | – | – | – | – |
11 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Laser cutting system | TRUMPF TruLaser3040 fiber | 1 | – | – | Gütersloh |
| Tube laser | TRUMPF TruLaser7000 fiber | – | Material length up to 6,500 mm, material thickness steel tube up to 8 mm | – | Gütersloh |
| CNC press brake | TRUMPF TruBend 5230S | 1 | – | – | Gütersloh |
| CNC press brake | AMADA HFP 220-30 | 1 | – | – | Gütersloh |
| CNC press brake | AMADA HFE 1703L | 1 | – | – | Gütersloh |
| CNC press brake | AMADA HFE | 1 | – | – | Gütersloh |
| Machining center | MAZAK VTC 530C | 1 | – | – | Gütersloh |
| Lathe | DMG MORI CTX alpha 500 | 1 | – | – | Gütersloh |
| 5-axis milling machine | DMG MORI DMU 75 mono | 1 | – | – | Gütersloh |
| Milling machine | DMG MORI DMF 360 linear | 1 | – | – | Gütersloh |
| Manual powder coating system | – | – | For workpieces up to 3,600 x 4,000 x 6,150 mm | – | Gütersloh |
Additional services
Quality
ProDEKon manufactures according to DIN ISO 9001 and is a recognized certified welding operation under DIN EN ISO 3834-2. All common welding processes are covered by this certification.
| Evidence | Gütersloh |
|---|---|
| DIN ISO 9001 | |
| DIN EN ISO 3834-2 (certified welding operation) |
Company History
- 2003
Founded; first location in a workshop in Isselhorst
- 2005
Relocation to the site at Carl-Borgward-Str. 12
- 2007
Integration of an in-house powder coating operation
- 2012
Opening of the new metalworking/welding area
- 2013
Construction of a new assembly hall
- 2020
Move into the new building at Osnabrücker Landstraße 205, Gütersloh (construction start March 2019, in operation since January 2020)
