Manufacturing of mounting profiles, fastening and anchoring technology made of steel and stainless steel
ProfilAktiv GmbH
Rüsselsheim (corporate headquarters) · Plettenberg (branch office)New on Amplifa
About ProfilAktiv

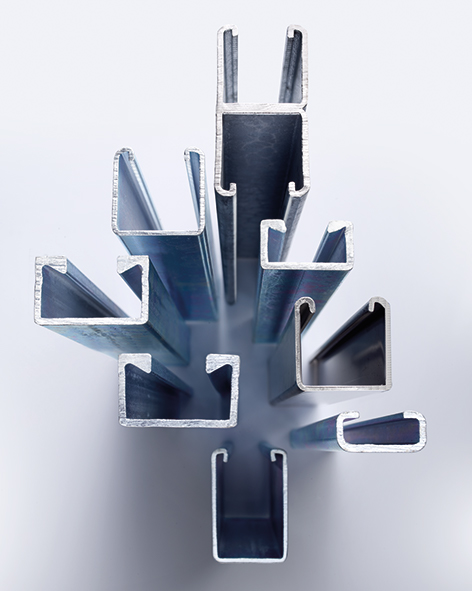

ProfilAktiv GmbH specialises in mounting, fastening and anchoring technology and manufactures mounting profiles (C-profile rails), mounting angles, hook-head bolts, hammer-head bolts, threaded plates (channel nuts), pipe clamps and support brackets made of steel and stainless steel. The product range includes standard products as well as custom-made parts to drawing or sample, such as fixed lengths, special hole patterns or pipe clamps in special dimensions. Hook-head bolts are hot-forged up to M100 with lengths up to 6000 mm; hammer-head bolts are available in M6 to M12 (up to M16 depending on head design) and lengths up to 200 mm. Surfaces are electro-galvanised or hot-dip galvanised. Customer industries include conveying and transport technology, building and solar technology including heat pumps, pipeline construction, the elevator industry and civil engineering as well as mechanical and plant engineering. A service centre with a modern machine park, a fully automated high-bay warehouse, assembly/kitting and personal labelling complement the manufacturing operations. The company maintains a corporate headquarters in Rüsselsheim and a branch office in Plettenberg.
- Site
- Rüsselsheim
- Processes
- Manufacturing mounting rails (C-profile rails), unperforated/perforated, special hole patterns,, Manufacturing mounting angles/support angles, Manufacturing hot-forged hook-head bolts, up to M 100, lengths up to 6000 mm, Manufacturing hammer-head bolts / cutting to special lengths, M 6 to M 12 (up to M 16 depending on, Manufacturing threaded plates (channel nuts)/rhombus nuts, M 5 to M 24, with partial or full, Manufacturing pipe clamps (special dimensions), base material 25 x 3 mm to 70 x 10 mm, with/without, Manufacturing support brackets/holders, standardised and customised, Electro-galvanising of components
- Materials
- Steel strength class 4.6, Steel quenched and tempered strength class 8.8, Stainless steel A2, Stainless steel A4-50, Stainless steel A4-70 (cold-formed), V2A steel, V4A steel, Galvanised steel
- Certificates
- EN ISO 9001
- Industries
- Conveying and transport technology, Building and solar technology, heat pumps, Pipeline construction, Elevator industry and civil engineering, Mechanical and plant engineering
- 01
Consulting and development
- 02
Prototyping
- 03
Manufacturing (hot/cold forming, cutting to length, punching)
- 04
Surface galvanising
- 05
Assembly/kitting
- 06
Labelling
- 07
Warehouse and logistics
Materials & Processes
Steel 4.6
Base material for hook-head bolts and fastening elements in standard design.

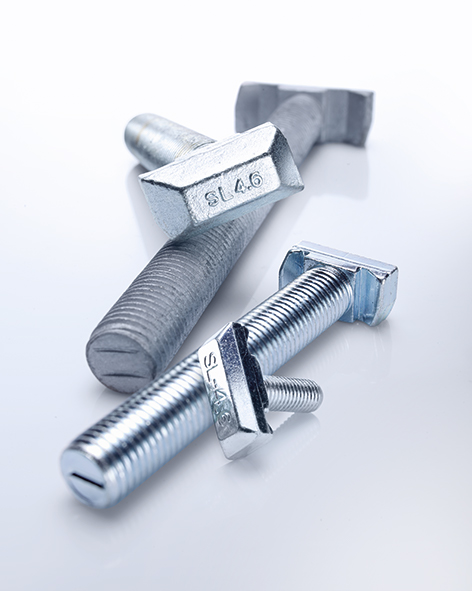

Steel 8.8 quenched and tempered
Quenched and tempered version for hook-head bolts subject to higher loads.
Stainless steel A2
Material for hammer-head bolts and corrosion-protected applications.
Stainless steel A4-50
Stainless steel version for hook-head bolts with increased corrosion protection.
Stainless steel A4-70 (cold-formed)
Cold-formed stainless steel parts with higher strength.
V2A steel (1.4301)
Material for threaded plates and mounting systems in the stainless steel sector.
V4A steel (1.4404)
High-alloy stainless steel for threaded plates with increased corrosion requirements.
galvanised steel
Electro-galvanised surface for corrosion protection in indoor applications.
hot-dip galvanised steel
Hot-dip galvanising for components with durable weather protection.
Sites
Rüsselsheim
DECorporate headquarters
- Materials
- Steel, stainless steel
- Service centre machine park
- High-bay warehouse

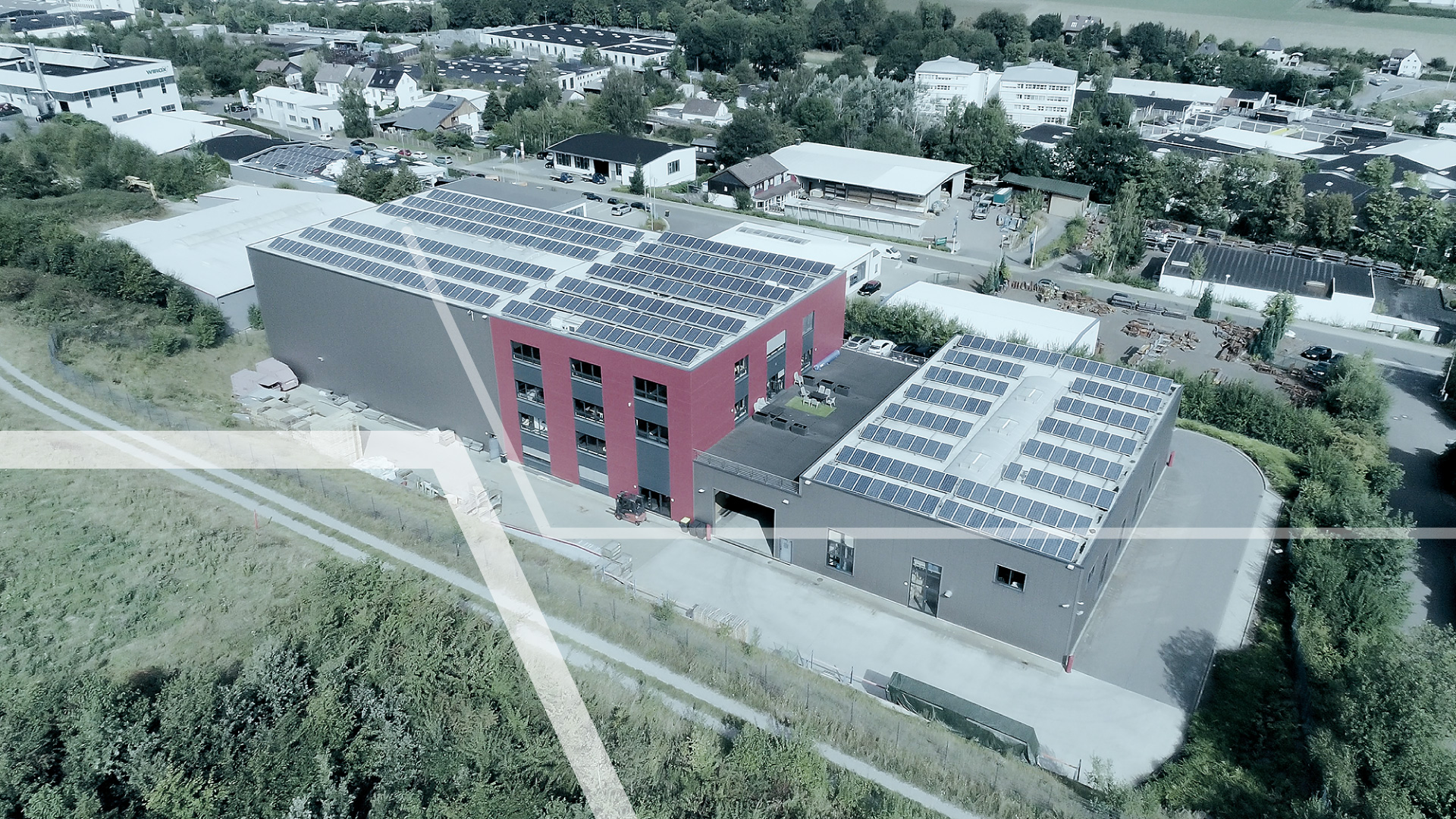

Plettenberg
DEBranch office
- Materials
- Steel, stainless steel
Components

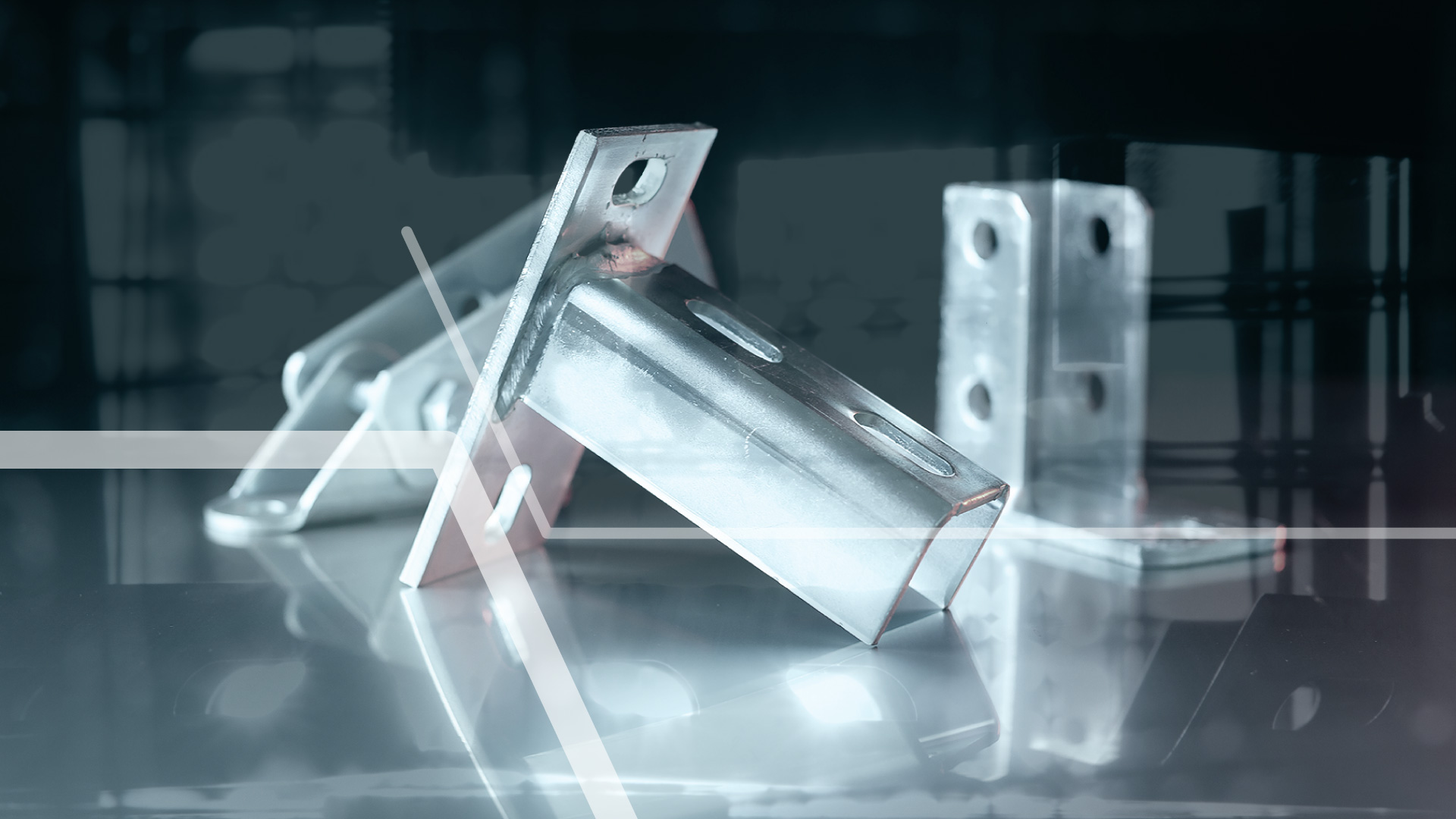

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacturing mounting rails (C-profile rails), unperforated/perforated, special hole patterns,Joining | – | – | – | – | Steel, Stainless steel |

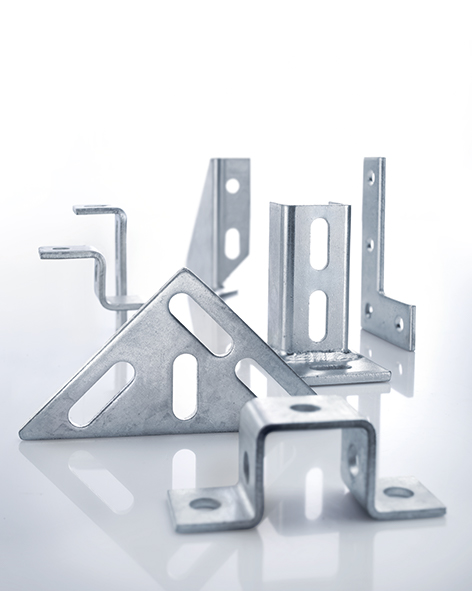

| Manufacturing mounting angles/support anglesJoining | – | – | – | – | Steel, Stainless steel |
| Manufacturing hot-forged hook-head bolts, up to M 100, lengths up to 6000 mmForming | – | 6000 mm | – | – | Steel 4.6, Steel 8.8 (quenched and tempered), Stainless steel A4-50, Stainless steel A4-70 |

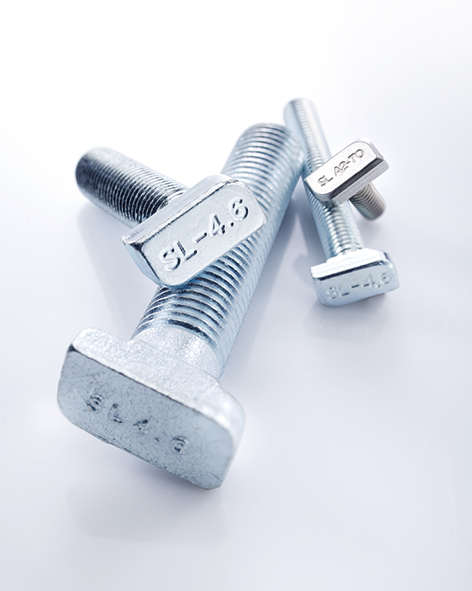

| Manufacturing hammer-head bolts / cutting to special lengths, M 6 to M 12 (up to M 16 depending onJoining | – | 200 mm | – | – | Steel, Stainless steel A2, Stainless steel A4 |

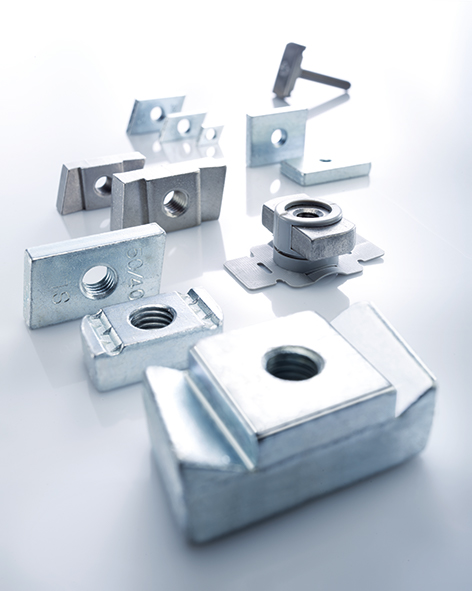

| Manufacturing threaded plates (channel nuts)/rhombus nuts, M 5 to M 24, with partial or fullJoining | – | – | – | – | Steel, Galvanised steel, V2A steel, V4A steel |

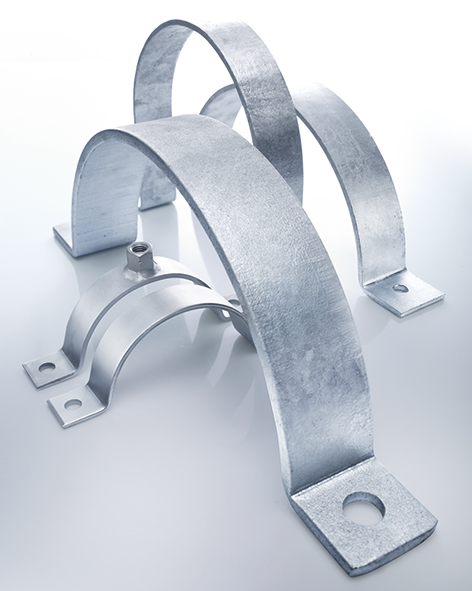

| Manufacturing pipe clamps (special dimensions), base material 25 x 3 mm to 70 x 10 mm, with/withoutJoining | – | – | – | – | Steel, Stainless steel |
| Manufacturing support brackets/holders, standardised and customisedJoining | – | – | – | – | Steel, Hot-dip galvanised steel, Stainless steel |
| Electro-galvanising of componentsSurface | – | – | – | – | Steel |
| Hot-dip galvanising of componentsSurface | – | – | – | – | Steel |
| Special parts to drawing or sampleEngineering | – | – | – | – | Steel, Stainless steel |
Additional services
Quality
Continuous quality assurance in accordance with EN ISO 9001 ensures that even the highest requirements are met. Precise manufacturing, such as millimetre-accurate pipe clamp diameters, is part of the quality standard.
| Evidence | Rüsselsheim |
|---|---|
| EN ISO 9001 |
