Aluminium profile systems and CNC contract manufacturing with 5-axis simultaneous machining for mechanical engineering.
PROFILEX Maschinenbautechnik GmbH
Neukirchen (Südstraße 9, 09221) · Saxony Plant / HeadquartersNew on Amplifa
About PROFILEX Maschinenbautechnik GmbH
PROFILEX Maschinenbautechnik GmbH, based in Neukirchen in Saxony, operates in two business fields: first, the company develops and manufactures its own aluminium profile system in slot 8 and slot 10 sizes, from which individually tailored workshop equipment, machine frames, cladding, protective enclosures and special constructions are created. Its service offering covers planning, design, manufacturing and assembly from a single source. Second, PROFILEX offers CNC-based contract manufacturing as a job-shop manufacturer — from simple constructions through to highly complex 3D shapes. Its machine park includes DMG MORI CNC universal milling machines with 5-axis simultaneous machining as well as a universal lathe with bar feeder. Manufacturing is complemented by drilling, laser marking, the bending of aluminium profiles and an in-house design department that supports customers with project planning. Customers include companies from mechanical engineering and industrial workshop equipment.
- Site
- Neukirchen
- Processes
- CNC-based machining / CNC contract manufacturing (3D shapes, milling and turning), 5-axis simultaneous machining (milling), Turning (universal turning with bar feeder), Drilling (column drilling machine), Laser marking, Bending of aluminium profiles, Design and planning (CAD/CAM, in-house design department), Assembly/planning/design/manufacturing of profile system projects
- Materials
- Aluminium, Aluminium profile building block system slot 8, Aluminium profile building block system slot 10, Aluminium alloy (high-grade, for profile system), Aluminium alloy (high-grade)
- Certificates
- Surface measuring device (Mahr), Extensive measuring and inspection equipment (Mahr, Mitutoyo, Precitool), Tool presetter (Haimer)
- Industries
- Mechanical engineering, Industry/Workshop equipment
- 01
Design & planning (CAD/CAM)
- 02
CNC milling (3-axis and 5-axis simultaneous machining)
- 03
CNC turning with bar feeder
- 04
Drilling
- 05
Bending of aluminium profiles
- 06
Laser marking
- 07
Assembly
Materials & Processes
Aluminium
Base material of the company's own profile system (slot 8 / slot 10) and the main material for machining.
Aluminium alloy (high-grade)
High-grade alloy for the profile system with slot system, compatible with other profile systems.
Sites
Saxony Plant / Headquarters
DEDesign, CNC manufacturing, assembly
- Materials
- Aluminium
- DMU 50 3rd Generation (DMG MORI, 5-axis simultaneous machining with swivel rotary table)

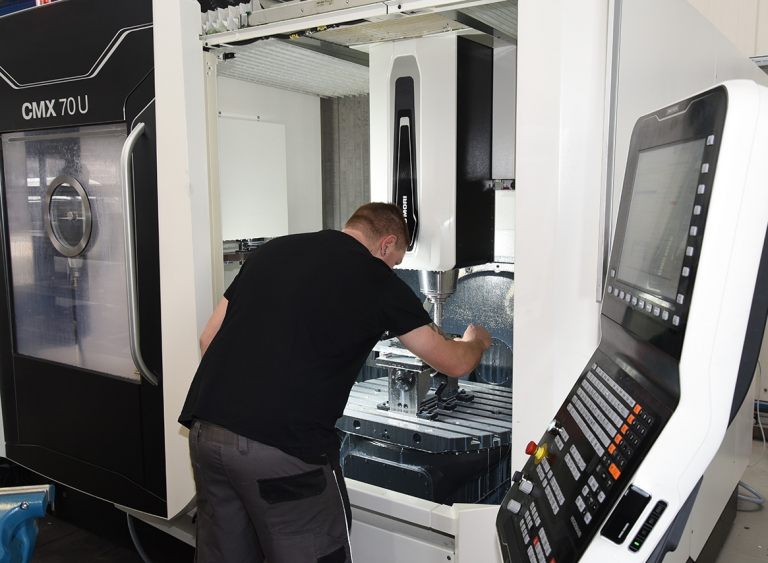

- CMX 70 U (DMG MORI, universal milling machine with direct measuring system)
- SPRINT 20|8 universal lathe with bar feeder (in procurement)
- Column drilling machine Alzmetall
- Tool presetter Haimer
- Laser marking system TROTEC
- Bending machine for aluminium profiles Zopf
- Surface measuring device Mahr
Parts & Services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

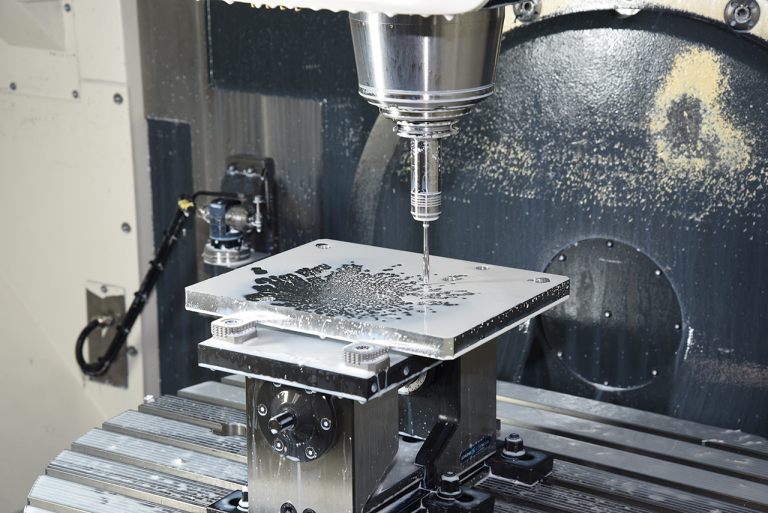

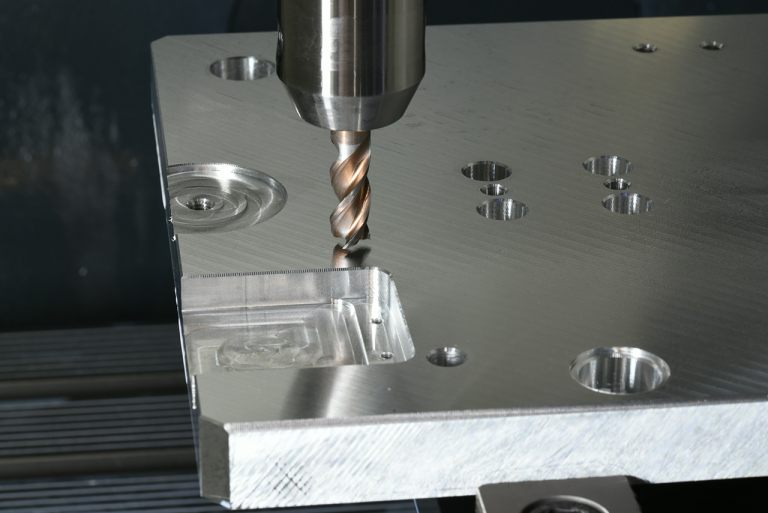

| CNC-based machining / CNC contract manufacturing (3D shapes, milling and turning)Machining | – | – | – | – | Aluminium |
| 5-axis simultaneous machining (milling)Machining | – | – | – | – | Aluminium |
| Turning (universal turning with bar feeder)Machining | – | – | – | – | – |
| Drilling (column drilling machine)Machining | – | – | – | – | – |
| Laser markingSurface | – | – | – | – | – |
| Bending of aluminium profilesForming | – | – | – | – | Aluminium |
| Design and planning (CAD/CAM, in-house design department)Engineering | – | – | – | – | – |
| Assembly/planning/design/manufacturing of profile system projectsAssembly | – | – | – | – | Aluminium |
| Metrology/surface measurement and inspection equipmentTesting | – | – | – | – | – |
8 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

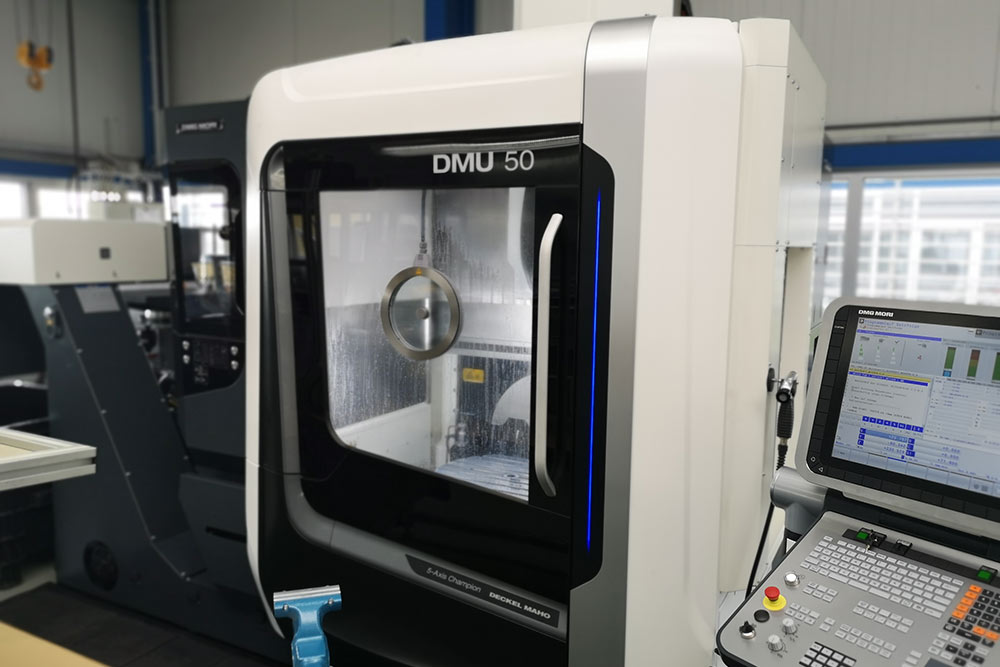

| CNC universal milling machine (5-axis simultaneous machining, swivel rotary table) | DMG MORI DMU 50 3rd Generation | – | – | – | Neukirchen |

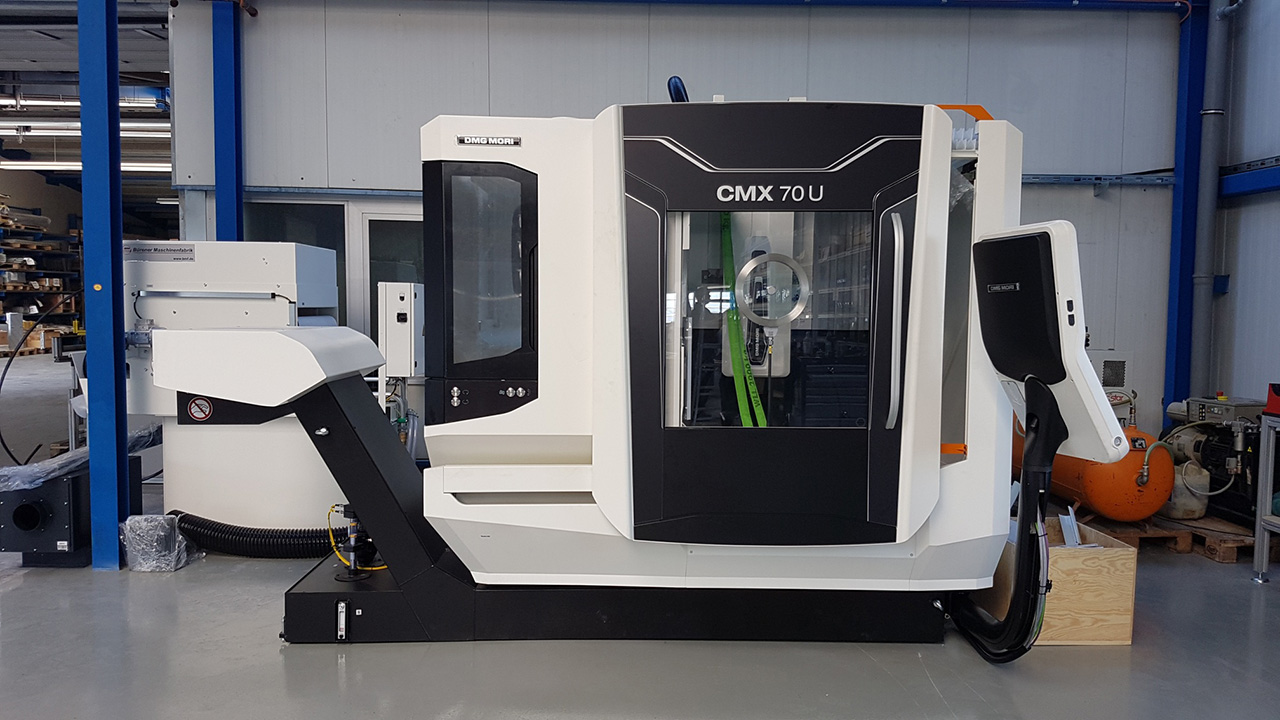

| CNC universal milling machine (direct measuring system) | DMG MORI CMX 70 U | – | – | – | Neukirchen |
| Universal lathe with bar feeder (in procurement) | SPRINT 20|8 | – | – | – | Neukirchen |
| Column drilling machine | Alzmetall | – | – | – | Neukirchen |
| Tool presetter | Haimer | – | – | – | Neukirchen |
| Laser marking system | TROTEC | – | – | – | Neukirchen |
| Bending machine for aluminium profiles | Zopf | – | – | – | Neukirchen |
| Surface measuring device | Mahr | – | – | – | Neukirchen |
Additional services
Quality & Metrology

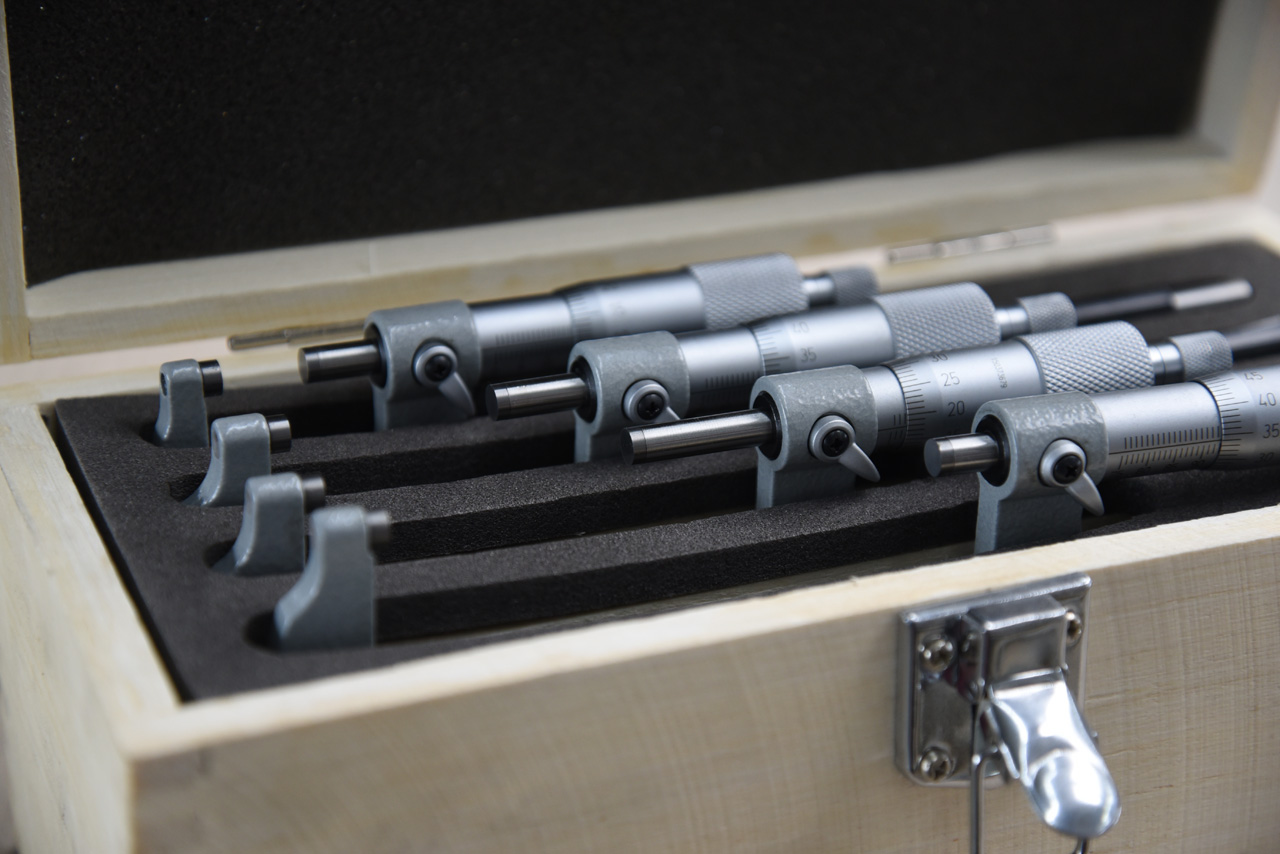

PROFILEX has a surface measuring device from Mahr as well as an extensive range of measuring and inspection equipment (including Mahr, Mitutoyo, Precitool). Clamping technology is carried out in close cooperation with the company Schunk.
| Evidence | Saxony Plant / Headquarters |
|---|---|
| Surface measuring device (Mahr) | |
| Extensive measuring and inspection equipment (Mahr, Mitutoyo, Precitool) | |
| Tool presetter (Haimer) |
