Special machinery, automation and process plant engineering – foundry technology, LDS coating, dehumidification and heat recovery.
R. Scheuchl GmbH
Ortenburg · Ingelheim · Perach · Shenyang (CN) · Trussville (US) · ErgoldsbachNew on Amplifa
About R. Scheuchl GmbH
R. Scheuchl GmbH is a mid-sized family-owned company for special machinery, automation and process plant engineering headquartered in Ortenburg (Bavaria). Originating from foundry technology, the company develops and manufactures machines and systems for fully automated post-processing of castings (core removal, cooling, sawing, deburring, cleaning) as well as robot cells for handling, packaging and repackaging. A core element is the arc wire spraying process (LDS) for thin steel layers on the cylinder running surfaces of aluminum crankcases – over 30 million coated running surfaces in BMW crankcases. In the field of process engineering, Scheuchl realizes exhaust air purification, solvent recovery, adsorption and condensation dehumidifiers (Scheurusorb) as well as rotary heat exchangers up to 6,200 mm in diameter for painting systems. Design, electrical engineering, PLC programming, simulation and in-house manufacturing are all under one roof – from feasibility assessment through assembly, commissioning and CE conformity to after-sales service with remote monitoring. Materials and processes include gray cast iron, aluminum and steel as well as inorganically bonded core sand. Customers come from the foundry, automotive, pharmaceutical, chemical, packaging and food industries as well as environmental engineering.
- Site
- Ortenburg
- Processes

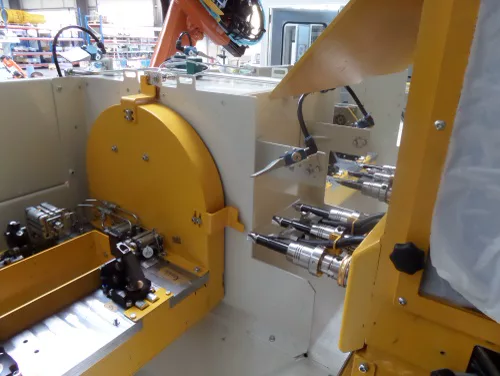

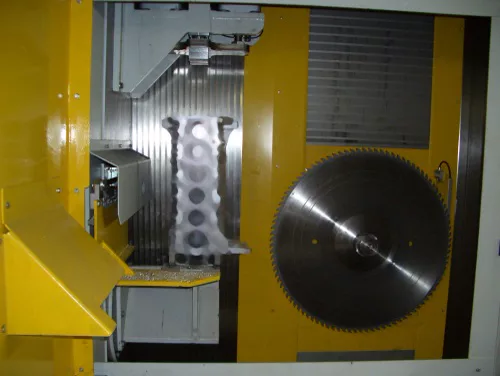

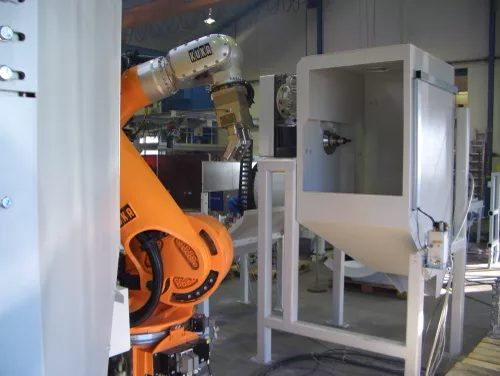

- Foundry technology: casting post-processing (core removal, cooling, sawing, deburring, cleaning) –, Special machinery & automation: robot cells for handling, packaging, repackaging – single cell up to, LDS coating systems: arc wire spraying (LDS) of thin steel layers onto, Process engineering: exhaust air purification (particulate separation, adsorption, concentration,, Solvent recovery (adsorption, concentration, condensation, cryogenic condensation,, Dehumidification systems: adsorption and condensation dehumidifiers (Scheurusorb), dew points far, Odor treatment with SKH odor neutralizers (systems 35,000 and 180,000 m³/h), Heat recovery: rotary heat exchangers for room, process and high-temperature air, heat recovery
- Materials
- Gray cast iron (crankcases, cylinder heads), Aluminum (crankcases), Steel (coating wire for LDS), Inorganically bonded core sand, Silica gel (adsorption matrix for dehumidifiers), Gray cast iron, Aluminum, Steel
- Certificates
- ISO 9001:2015, ISO 14001:2015
- Founded
- 1962
- Industries
- Foundry industry, Automotive industry, Pharmaceutical industry, Chemical industry, Packaging industry, Food processing
- 01
Consulting & feasibility assessment
- 02
Design & electrical planning
- 03
PLC programming, simulation & virtual commissioning
- 04
In-house manufacturing & pre-assembly in Ortenburg
- 05
Assembly, commissioning & acceptance testing at the customer
- 06
Documentation & CE conformity
- 07
After-sales service, maintenance & remote monitoring
Materials & Processes
Gray cast iron

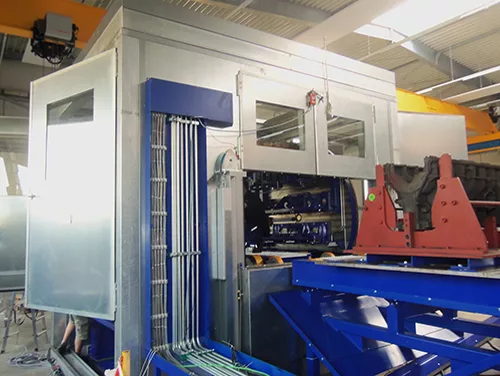

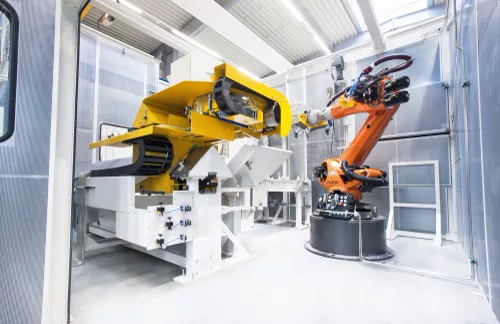

Core-removal and post-processing systems for gray cast iron crankcases and cylinder heads.
Aluminum
LDS coating of cylinder running surfaces in aluminum crankcases for weight reduction.
Steel
Coating wire for thin, wear-resistant steel layers using the twin-wire LDS process.

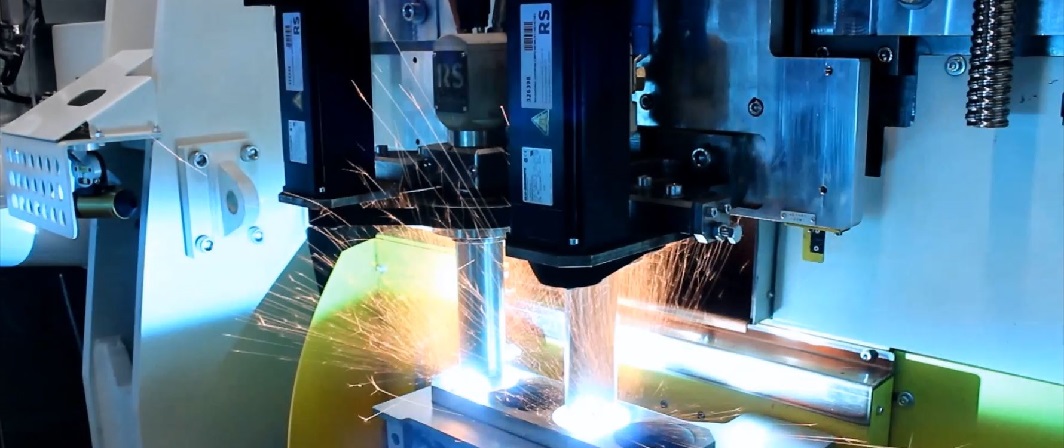

Arc Wire Spraying (LDS)
Spraying of thin steel layers with multi-spindle systems and 300-kg wire drums.
Inorganically bonded core sand
Modular regeneration system with a throughput of 2–3 t/h (INACORE).

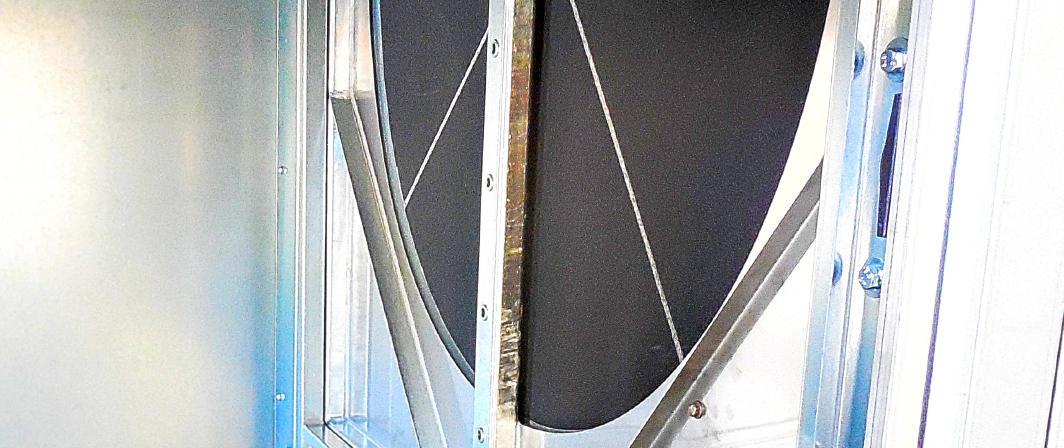

Silica gel (adsorption matrix)
Chemically bonded, honeycomb rotor matrix of the Scheurusorb dehumidifiers.
Sites & Manufacturing

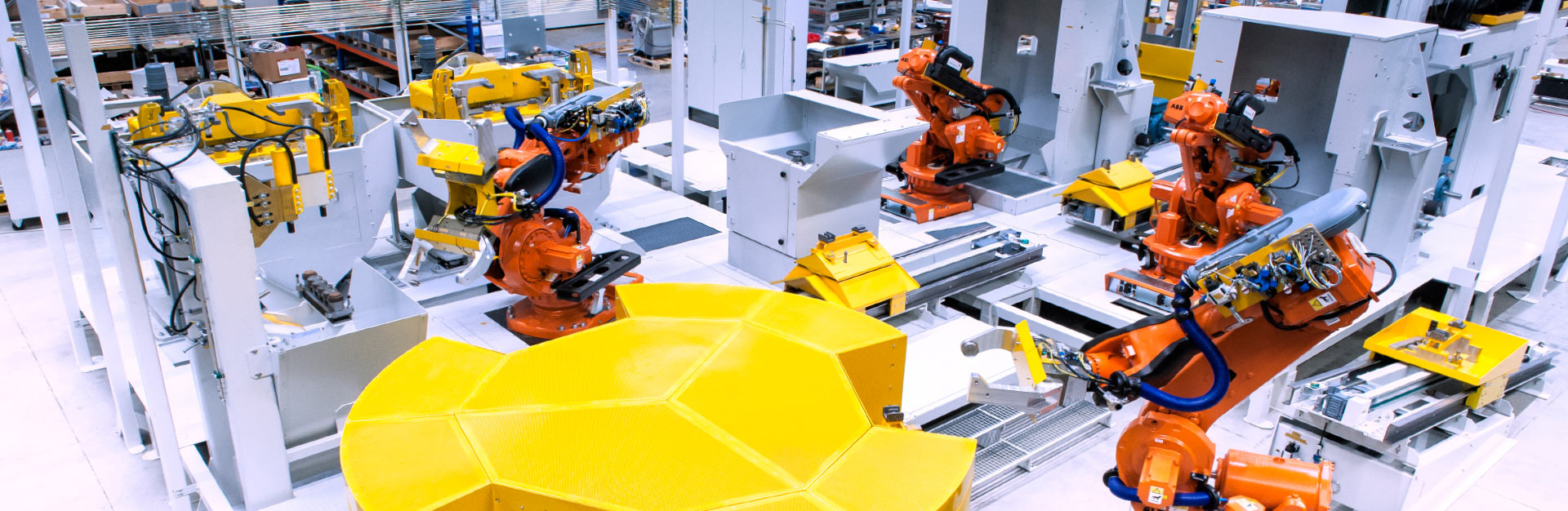

Ortenburg
DEHeadquarters, design and manufacturing in five halls
- Lot size
- Single systems up to serial production lines
- Materials
- Steel, aluminum, gray cast iron

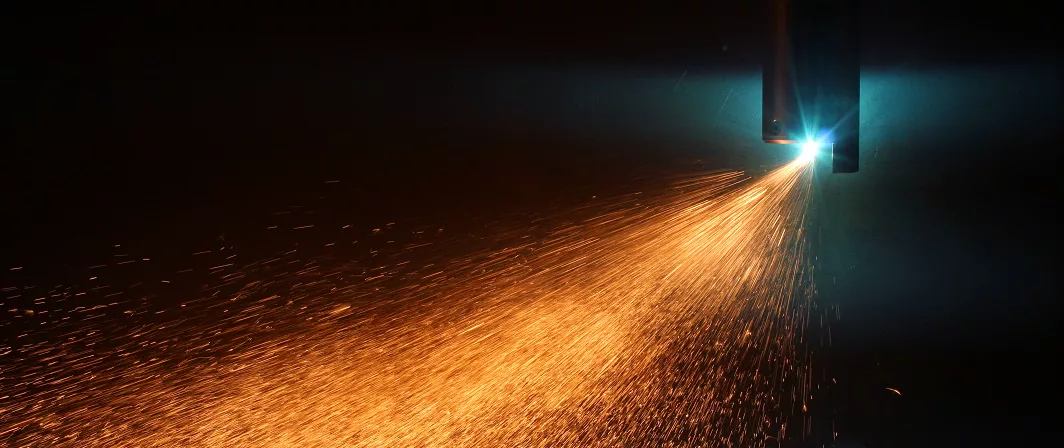

- LDS systems (multi-spindle, twin-wire process)
- Flexible LDS test system

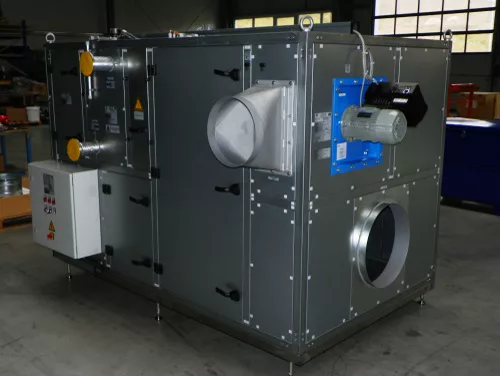

- Scheurusorb process air units CPR030–CPR194

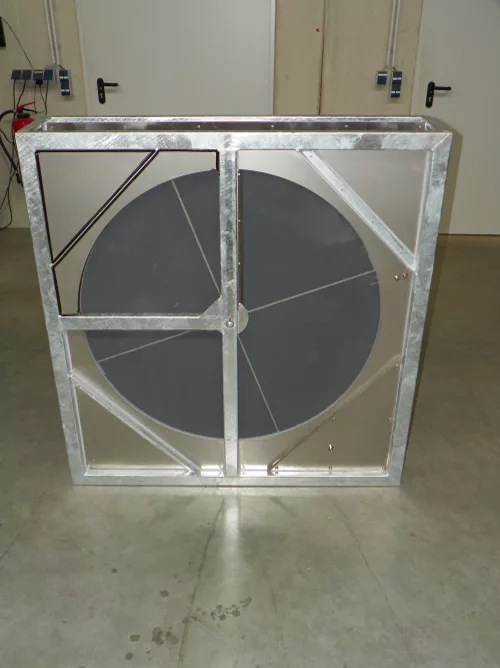

- RSX dehumidification cassettes
- Rotary heat exchangers up to 6,200 mm diameter
Ingelheim
DESales office
Perach
DEBranch office
Shenyang
CNSubsidiary Scheuchl Equipment Technology Co., Ltd. – manufacturing and service
Trussville
USBranch office RS Tech Solutions Corp. (RS USA)
Ergoldsbach
DEJoint venture INACORE GmbH with Laempe Mössner Sinto – production of inorganically bonded sand cores
- Lot size
- Core sand regeneration 2–3 t/h
- Materials
- Inorganically bonded core sand
- Modular system for regeneration of inorganically bonded core sands
Systems & Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Foundry technology: casting post-processing (core removal, cooling, sawing, deburring, cleaning) –Casting | – | – | – | – | Gray cast iron, Aluminum, Castings |
| Special machinery & automation: robot cells for handling, packaging, repackaging – single cell up toAssembly | – | – | – | – | – |
| LDS coating systems: arc wire spraying (LDS) of thin steel layers ontoSurface | – | – | – | – | Steel, Aluminum |
| Process engineering: exhaust air purification (particulate separation, adsorption, concentration,Engineering | – | – | – | – | – |

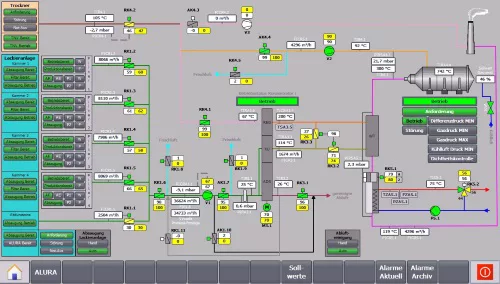

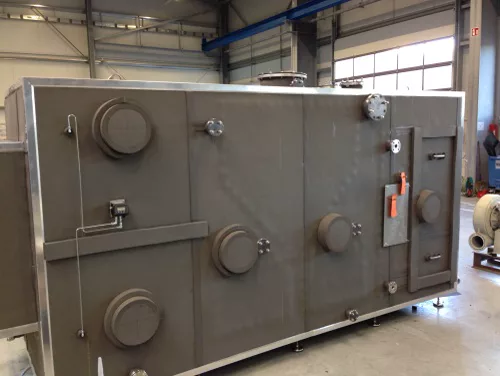

| Solvent recovery (adsorption, concentration, condensation, cryogenic condensation,Engineering | – | – | – | – | – |
| Dehumidification systems: adsorption and condensation dehumidifiers (Scheurusorb), dew points farEngineering | – | – | – | – | – |
| Odor treatment with SKH odor neutralizers (systems 35,000 and 180,000 m³/h)Engineering | – | – | – | – | – |
| Heat recovery: rotary heat exchangers for room, process and high-temperature air, heat recoveryEngineering | – | – | – | – | – |
| Plant engineering: new construction, conversion & retrofit (control migration to TIA Portal,Engineering | – | – | – | – | – |
| Modular system for regeneration of inorganically bonded core sands (throughput 2-3 t/h),Casting | – | – | – | – | Gray cast iron, Aluminum |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

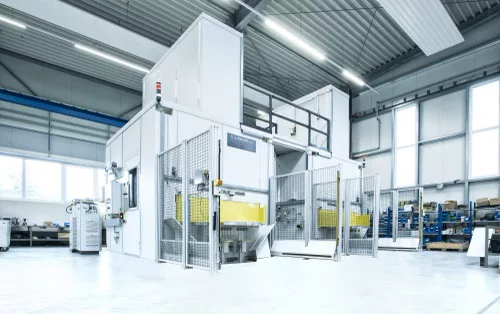

| LDS system (arc wire spray system, multi-spindle systems, twin-wire process) | Scheuchl | – | – | – | Ortenburg |
| Flexible LDS test system for coating trials and process development | Scheuchl | – | – | – | Ortenburg |
| Scheurusorb dehumidifiers (process air units CPR030–CPR194, dehumidification cassettes RSX-30-20 to | Scheuchl CPR/RSX | – | Dry air volume ≤ 600 to > 12,000 m³/h | – | Ortenburg |
| Rotary heat exchangers (up to 6,200 mm diameter, 'world's largest rotary heat exchanger') | Scheuchl | – | Rotor diameter 6,200 mm | – | Ortenburg |
| Modular system for regeneration of inorganically bonded core sands (2-3 t/h) | Scheuchl | – | – | – | Ortenburg |
Additional services

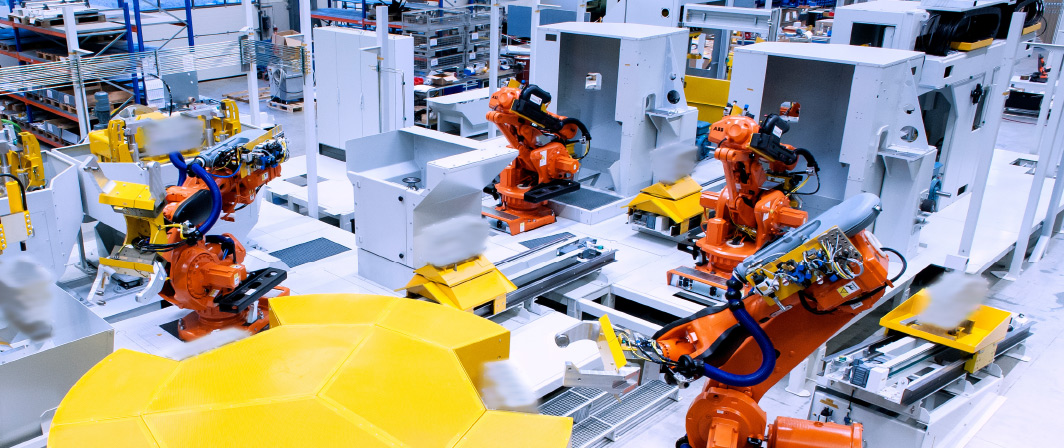

Reference customers
Quality & Certification
R. Scheuchl GmbH operates certified management systems according to ISO 9001 (quality) and ISO 14001 (environment), each audited by DEKRA Certification GmbH. Standardized, continuously improved processes accompany every project step from consulting to commissioning.
| Evidence | Ortenburg |
|---|---|
| ISO 9001:2015 | |
| ISO 14001:2015 |
Company History
- 1962
Company founded by Richard Scheuchl in Munich
- 1976
Relocation from Munich to Gröbenzell
- 1980
Opening of the sales office in Ingelheim
- 1983
Establishment of an own production branch in Ortenburg
- 1992
Relocation of the entire company from Gröbenzell to Ortenburg
- 1994
Expansion of the existing production hall (Hall II)
- 1995
Construction of a new office building
- 1996
Expansion and office extension of the sales office in Ingelheim
- 1999
Construction of a third production hall with office building
- 2005
Construction of a fourth production hall
- 2012
Construction of a fifth production hall with office space; award of the SME Prize
- 2013
BMW Supplier Innovation Award for the LDS process
- 2015
"Bayerns Best 50" award
- 2016
Founding of the first foreign branch in Shenyang, China
- 2017
Founding of INACORE GmbH as a joint venture with Laempe Mössner Sinto in Ergoldsbach
- 2019
Own production at the China site
- 2025
Founding of RS USA – branch in Trussville
