Sales and consulting for woodworking machines for joineries in Western Switzerland
Raboud machinesbois.ch
Vauderens (CH)New on Amplifa
About us
Raboud machinesbois.ch is a specialized machinery trading company based in Vauderens in the canton of Fribourg, Switzerland. Founder Pascal Raboud worked for many years as a technical consultant for woodworking machines in the cantons of Vaud, Fribourg, Neuchâtel and Jura before going independent. The company sells new and used machines for the woodworking trade, including sliding table saws, jointer and thickness planers, spindle moulders, CNC boring centres, 4- and 5-axis machining centres, edge banders, band saws, brushing machines, dust extraction systems as well as presses, feed units and accessories. Brands offered include Casadei, Vitap, Top Standard Machines, Rehnen, Ecoline, Maggi, Comafer, Veneta Impianti, SICAR and MASTERFLEX. An individual plan is created for every extraction project; demos and consulting are available in Romandie. The showroom is accessible by appointment.
- Site
- Vauderens
- Processes
- Panel sawing (panel saw / sliding table saw), Band sawing (band saw), Jointing and planing, Profiling/spindle moulding (spindle moulder), CNC boring and machining of panels, 4- and 5-axis CNC machining of panels and solid wood, Edge banding, Wide belt sanding
- Materials
- Solid wood, Panels, Wood waste, CNC boring centres (Vitap K3, Leonardo), CNC machining centres (Jet Elite, Jet Master T), Sliding and hand circular saws (Top standard machines), Edge banders (Casadei E450, E550T, Kronos 60.0), Dust extraction systems (Veneta Impianti)
- Industries
- Joineries, Woodworking, Interior fitting, Door and window construction, Joinery, Woodworking
- 01
Consulting and needs analysis
- 02
Selection of new or used machines
- 03
Machine demonstration in Western Switzerland
- 04
Individual project planning (e.g. dust extraction)
- 05
Accessories and peripherals
- 06
Sale and delivery
Machines & Solutions

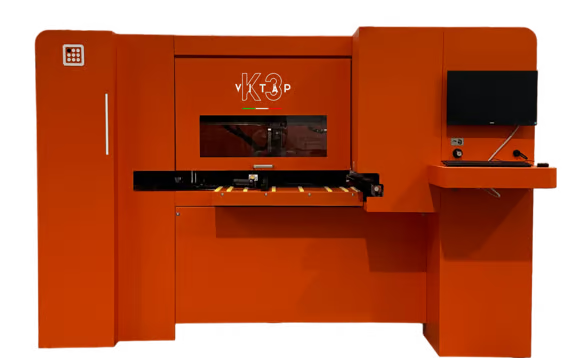

CNC boring centres (Vitap K3, Leonardo)
Boring and machining centres for panels and solid wood, especially for interior fitting and doors; K3: X unlimited, Y 1250 mm, Z 50 mm, panel weight up to 40 kg.

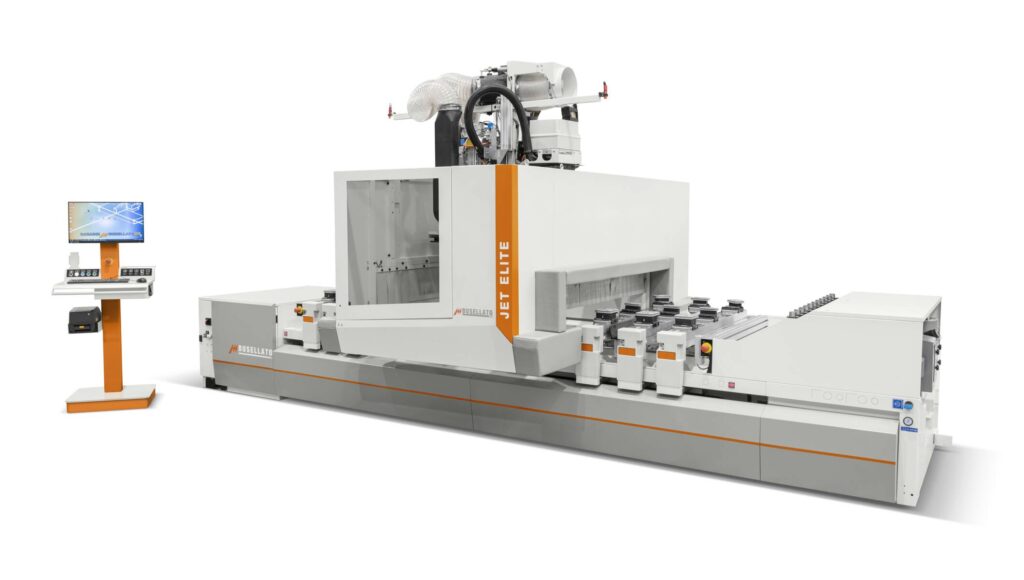

CNC machining centres (Jet Elite, Jet Master T)
4- and 5-axis centres for panels and solid wood with working area 3115 x 1320 x 180 mm and 9.5-kW electrospindle.

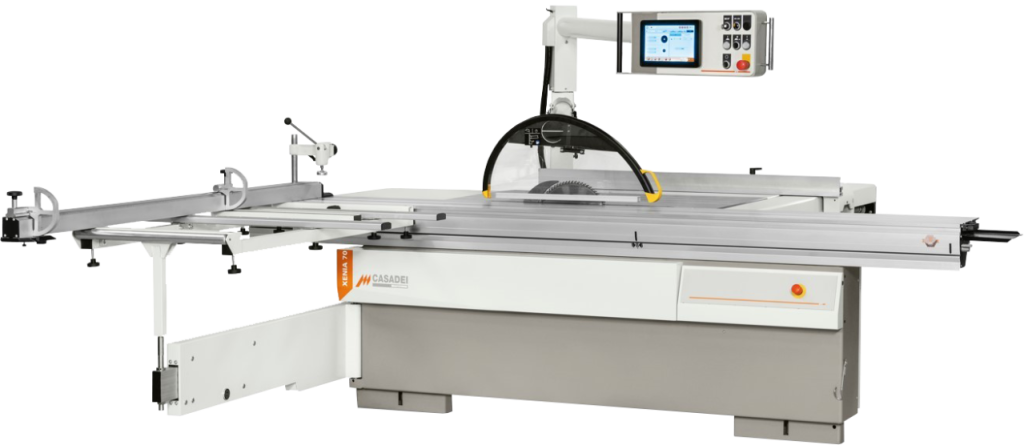

Sliding and hand circular saws (Top standard machines)
Circular saws XENIA 70, XENIA 40X and SC20 with cutting lengths up to 3200 mm for panel cutting.
Edge banders (Casadei E450, E550T, Kronos 60.0)
Automatic edge banders with EVA or EVA/PUR adhesive at feed speeds of 7 to 12 m/min.

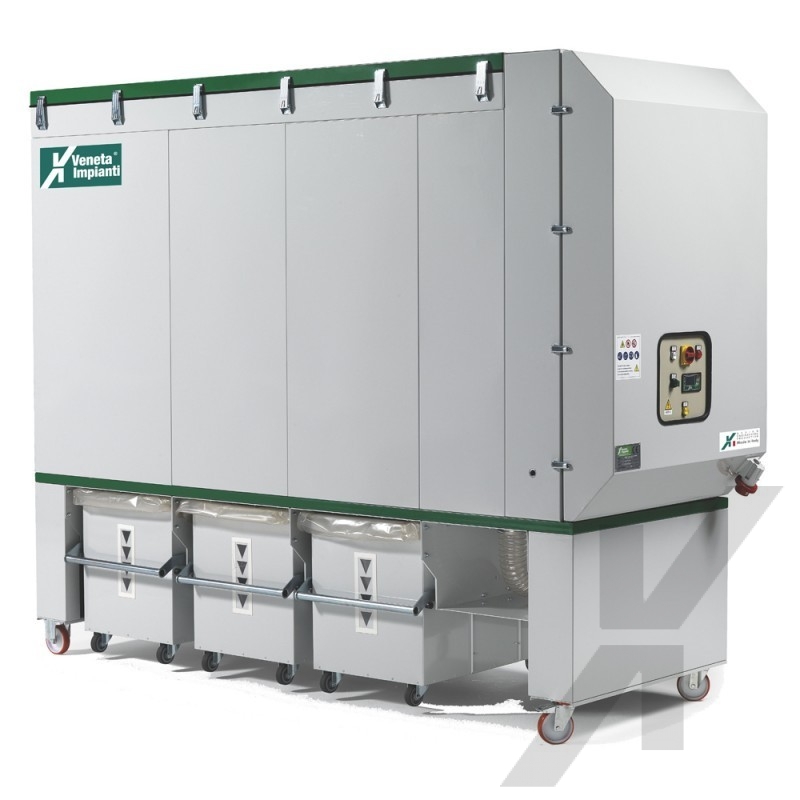

Dust extraction systems (Veneta Impianti)
Vacuum, bag filter and filter base systems, ATEX-compliant and in accordance with SUVA regulations, individually planned.
Brushing machines (Ecoline Windsand, Profilsand, Rustikmat)
Sanding and structuring machines for flat surfaces, profiles and rustic finishes.
Power feeders (Steff 2034, VarioSteff 4)
Automatic feed devices with fixed or variable speeds for greater work safety and a constant feed rate.
Shredders and briquette presses
Mono-rotor shredder DINAMIC 600 EVO for wood waste with 8–17 % moisture (approx. 300 kg/h) as well as briquette presses.
Lift tables and edge sanding machines
German lift tables (Zeus, Herkules, 300 kg capacity) and edge sanding machines RS-2010/RK 1-2.
Accessories (paint carts, jib cranes, lift tables)
Paint racks MASTERFLEX/VARIOFLEX, custom-made jib cranes and wall mounts for workshop operation.
Locations
Vauderens
CHLocation and showroom (by appointment)
- Materials
- New and used woodworking machines
- Exhibition machines (CNC, saws, edge banders, extraction)
Machines
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

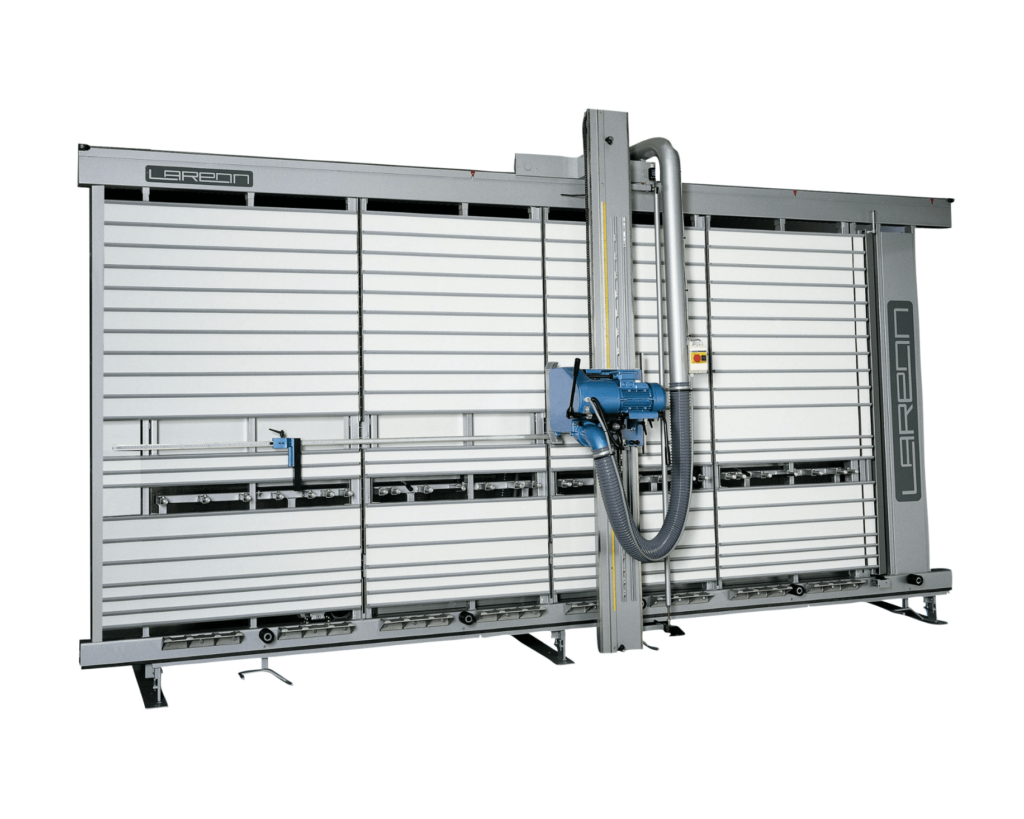

| Panel sawing (panel saw / sliding table saw)Machining | – | 3200 mm | – | – | Wood, Panels |
| Band sawing (band saw)Machining | – | – | – | – | Wood |
| Jointing and planingMachining | – | 220 mm (maximum wood passage) | – | – | Wood |
| Profiling/spindle moulding (spindle moulder)Machining | – | – | – | – | Wood |
| CNC boring and machining of panelsMachining | – | X unlimited × 1250 mm × 50 mm | – | – | Wood, Panels, Solid wood |
| 4- and 5-axis CNC machining of panels and solid woodMachining | – | 3115 mm × 1320 mm × 180 mm | – | – | Wood, Solid wood, Panels |
| Edge bandingJoining | – | 9 m/min (feed speed) × 50 mm | – | – | Wood, Panels, Coiled edge banding, Solid wood (strips) |
| Wide belt sandingSurface | – | – | – | – | Wood |
| Edge sandingSurface | – | – | – | – | Wood |
| Surface brushing/profiling (brushing machine)Surface | – | – | – | – | Wood |
| Shredding of wood wasteOther | – | – | – | – | Wood waste (moisture 8 % - 17 %) |
| Briquette pressing (chips)Other | – | – | – | – | Wood chips |
| Extraction/dust removal (vacuum, bag, filter base)Other | – | – | – | – | Chips, Wood dust |
| Assembly/interior fitting and door manufacturing (CNC)Assembly | – | 1300 mm | – | – | Solid wood, Panels |
35 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC boring centre | VITAP K3 | – | X unlimited, Y 1250 mm, Z 50 mm; panels up to 40 kg; 5 kW electrospindle (6 kW S6), ISO 30, | – | Vauderens, Switzerland |
| 6-sided CNC boring centre | VITAP Leonardo | – | Passage width 1300 mm, mortising up to 160 mm | – | Vauderens, Switzerland |
| CNC machining centre (Jet Elite) | Casadei Jet Elite | – | Working area 3115-1320-180 mm, 9.5 kW electrospindle (S1-S6), 12 vertical spindles, 6 spindles | – | Vauderens, Switzerland |
| 4/5-axis CNC machining centre (Jet Master T) | Casadei Jet Master T | – | 3, 4 and 5-axis electrospindle | – | Vauderens, Switzerland |
| Sliding table saw | Top standard machines XENIA 70 | – | Max. blade 450 mm (opt. 550 mm), max. cutting height 150 mm (opt. 200 mm), fence 1270 mm, 7 kW | – | Vauderens, Switzerland |
| Sliding table saw | Top standard machines XENIA 40X | – | Rip fence table 3200 mm, blade 400 mm, max. cut 140/97 mm, 7 kW | – | Vauderens, Switzerland |
| Tilting circular saw | Top standard machines SC20 | – | Blade 315 mm, max. cut 100-68 mm, table 1020x325 mm, 4 kW | – | Vauderens, Switzerland |
| Tilting spindle moulder | Top standard machines F255 | – | Table 1200x780 mm, max. tool 250/300-350 mm, 900-12000 rpm, 7.5 kW | – | Vauderens, Switzerland |
| Tilting spindle moulder | Top standard machines F25 | – | Table 2560x810 mm, 5 speeds 3000-10000 rpm, 7 kW | – | Vauderens, Switzerland |
| Fixed spindle moulder | Casadei-Busellato F 230 | – | Table 1200x730 mm, 3000-10000 rpm, profiling tool 250 mm, 7/8 kW | – | Vauderens, Switzerland |
| Fixed spindle moulder | Casadei-Busellato F 235 | – | Table 1200x730 mm, 3000-10000 rpm, 7/8 kW | – | Vauderens, Switzerland |

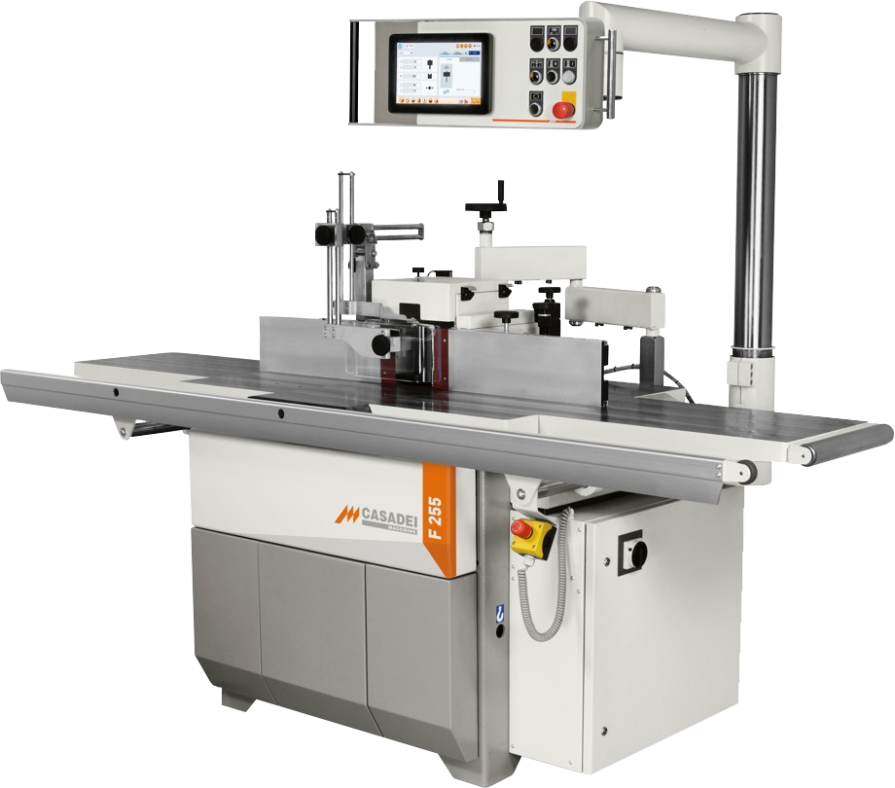

| Tilting spindle moulder ±45.5° | Casadei-Busellato F 255 | – | Table 1200x780 mm, 900-12000 rpm, 7.5 kW | – | Vauderens, Switzerland |
| Automatic edge bander | Casadei E450 | – | 7 m/min, panel height 45 mm, coiled edge banding 3 mm, solid wood strip 5 mm, length 2.30 m | – | Vauderens, Switzerland |
| Automatic edge bander (EVA/PUR) | Casadei E550T | – | 9 m/min, panel height 50 mm, edge banding 3 mm, solid wood strip 5 mm, length 3.2 m | – | Vauderens, Switzerland |
| Automatic edge bander (EVA/PUR, TRIA unit) | Casadei Kronos 60.0 | – | 12 m/min, panel height 60 mm, edge banding 3 mm, length 3.6 m | – | Vauderens, Switzerland |
| Combined 5-operation machine | C400 | – | Jointer 400x1800, thickness planer passage 220 mm, saw blade 300 mm, spindle 30 mm | – | Vauderens, Switzerland |
| 4-sided moulder (automatic moulding machine) | MATRIX 230X | – | – | – | Vauderens, Switzerland |
| Jointer-thickness planer | Casadei PFS 520 | – | – | – | Vauderens, Switzerland |
| Band saw | Casadei Aura | – | – | – | Vauderens, Switzerland |
| Edge sanding machine | Rehnen RS-2010 / RK 1-2 | – | – | – | Vauderens, Switzerland |
| Brushing machine | Ecoline Windsand / Profilsand / Rustikmat | – | – | – | Vauderens, Switzerland |
| Mono-rotor shredder | COMAFER DINAMIC 600 EVO | – | Roller 600x250 mm, 100 rpm, hopper 1050x600 mm, 12.5 kW, output 300 kg/h, weight 1600 kg | – | Vauderens, Switzerland |
| Automatic power feeder (fixed speeds) | Maggi STEFF 2034 | – | 3 rollers 120x60 mm, speeds 4-8-11-22 m/min, motor 0.75 kW | – | Vauderens, Switzerland |
| Automatic power feeder (variable speeds) | Maggi VARIOSTEFF 4 | – | 4 rollers 120x60 mm, speeds 3 to 18 m/min (33 m/min optional), motor 0.75 kW | – | Vauderens, Switzerland |
| Vacuum extraction system | Veneta Impianti | – | ATEX / SUVA compliant | – | Vauderens, Switzerland |
| Bag dust collector (sleeve filter) | Veneta Impianti FMV-SL | – | galvanized structure, filtration of medium and coarse dusts | – | Vauderens, Switzerland |
| Extraction system with filter base | Veneta Impianti | – | custom-made, fire damper, ATEX container | – | Vauderens, Switzerland |
| Lift table | Rehnen Zeus 1900x740 | – | Capacity 300 kg, height 400-1010 mm, frame 1900x740 mm | – | Vauderens, Switzerland |
| Lift table | Rehnen Herkules 1200x740 | – | Capacity 300 kg, height 400-1010 mm, frame 1200x740 mm | – | Vauderens, Switzerland |
| Paint rack/cart | MASTERFLEX MASTERFLEX mobile rack | – | Capacity 600 kg, width 1770 mm | – | Vauderens, Switzerland |
| Paint rack/cart | VARIOFLEX VARIOFLEX | – | Capacity 400 kg, extendable width 200-2000 mm | – | Vauderens, Switzerland |
| Wall mount | Wall mount | – | Capacity 200 kg, depth 870 mm, height 1700 mm | – | Vauderens, Switzerland |
| Handling jib crane | – | – | custom-made | – | Vauderens, Switzerland |
| Briquette press | – | – | – | – | Vauderens, Switzerland |
| Heavy-duty thickness planer | SICAR / CASADEI | – | – | – | Vauderens, Switzerland |
