About Rehnen Maschinenbau
Rehnen GmbH & Co. KG is a mechanical engineering company with over 50 years of experience, specializing in the development and manufacture of edge grinding machines, belt sanders and profile grinding machines for wood and metal processing. The portfolio includes edge processing automation systems, round timber sanding machines, brush sanding and polishing machines, as well as transport equipment such as lifting tables and shelf trolleys with an ergonomic, back-friendly design. All machines are manufactured in the company's own plant in Heede/Ems, which also makes custom-built solutions to customer specifications possible. The machines are aimed primarily at joineries, staircase builders and metalworking companies; the products are sold worldwide. The grinding units are made of solid cast iron and contribute to consistent surface quality.
- Site
- Heede / Ems
- Processes
- Custom-built solutions / special requirements, Lifetime spare parts supply, GS and CE testing, Comprehensive advice and price inquiries
- Materials
- Cast iron, Steel, Stainless steel, Plastics, Non-ferrous metals, Wood
- Certificates
- GS tested, CE tested, 5-year warranty, Lifetime spare parts supply
- Industries
- Wood processing, Metal processing, Joinery/Craft trades, Staircase construction
- 01
Design and development
- 02
Mechanical manufacturing in the company's own plant
- 03
Machine assembly
- 04
GS and CE testing
- 05
Sales and export sales
- 06
Lifetime spare parts supply
Materials and Processes
Cast iron
Solid grinding units made of cast iron ensure permanently good grinding results and long service life.
Steel
Processing of steel sheets and profiles on the through-feed machines of metal processing.
Stainless steel
Processed on the metal edge grinding machines for deburring and edge grinding.
Non-ferrous metals
Can be processed on the through-feed edge grinding machine KPM.
Plastics
Can be processed on the metal machines, e.g. for deburring cut and separation edges.
Wood
Material of the wood processing machines, among other things for edges, radii and shaped parts in joinery and staircase construction.
Locations
Heede / Ems
DEHeadquarters, development and production
- Part weight / size
- Workpieces up to 5000 mm length (KBA)
- Lot size
- One-off production and custom-built solutions
- Materials
- Cast iron, steel, stainless steel, non-ferrous metals, plastics

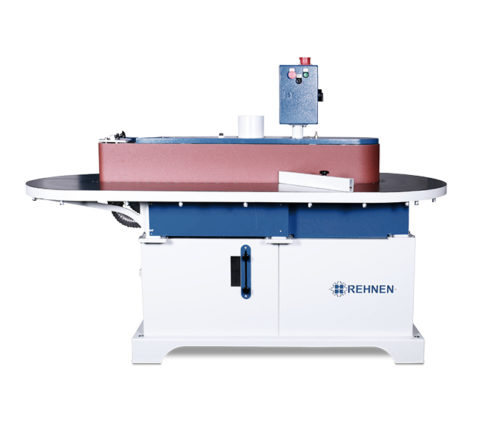

- Edge grinding machines SK-1, SK-2, R1, Junior R1, R-300, RS-2010
- Edge processing automation system KBA

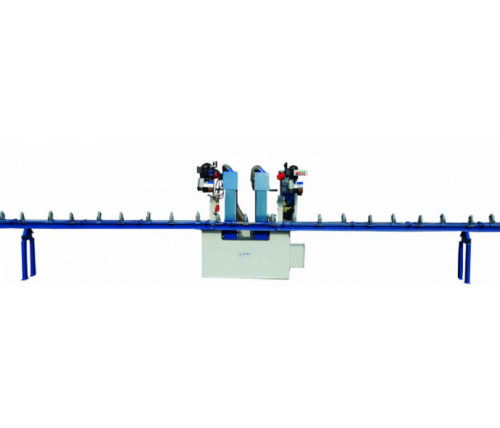

- Round timber sanding machine RSM-1
- Sanding and polishing machine PSM-1
- Metal edge grinding machine KPM
- Metal special edge grinding machine MSK-1
Machines and Products
Inside the production
Industries
12 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

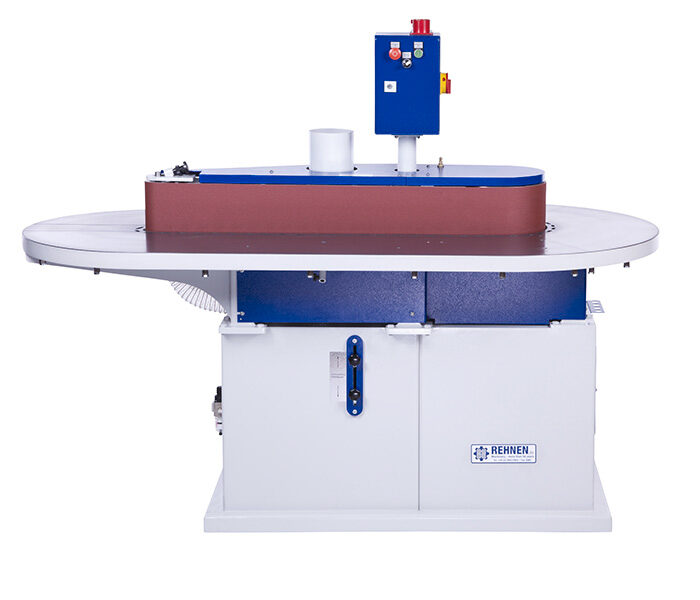

| Edge grinding machine | Rehnen SK-1 | – | Radii 80/300/1000 mm, belt 150×2700 mm | – | Heede/Ems |

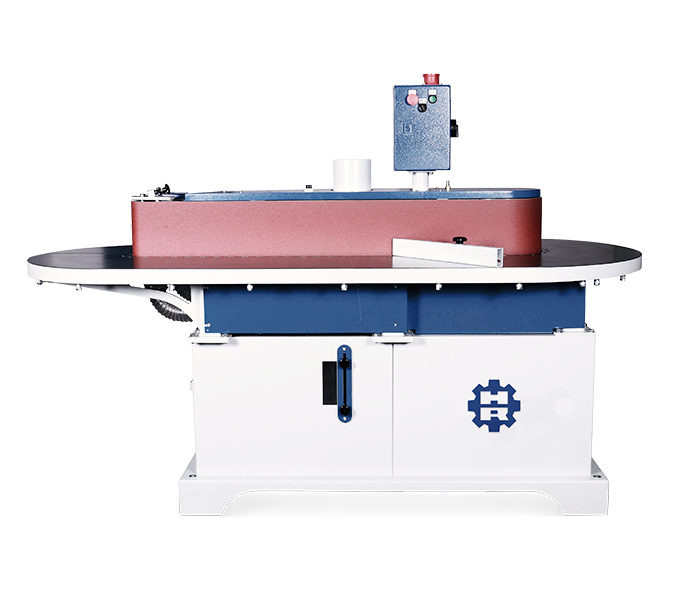

| Edge grinding machine | Rehnen SK-2 | – | Radii 80/300/1000 mm, belt 200×3200 mm, table 2200×1000 mm | – | Heede/Ems |

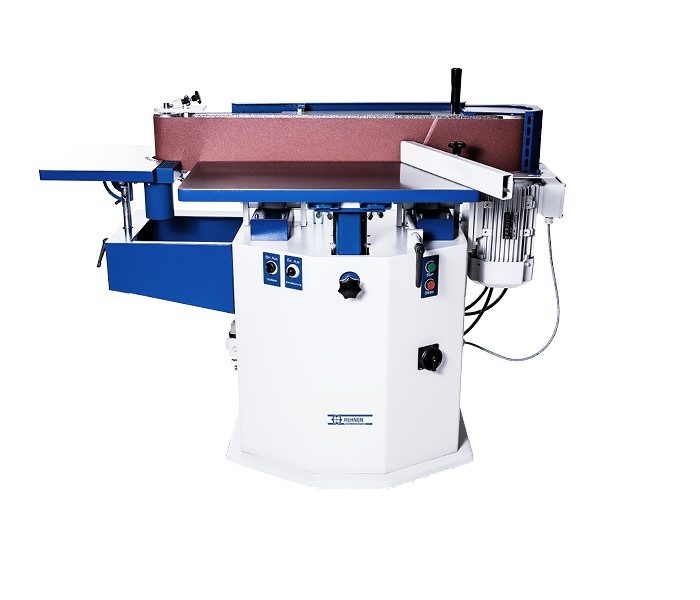

| Edge grinding machine | Rehnen R1 | – | Belt 150×2280 mm, swiveling 90–135° | – | Heede/Ems |

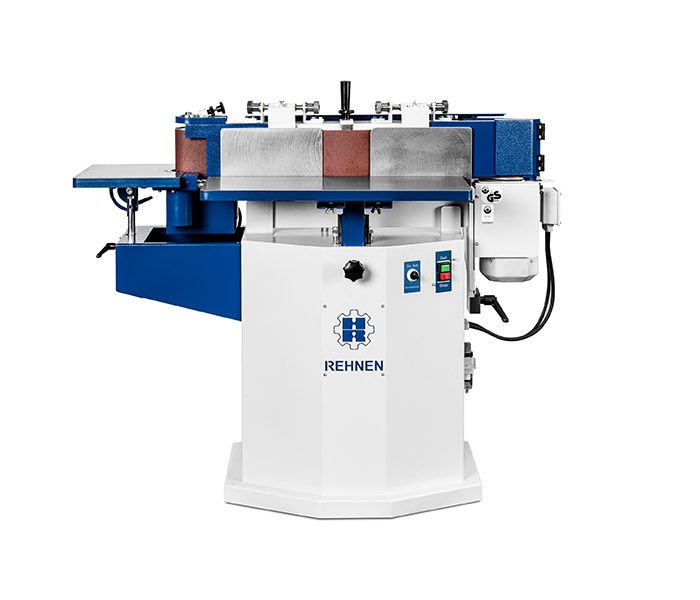

| Edge grinding machine | Rehnen Junior R1 | – | Belt 150×2280 mm, swiveling 90–180° | – | Heede/Ems |

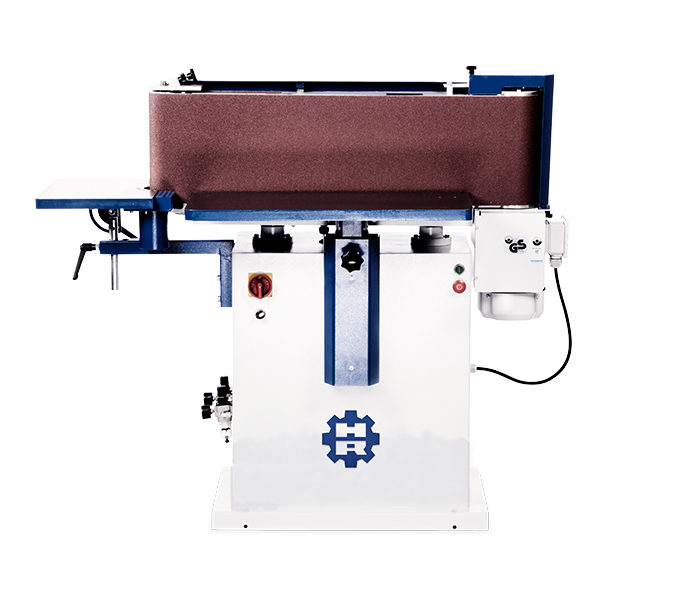

| Edge grinding machine | Rehnen R-300 | – | Belt 300×2280 mm, workpiece height up to 300 mm | – | Heede/Ems |

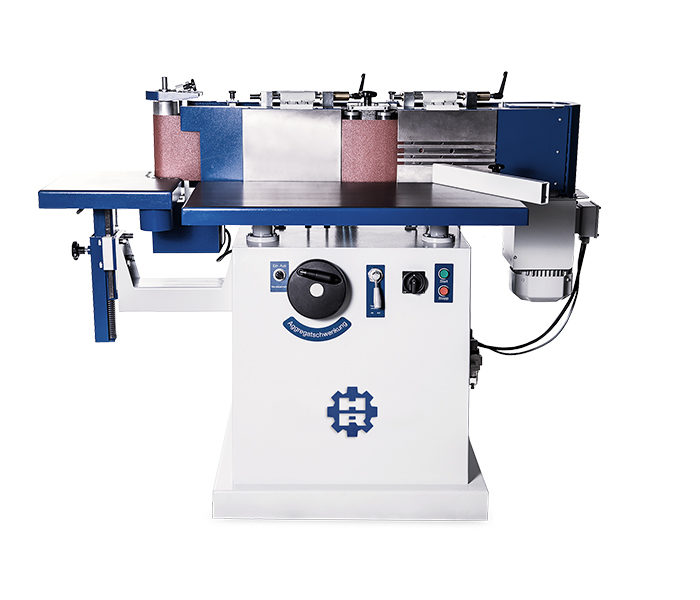

| Edge grinding machine | Rehnen RS-2010 | – | Belt 200×2760 mm | – | Heede/Ems |

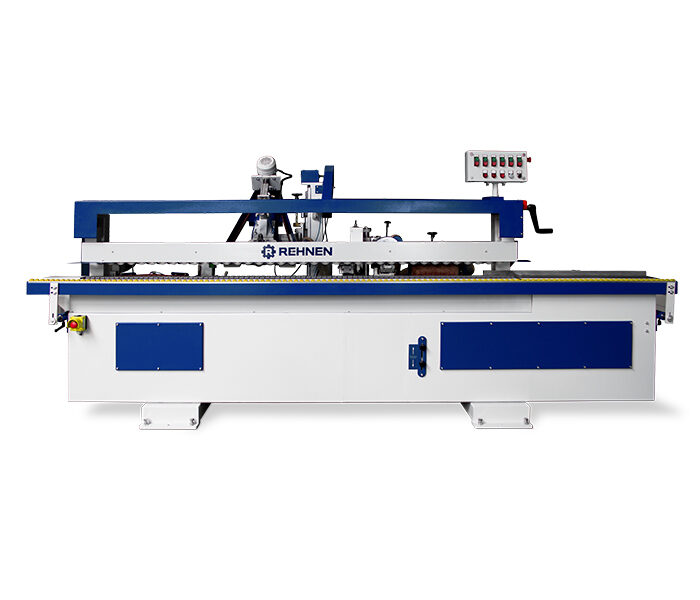

| Edge processing automation system | Rehnen KBA | – | Material thickness 10–60/20–90 mm, workpieces up to 100 mm height, 5000 mm length | – | Heede/Ems |
| Round timber sanding machine | Rehnen RSM-1 | – | Belt 150×2280 mm | – | Heede/Ems |
| Sanding and polishing machine (brush sanding machine) | Rehnen PSM-1 | – | Brush Ø max. 350 mm, width max. 275 mm | – | Heede/Ems |
| Edge grinding machine (metal, through-feed) | Rehnen KPM | – | Material thickness 0–120 mm, min. sheet 100×50 mm, min. profile tube 50×50 mm, feed rate 3–10 m/min | – | Heede/Ems |
| Metal special edge grinding machine | Rehnen MSK-1 | – | Belt 150×2700 mm, radii 80/300 mm, curved back panel r=1000 mm | – | Heede/Ems |
| Lifting table/workbench (transport device) | Rehnen Ursus with workbench | – | Load capacity 300 kg, lifting height 400–1010 mm (workbench 530–1140 mm) | – | Heede/Ems |
Additional services
Quality and Standards
The machines are GS and CE tested; safety in accordance with the Machinery Directive is confirmed by experts. Rehnen grants a 5-year warranty on all machines as well as lifetime spare parts supply.
| Evidence | Heede / Ems |
|---|---|
| GS tested | |
| CE tested | |
| 5-year warranty | |
| Lifetime spare parts supply |
