CNC manufacturing of optical lenses, filters and special optics made from technical glasses in Brokdorf.
Reichmann Feinoptik GmbH
Brokdorf (Dorfstraße 25)New on Amplifa
About Reichmann Feinoptik
Reichmann Feinoptik GmbH manufactures optical components from technical and optical glasses in Brokdorf: lenses, achromats, projection objectives, colored glass filters (bandpass, longpass, shortpass, neutral and heat protection filters) as well as special optics such as cylindrical lenses, round rods up to 1.150 mm in length, plane-parallel plates, sight glasses, wedge plates and glass paths, as well as diffusing and opal discs. Materials are optical glass, colored glass filters, quartz glass, Duran and borosilicate glass; in addition, thermally tempered colored glass filters and flat glasses are offered. Production combines proven fine optics craftsmanship with modern CNC machines and includes cutting, edge working, beveling, polishing, centering and cementing of supplied optical parts. Thin films such as anti-reflection coatings, mirror coatings, beam splitters and filter coatings refine the components. In-house inspection covers intermediate and final inspection of the lenses as well as transmission measurements with a spectrophotometer. Customers include companies from colorimetry, optoelectronics, analytical technology, medical technology, the printing industry, safety engineering, sensor technology and film technology, as well as research institutes; around 20 employees ensure delivery according to drawings and deadlines.
- Site
- Brokdorf
- Processes
- Manufacturing of optical lenses (spherical lenses, CNC), Achromats, Projection objectives, Colored glass filters (bandpass, longpass, shortpass, neutral, heat protection filters), Cylindrical lenses, Round rods up to 1.150 mm in length, Plane-parallel plates (including cementing), Sight glasses
- Materials
- Optical Glass, Colored Glass Filter, Quartz Glass, Duran, Borosilicate Glass, Flat Glass, Thermally tempered colored glass filters and flat glasses, CNC Edge and Surface Machining
- Certificates
- In-house intermediate and final inspection, Transmission measurement (spectrophotometer)
- Founded
- 1924
- Employees
- 20
- Industries
- Colorimetry, Optoelectronics, Analytical technology, Medical technology, Printing industry, Safety engineering
- 01
Design and development of optical components
- 02
Cutting and edge working
- 03
CNC edge and surface machining
- 04
Beveling
- 05
Polishing of lenses
- 06
Centering of lenses
- 07

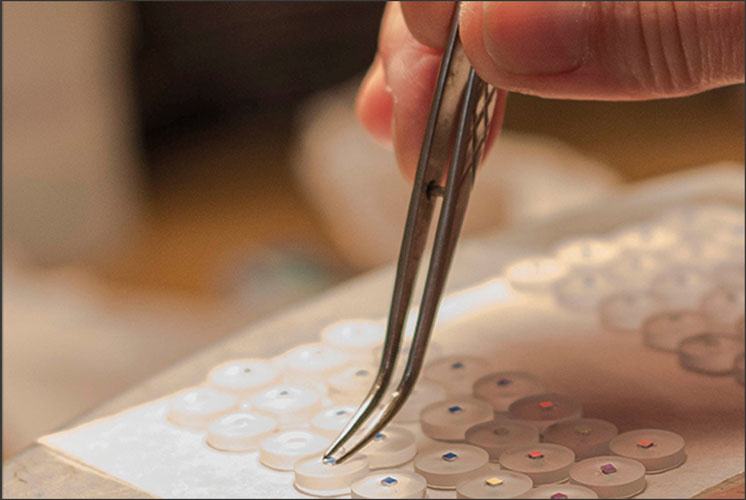

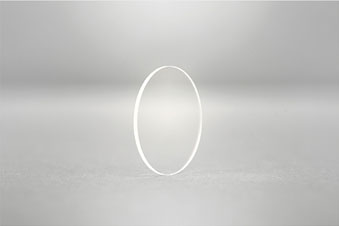

Thin films (anti-reflection, mirror coatings, beam splitters, filters)
- 08
Thermal tempering
- 09
Intermediate and final inspection
- 10
Transmission measurement
Materials and Processes
Optical Glass
Base material for lenses, achromats, cylindrical lenses and other optical elements.
Colored Glass Filter

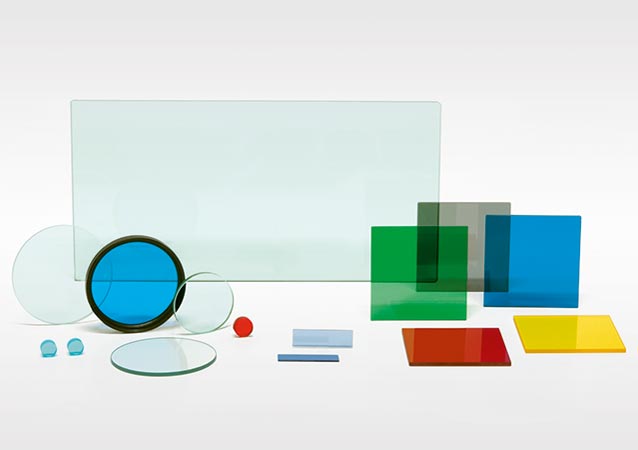

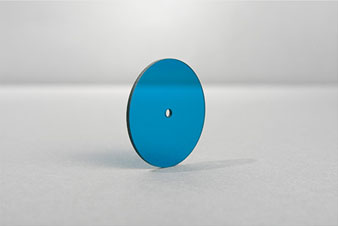

Filter material for bandpass, longpass, shortpass, neutral and heat protection filters.
Quartz Glass
For lenses, filters and blanks with special transmission-related requirements.
Duran
Borosilicate glass for technical components such as filters and flat glasses.
Borosilicate Glass
Used in filters and sight glasses with high chemical and thermal resistance.
CNC Edge and Surface Machining
Modern CNC manufacturing, including spherical lenses, combined with classic fine optics craftsmanship.
Thin-Film Coating
Anti-reflection coatings, mirror coatings, beam splitters and pass filters as finishing for optical components.
Transmission Measurement
Spectrophotometric testing of the transmission of manufactured optics.
Locations
Brokdorf
DEProduction and Administration
- Materials
- Optical glass, colored glass filters, quartz glass, Duran, borosilicate glass
- CNC machines for edge and surface machining of optical elements

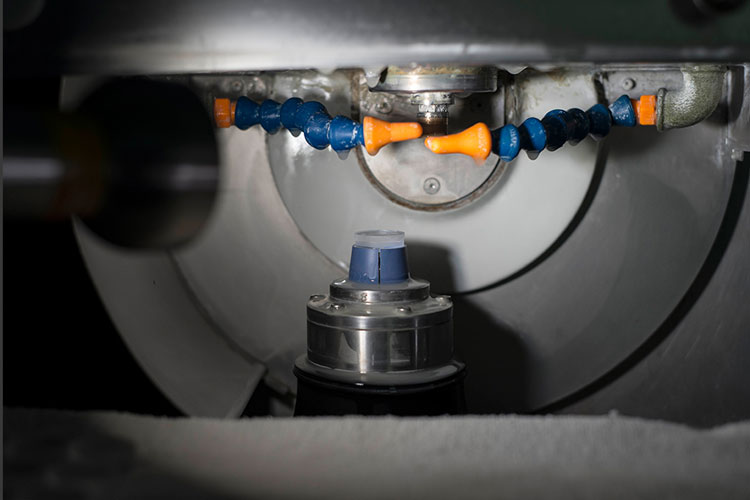

- CNC manufacturing of spherical lenses

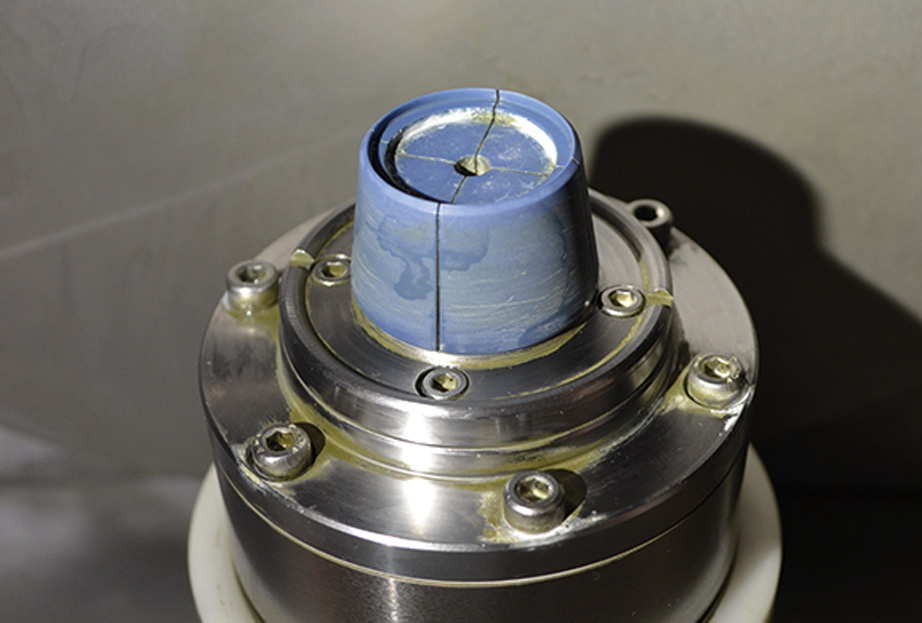

- Precision chucks for machining optical components
- Perkin Elmer Lambda 1050 spectrophotometer

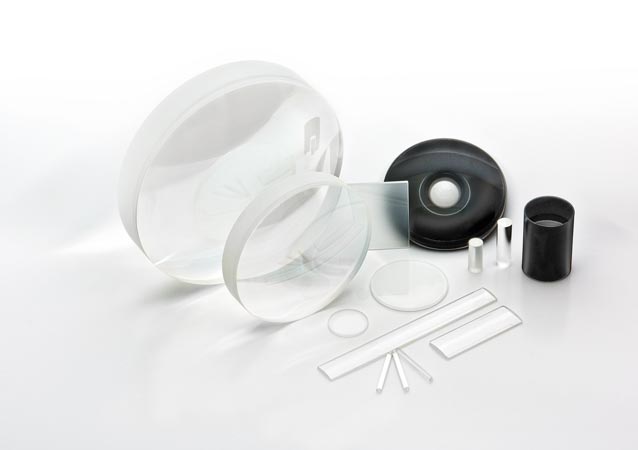

Optical Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacturing of optical lenses (spherical lenses, CNC)Machining | – | – | – | – | Optical glass, Quartz glass |
| AchromatsAssembly | – | – | – | – | Optical glass |
| Projection objectivesAssembly | – | – | – | – | Optical glass |
| Colored glass filters (bandpass, longpass, shortpass, neutral, heat protection filters)Machining | – | – | – | – | Colored glass filter, Duran, Borosilicate glass, Quartz glass |
| Cylindrical lensesMachining | – | – | – | – | Optical glass |
| Round rods up to 1.150 mm in lengthMachining | – | 1.150 mm | – | – | Optical glass, Quartz glass |
| Plane-parallel plates (including cementing)Machining | – | – | – | – | Optical glass, Quartz glass, Flat glass |
| Sight glassesMachining | – | – | – | – | Optical glass, Borosilicate glass |
| Wedge platesMachining | – | – | – | – | Optical glass |
| Glass pathsMachining | – | – | – | – | Optical glass |
| Diffusing and opal discsMachining | – | – | – | – | Opal glass |
| Cutting of supplied optical parts (edge working, rounding, polishing)Machining | – | – | – | – | Optical glass, Quartz glass, Colored glass filter |
| BevelingMachining | – | – | – | – | Optical glass |

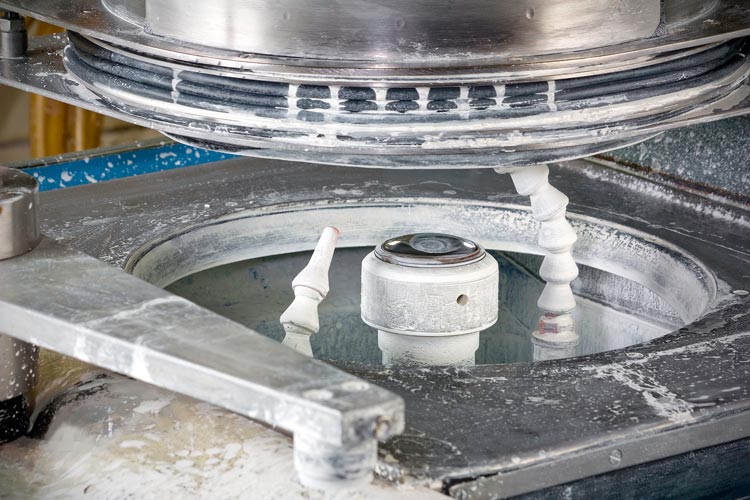

| Polishing of lenses (plano-convex, biconvex)Machining | – | – | – | – | Optical glass |
| Centering of lenses (meniscus lens)Machining | – | – | – | – | Optical glass |
| Single-layer and MC anti-reflection coatingsSurface treatment | – | – | – | – | Optical glass |
| Metallic and dielectric mirror coatingsSurface treatment | – | – | – | – | Optical glass |
| Neutral and dichroic beam splitters (coating)Surface treatment | – | – | – | – | Optical glass |
| Shortpass, longpass and bandpass filter coatingsSurface treatment | – | – | – | – | Optical glass |
| Thermal tempering of colored glass filters and flat glassesHeat treatment | – | – | – | – | Colored glass filter, Flat glass |
| Intermediate and final inspection of optical lensesTesting | – | – | – | – | – |
| Transmission measurement with spectrophotometerTesting | – | – | – | – | – |
| Development of optical components made from technical glassesEngineering | – | – | – | – | Optical glass, Colored glass filter, Quartz glass, Duran, Borosilicate glass |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC machine for optical elements (edge and surface machining) | – | – | – | – | Brokdorf |
| CNC manufacturing of spherical lenses | – | – | – | – | Brokdorf |
| Spectrophotometer | Perkin Elmer Lambda 1050 | – | – | – | Brokdorf |
| Precision chuck for machining optical components | – | – | – | – | Brokdorf |
Additional services
Quality
Every production run includes intermediate and final inspection of optical lenses as well as transmission measurements with a Perkin Elmer Lambda 1050 spectrophotometer. Delivery according to drawings and deadlines is ensured by 20 employees in development and production.
| Evidence | Brokdorf |
|---|---|
| In-house intermediate and final inspection | |
| Transmission measurement (spectrophotometer) |
History
- 1924
Company founded; Reichmann Feinoptik has been manufacturing optical components since 1924.
