Custom systems for industrial dedusting, odor reduction and pneumatic material transport.
Riedel Filtertechnik GmbH
Leopoldshöhe (headquarters, production, training center, technical center) · Künsebeck/Halle (Westf.) (production plant)New on Amplifa
About Riedel Filtertechnik
Riedel Filtertechnik GmbH, headquartered in Leopoldshöhe near Bielefeld, is a German company with a long tradition, founded in 1920, specializing in plant and mechanical engineering. With around 130 employees, the company develops and manufactures customized systems for industrial dedusting, odor reduction and pneumatic transport of bulk materials. The portfolio includes bag, cartridge and pocket filters with clean-gas dust contents below 1.0 mg/m³, Venturi scrubbers, cyclone and swirl separators, central vacuum cleaning systems as well as patented technologies such as SACU tobtronic®, FPC pipe couplings, the cold plasma odor reduction system COPLAS clean and product recovery solutions (WinU⁺, TIRS). Services also include automation including in-house control cabinet manufacturing, software development, machine and special plant engineering, as well as lifetime services with spare parts, maintenance, training and retrofits. Core markets are the tobacco, tire/rubber, sugar, food, pet food and compound feed industries; the company supplies over 100 countries. The main site in Leopoldshöhe houses production, a training center and its own research and development technical center, with a further production plant in Künsebeck, Halle (Westf.).
- Site
- Leopoldshöhe
- Processes
- Industrial dedusting (bag filters, cartridge filters, pocket filters), Venturi scrubbers (dust filtration in moist exhaust air streams), Cyclone & swirl separators (centrifugal force separation), Cold plasma technology COPLAS clean (odor reduction), Pneumatic conveying / suction conveying (vacuum conveying) of bulk material, Conveying air control with SACU tobtronic®, Process air control with PAC (Process Airflow Control), Product recovery with WinU+ (processing of winnower output using a cutting mill)
- Materials
- Dusts, Rubber dusts, Silica, Carbon black, Cut tobacco / tobacco blends, Sugar (crystalline sugar), Mild steel, Stainless steel
- Certificates
- ATEX (Directive 94/9/EC, rotary valves), CE conformity, ISO 9001
- Founded
- 1920
- Employees
- 130
- Industries
- Tobacco, Tire/Rubber, Sugar, Food, Pet Food, Compound feed
- 01
Engineering & concept development
- 02

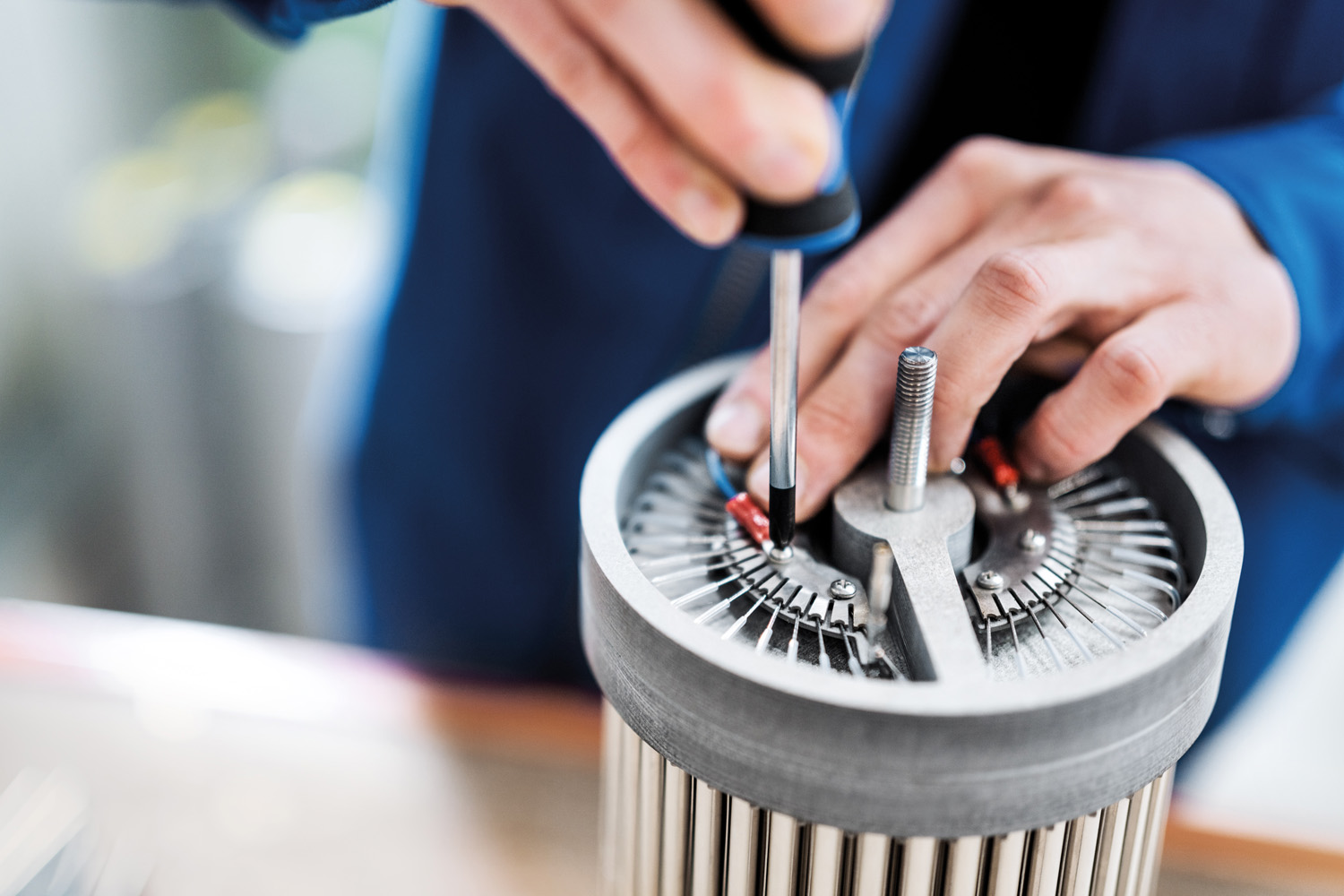

Research & development in the company's own technical center
- 03
Machine and special plant engineering incl. control cabinet manufacturing
- 04
Automation & software development
- 05
Assembly & commissioning
- 06
Maintenance, spare parts & retrofits
Processes & Materials
Stainless steel
Used for discharge elements such as rotary valves and discharge screws, especially for hygienic and corrosion-exposed applications.
Mild steel
Proven construction material for plant components and spare parts in standard applications.
Aluminium
Used for aluminium pipes, e.g. in on-site customizing of mobile systems.
Filter media
Individually manufactured filter bags, filter hoses and filter cartridges for dedusting systems.
Cold plasma technology COPLAS clean
Patented non-thermal plasma technology for chemical-free odor reduction in exhaust air streams.
Conveying air control SACU tobtronic®
Patented control of conveying air for gentle pneumatic bulk material transport.
Process air control PAC/MAC
Automated control of process air volume flows from 180 to 7,000 m³/h for energy savings.

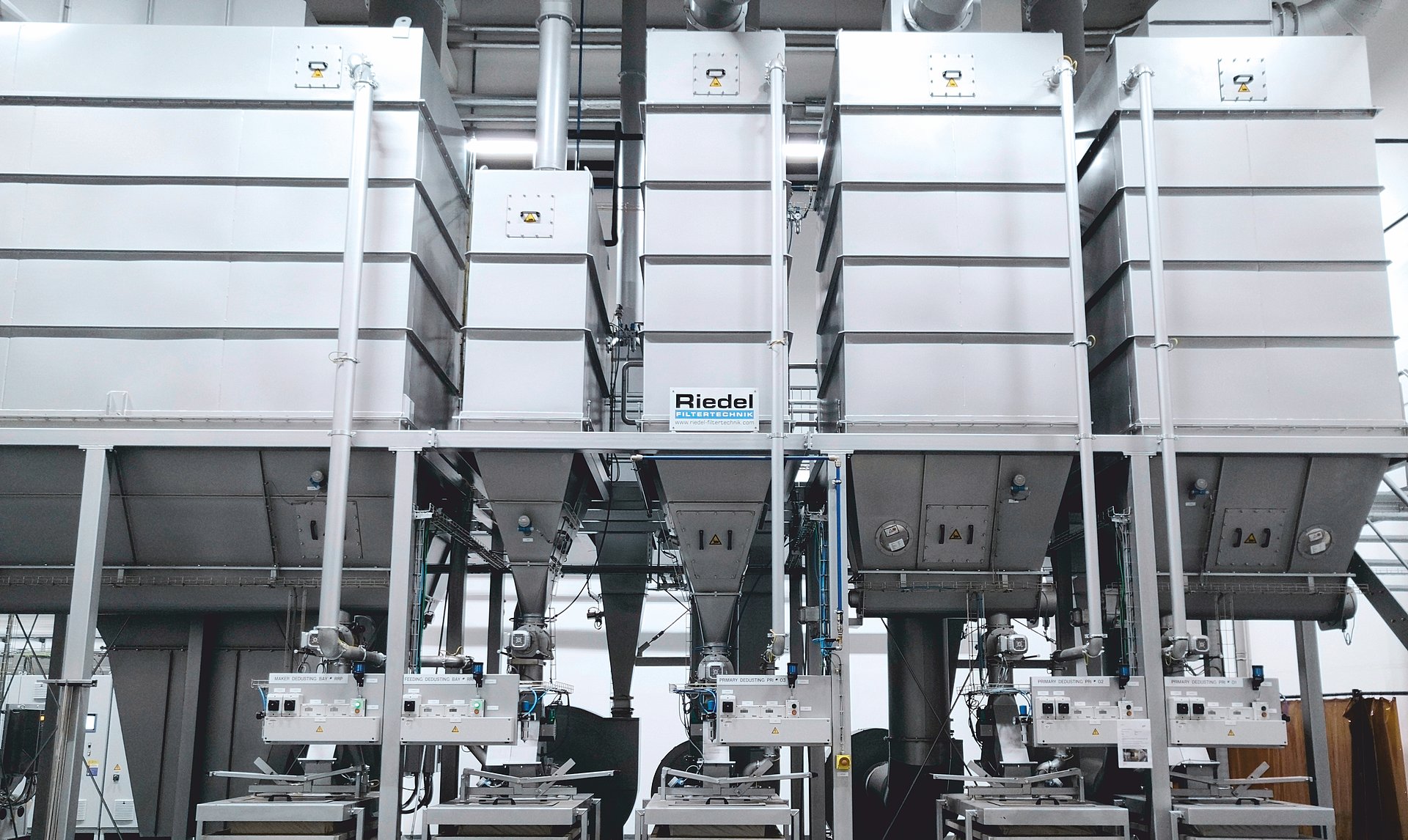

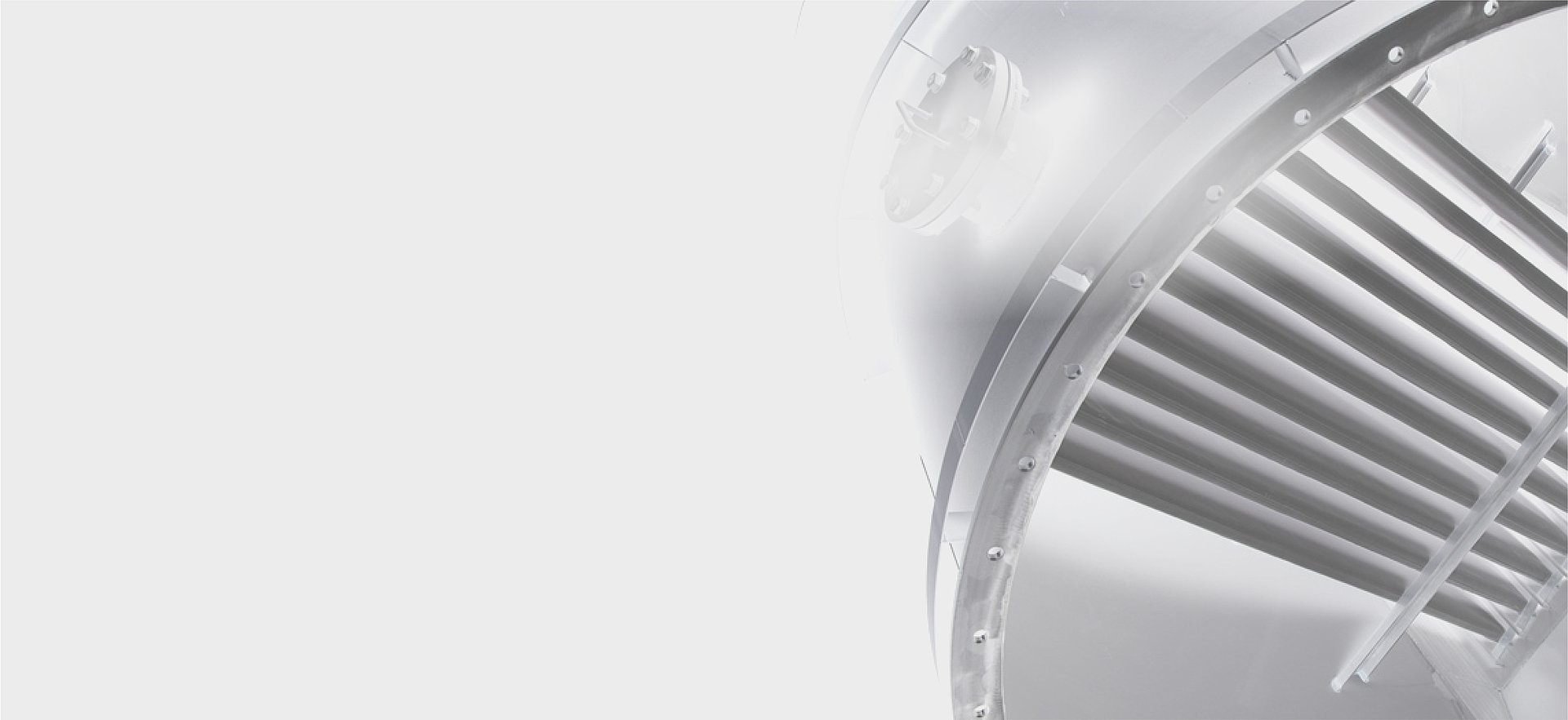

JET-Matic filter series (JMT)
Bag filter series developed since 1975 and still the core product of the dedusting technology.
Locations

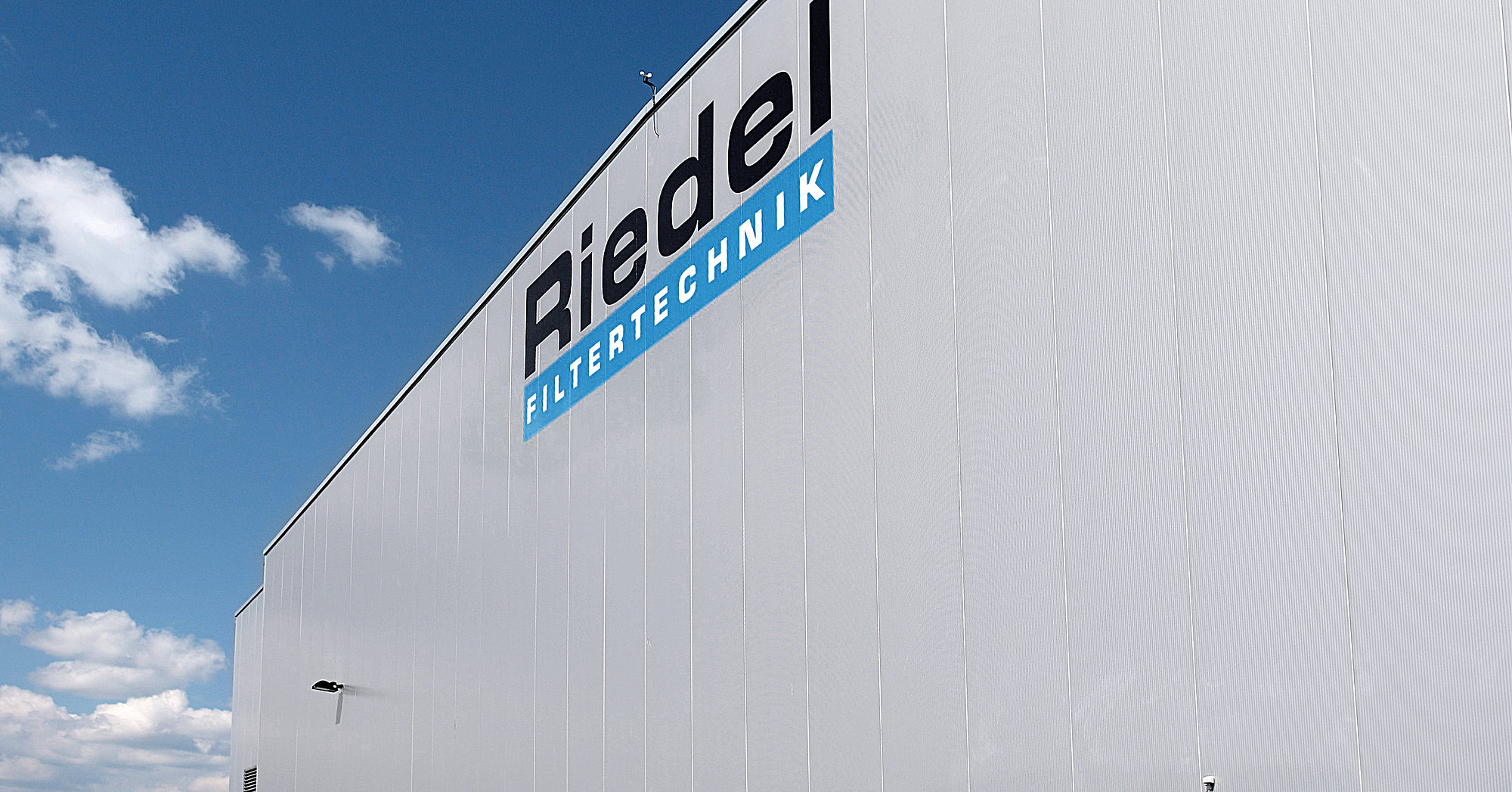

Leopoldshöhe
DEHeadquarters with production, training center, technical center (R&D) and administration
- Materials
- Mild steel, stainless steel, aluminium, filter media
- Machine and special plant engineering
- In-house control cabinet manufacturing
- Test and pilot systems in the technical center
Künsebeck (Halle Westf.)
DEProduction plant for large automated systems
Systems & Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Industrial dedusting (bag filters, cartridge filters, pocket filters)Surface | Clean-gas dust content < 1.0 mg/m³ | – | – | – | Dusts, Rubber dusts, Tobacco dust, Sugar dust |
| Venturi scrubbers (dust filtration in moist exhaust air streams)Surface | Clean-gas dust content < 5.0 mg/m³ | – | – | – | Dusts |
| Cyclone & swirl separators (centrifugal force separation)Surface | – | – | – | – | Dry, free-flowing dusts |
| Cold plasma technology COPLAS clean (odor reduction)Surface | Reduction to < 500 OU/m³ | – | – | – | Odor molecules, VOC |

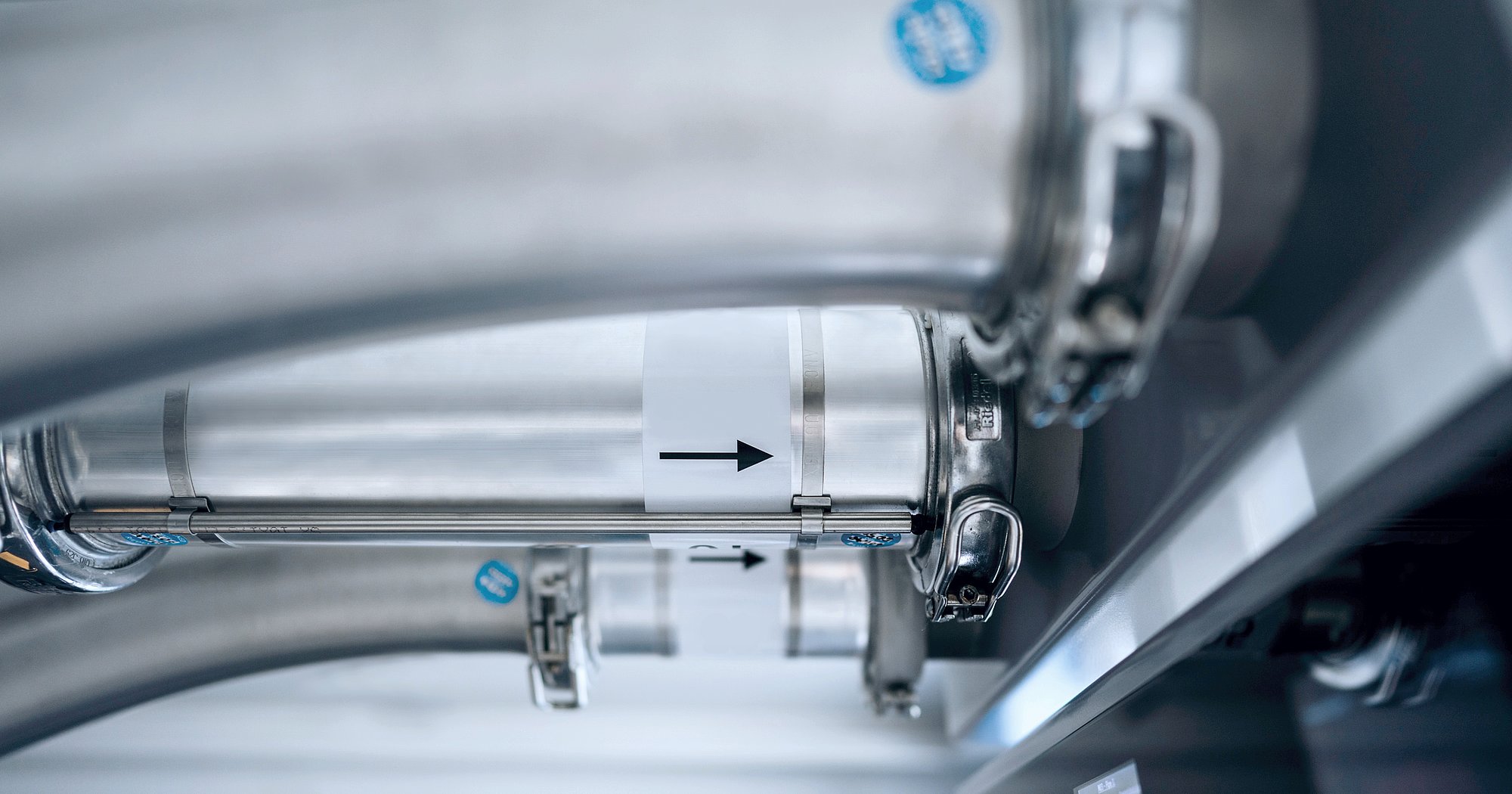

| Pneumatic conveying / suction conveying (vacuum conveying) of bulk materialAssembly | Conveying speed approx. 15–20 m/s | Conveying distances up to 250 meters | – | – | Bulk materials, Powders, Granulates, Pallets, Dusts, Cut tobacco, Silica, Carbon black |
| Conveying air control with SACU tobtronic®Engineering | – | – | – | – | Bulk material, Cut tobacco, Silica |
| Process air control with PAC (Process Airflow Control)Engineering | Volume flows 180 to 7,000 m³/h | – | – | – | Process air |
| Product recovery with WinU+ (processing of winnower output using a cutting mill)Assembly | – | – | – | – | Winnower output (tobacco), Tobacco shorts |
| Tobacco recovery with TIRS (separation/sieving of shorts from the dedusting line)Assembly | Tobacco recovery rates from 0.5% to | – | – | – | Tobacco shorts |
| Blend Selector & T-Switch (pipe stations/pipe diverters for conveying flexibility)Assembly | Pipe diameters 125mm and 154mm | – | – | – | Tobacco blends |
| Central vacuum cleaning system VAC & NetVac® (machine and plant cleaning)Surface | – | – | – | – | Dusts, Bulk material, Production residues |
| Silo conditioning (conditioning of sugar in silos)Engineering | – | – | – | – | Sugar |
| Machine and special plant engineeringEngineering | – | – | – | – | – |
| Automation (process automation, HMI, control cabinet manufacturing)Engineering | – | – | – | – | – |
| Research & development (test and pilot systems, prototype construction in the technical center)Engineering | – | – | – | – | – |
| Maintenance, servicing, assessments, retrofits and spare parts (lifetime services)Assembly | – | – | – | – | – |
| Galvanizing / chrome plating (historical, founding era 1920)Surface | – | – | – | – | Typewriter, automotive and electrical components |
14 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Dedusting system / bag filter JMT (JET-Matic filter series) | Riedel Filtertechnik JET-Matic / JMT | – | – | – | – |
| Cartridge filter | Riedel Filtertechnik | – | – | – | – |
| Pocket filter | Riedel Filtertechnik | – | – | – | – |
| COPLAS clean cold plasma odor reduction system | Riedel Filtertechnik COPLAS clean | >80 system | – | – | – |
| Conveying air control unit SACU tobtronic® | Riedel Filtertechnik SACU tobtronic® | – | – | – | – |
| Process air control unit PAC/MAC | Riedel Filtertechnik PAC (Process Airflow Control) | > 50 PAC- | Volume flows 180 to 7,000 m³/h | – | – |
| Product recovery unit WinU+ | Riedel Filtertechnik WinU⁺ | – | – | – | – |
| Tobacco shorts separator TIRS | Riedel Filtertechnik TIRS | – | – | – | – |
| Pipe station Blend Selector | Riedel Filtertechnik Blend Selector | – | – | – | – |
| Pipe diverter T-Switch | Riedel Filtertechnik T-Switch | – | Pipe diameters 125mm and 154mm | – | – |
| Central vacuum cleaning system VAC with NetVac® hose reels | Riedel Filtertechnik VAC / NetVac® | – | – | – | – |
| COPLAS clean mobile unit (on-site customizing, 100 m³/h) | Riedel Filtertechnik COPLAS clean mobile unit | – | 100 m³/h exhaust air | – | – |
| Roots blowers / fans (spare parts) | Riedel Filtertechnik | – | – | – | – |
| Rotary valves / discharge screws | Riedel Filtertechnik | – | – | – | – |
Additional services
Reference customers
Quality & Safety
Systems are designed for 24/7 continuous operation with fire and explosion protection (including ATEX components in accordance with Directive 94/9/EC) and CE conformity. Assessments and condition reports are carried out with high-quality measuring equipment and industrial cameras; clean-gas values such as < 1.0 mg/m³ (fabric filters) are guaranteed.
| Evidence | Leopoldshöhe |
|---|---|
| ATEX (Directive 94/9/EC, rotary valves) | |
| CE conformity | |
| ISO 9001 |
100 Years of Riedel
- 1920
Founded by Artur Riedel in Bielefeld as a galvanizing company for typewriter, automotive and electrical components
- 1955
Opening of a further plant in Künsebeck, Halle Westphalia, for large automated systems
- 1960
Specialization in dedusting and industrial air filtration
- 1964
Delivery of the first dedusting system
- 1975
Development of the JET-Matic filter series (JMT), still the core product today
- 2000
Development of the SACU, specialization in product transport
- 2001
Market launch of the flash-free pipe connection FPC (Feeding Pipe Coupling)
- 2002
Market launch of the Blend Selector pipe station with Connection Control and Track & Trace
- 2003
Relocation of the headquarters to Leopoldshöhe
- 2005
Market launch of the intelligent filter cleaning system SoftClean
- 2010
Market launch of the SACU tobtronic® for gentle tobacco transport
- 2011
Technologies for silo conditioning of sugar with capacities up to 80,000 t
- 2013

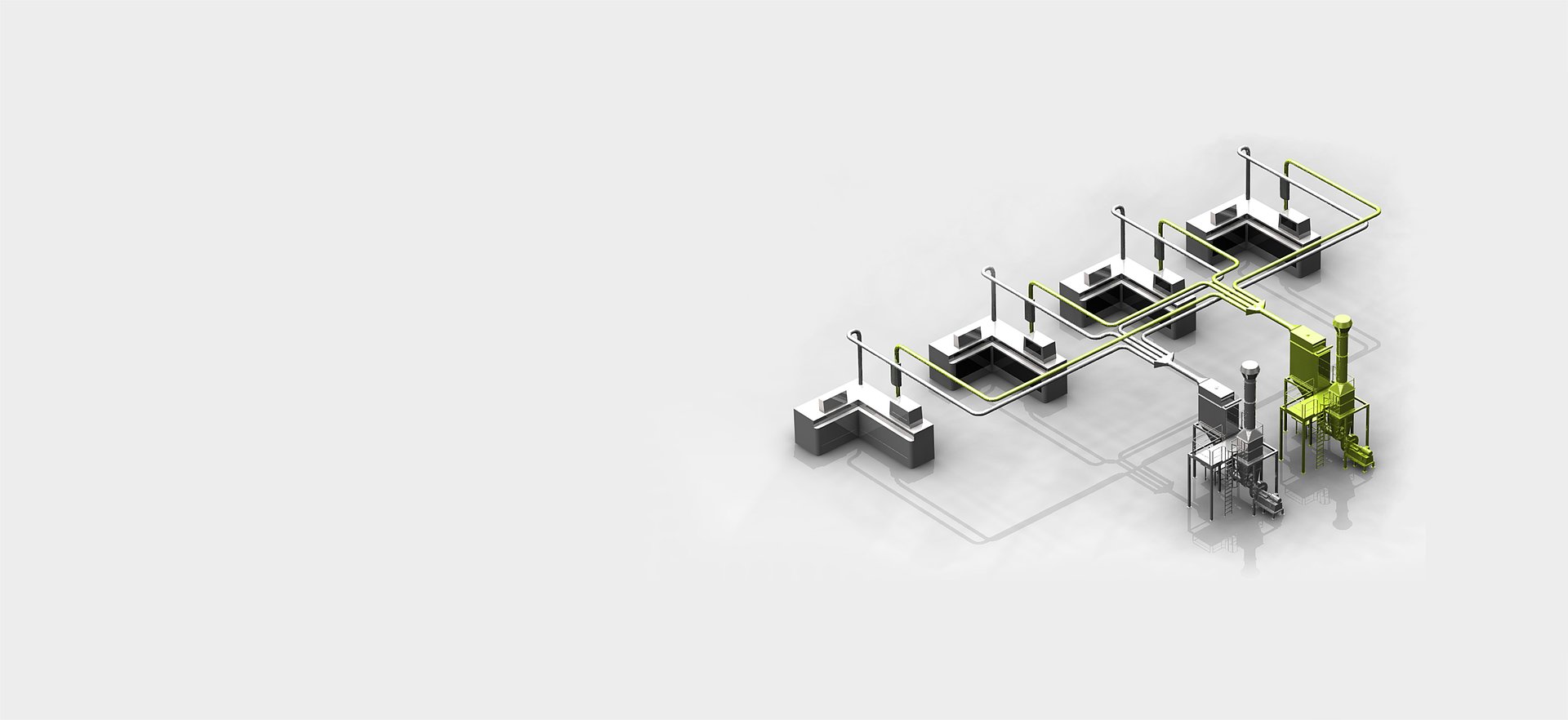

Energy-saving concepts MAC and Eco Mode for volume flow control
- 2014
Product recovery technologies for the tobacco and pleasure products industry
- 2017
New market segment cold plasma COPLAS clean for odor reduction
- 2020
100th company anniversary on October 1
