Control cabinet construction and control systems for machines and plants – planned, built and tested in our own workshop.
Rihatec Systemlösungen GmbH
Kirchheim near MunichNew on Amplifa
About Rihatec
Since 1995, Rihatec Systemlösungen GmbH has been manufacturing control cabinets and control systems in Kirchheim near Munich for machine builders and plant operators. The range of services includes drive control cabinets from direct start to frequency and servo inverters up to 1,600 A, heating and temperature control cabinets with Eurotherm controllers and power controllers, pneumatic cabinets with Festo valve terminals, as well as control system construction including PLC programming and visualization for test rigs, sorting and special-purpose machines. Design is also possible without an existing circuit diagram; from a list of motors, valves and sensors, the cabinet is planned, built and tested. Cabinets are built to DIN EN 61439 or DIN EN 60204-1 and to the requirements of the EMC Directive; every cabinet undergoes an in-house inspection with a test report before delivery. In addition to manufacturing, the company is a Festo Official Partner and Watlow Prime Distributor for Eurotherm products. With more than 100 control cabinets per year, Rihatec supplies customers from the plastics, food and steel industries as well as mechanical and plant engineering throughout Germany.
- Site
- Kirchheim b. München
- Processes
- Control cabinet construction (planning, construction, wiring per customer drawing or requirements, Drive control cabinets (direct start, soft start, frequency and servo inverters up to 1,600 A), Heating control cabinets with Eurotherm controllers and power controllers (temperature control), Pneumatic control cabinets with Festo valve terminals, pre-piped and pre-wired ready for, Control system construction incl. PLC programming and visualization (test rigs, sorting and, Control cabinet inspection before delivery with test report (built to DIN EN 61439 / DIN EN 60204-1), Sales/installation of Eurotherm controllers, power controllers and recorders (also successor, Control cabinet construction
- Materials
- DIN EN 61439, DIN EN 60204-1, EMC Directive, Festo valve terminals, Eurotherm controllers and power controllers
- Certificates
- Component inspection before delivery with test report, Manufacturer inspection, Fixed-price guarantee, Series on documented status
- Founded
- 1995
- Industries
- Mechanical engineering, Plant engineering, Plastics industry, Food industry, Steel industry
- 01
Project clarification (control cabinet specification sheet)
- 02
Fixed-price quotation
- 03
Planning and specification
- 04
Procurement of components
- 05
Assembly and wiring in the workshop
- 06
In-house inspection with test report
- 07
Delivery
Standards and Components
DIN EN 61439
Standard for low-voltage switchgear and controlgear assemblies, to which cabinets are built depending on the application.
DIN EN 60204-1
Standard for the electrical equipment of machines, the basis for control system construction.
EMC Directive
Electromagnetic compatibility requirements are taken into account in control cabinet construction.
Festo valve terminals
Pneumatic components from partner Festo, installed pre-piped and pre-wired.
Eurotherm controllers and power controllers
Temperature control components, delivered individually or installed ready-made in heating cabinets.
Locations
Kirchheim near Munich
DEWorkshop and Sales
- Lot size
- Single units to small series
- Materials
- Components from Festo and Eurotherm
- Control cabinet construction

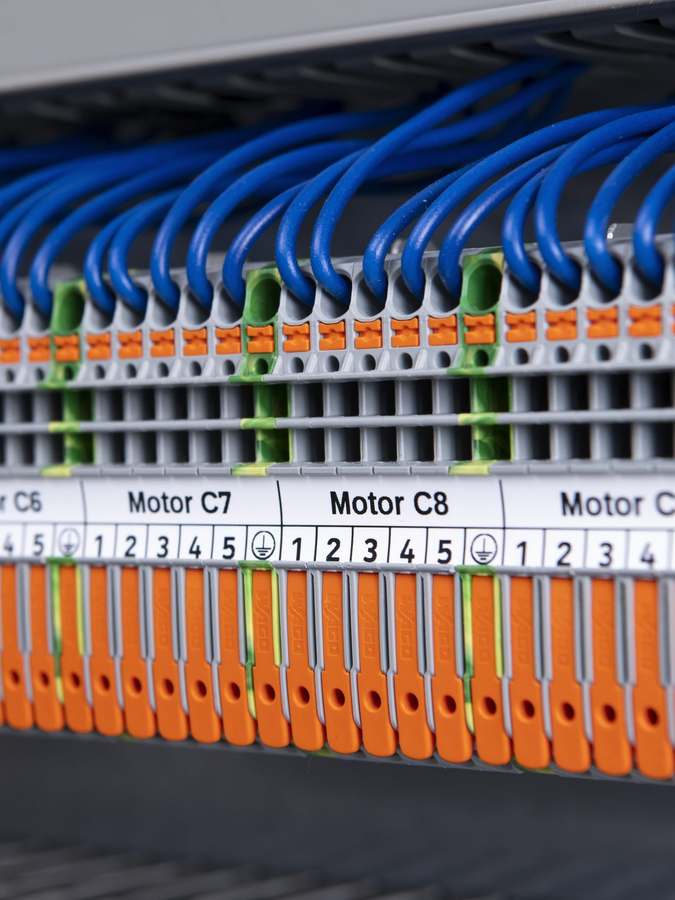

- Wiring
- Testing facility for final inspections

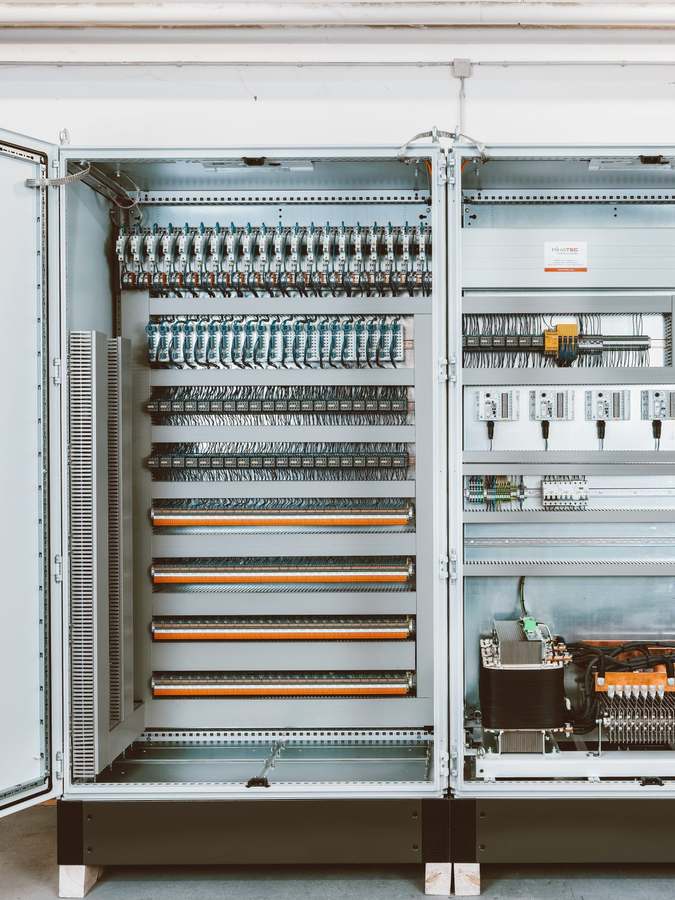

Control Cabinets and Solutions

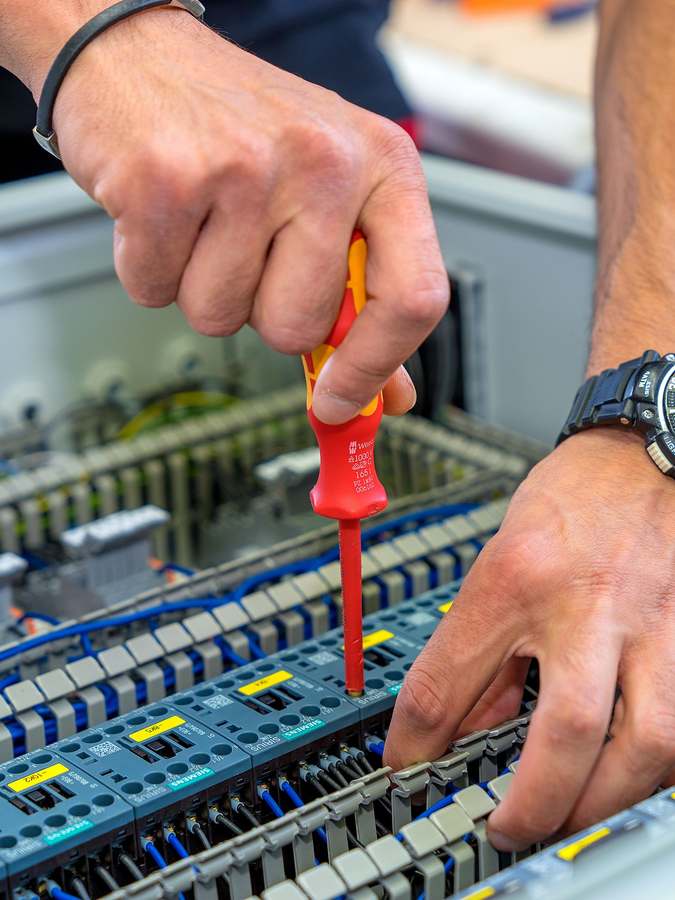

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Control cabinet construction (planning, construction, wiring per customer drawing or requirementsAssembly | – | – | – | 1 cabinet – Series (e.g., small series of 9 | – |
| Drive control cabinets (direct start, soft start, frequency and servo inverters up to 1,600 A)Assembly | – | – | – | – | – |
| Heating control cabinets with Eurotherm controllers and power controllers (temperature control)Assembly | – | – | – | – | – |
| Pneumatic control cabinets with Festo valve terminals, pre-piped and pre-wired ready forAssembly | – | – | – | – | – |
| Control system construction incl. PLC programming and visualization (test rigs, sorting andEngineering | – | – | – | – | – |
| Control cabinet inspection before delivery with test report (built to DIN EN 61439 / DIN EN 60204-1)Testing | – | – | – | – | – |
| Sales/installation of Eurotherm controllers, power controllers and recorders (also successorAssembly | – | – | – | – | – |
Additional services
Quality and Testing
Every control cabinet is inspected in our own workshop before delivery; a test report is available on request. Cabinets are built to DIN EN 61439 or DIN EN 60204-1 and to the requirements of the EMC Directive.
| Evidence | Kirchheim near Munich |
|---|---|
| Component inspection before delivery with test report | |
| Manufacturer inspection | |
| Fixed-price guarantee | |
| Series on documented status |
History
- 1995
Founded in Kirchheim near Munich; for over 30 years, control cabinet construction and control systems for machine builders.
