System partner for vacuum area grippers, vacuum and pneumatic solutions
RIVATEC GmbH
Rinteln-Engern (Berliner Straße 56a)New on Amplifa
System partner for handling technology
RIVATEC GmbH, based in Rinteln-Engern, is a system partner for demanding handling technology with a focus on vacuum and compressed-air technology. The company has been on the market since 1976 and has supported the UniGripper vacuum area gripping system since 1997. Its core business comprises custom area grippers for (de-)palletizing and pick-and-place tasks, which are manufactured on the basis of approved designs and undergo a function test before delivery. The portfolio is complemented by standard area grippers (UniGripper SMS 80/120, lengths up to 6000 mm), special grippers such as BagGripper, CoilGripper, HoverGripper and magnetic M-Gripper, as well as cobot area grippers (Co/Light). In the field of vacuum technology, RIVATEC offers vacuum suction cups, vacuum generators (ejectors, pumps from 0.1–30 kW, side channel blowers 0.25–18.5 kW) and vacuum components; in pneumatics, cylinders, valves, measurement and control technology as well as compressed-air preparation. Customers include special-purpose machine builders and end customers from industries such as wood processing, food and packaging industry, automotive, logistics, mechanical engineering, building materials and chemical industry.
- Site
- Rinteln-Engern
- Processes
- Custom area grippers (UniGripper Customized), Standard area grippers UniGripper SMS 80/120, UniGripper Classic area gripper, UniGripper LayerGripper, UniGripper TimberGripper (wood area gripper), UniGripper ZoneGripper, UniGripper BagGripper (sack gripper), UniGripper CoilGripper
- Materials
- Glass, Metal, Wood, Films, Plastics, Stones, Stainless steel, Plastic
- Founded
- 1976
- Industries
- Wood processing, Food and packaging industry, Logistics & intralogistics, Automotive industry, Mechanical engineering/special-purpose machinery, Consumer goods industry
- 01
Inquiry and requirements analysis
- 02
Analysis and quotation
- 03
Design engineering
- 04
Design approval by the customer
- 05
Manufacturing
- 06
Function test
- 07
Packaging and delivery
Materials
Aluminium
Frames and carrier plates of the UniGripper area grippers and accessories.
Steel
Robot spacers and structural elements in the accessories range.
Stainless steel
Pneumatic cylinders, filters and maintenance units for hygienic or ATEX-relevant applications.
Brass
Compressed-air filters, oilers and maintenance units in pneumatics.
Plastic
Pneumatic components as well as suction rubbers and bellows of the vacuum suction cups.
Foam material
Suction rubber pads of the area grippers in various grades for high cycle rates, rough surfaces and sensitive products.
Site
Rinteln-Engern
DEHeadquarters with consulting, design engineering, manufacturing, function testing, sales and service
- Lot size
- One-off production of custom grippers through to standard modules
- Materials
- Aluminium, steel, stainless steel, brass, plastic, foam material
- UniGripper area gripper manufacturing (SMS 80/120, Customized, Special, Co/Light)
- Vacuum ejectors ES, ER, E, EB, UVR-E30

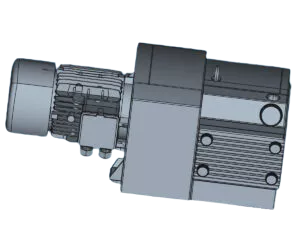

- Vacuum pumps rotary vane/screw/claw 0.1–30 kW

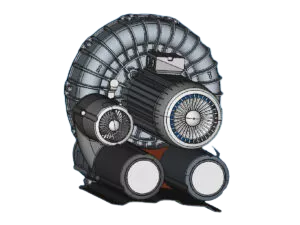

- Side channel blowers 0.25–18.5 kW
- Pneumatic cylinders and valve technology
- Measurement and control technology
Products and components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

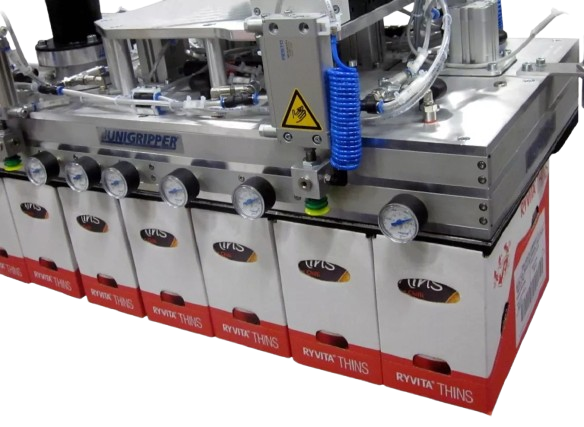

| Custom area grippers (UniGripper Customized)Assembly | – | – | – | – | Glass, Bottles, Wood, Cardboard, Shrink wrap |
| Standard area grippers UniGripper SMS 80/120Assembly | – | 6000 mm × 120 mm | – | – | Foam material, Aluminium |
| UniGripper Classic area gripperAssembly | – | 1400 mm | – | – | Aluminium, Foam material |
| UniGripper LayerGripperAssembly | – | – | – | – | Shrink wrap, Cardboard, Plastic, Glass, PET, Concrete, Stones, Paper |

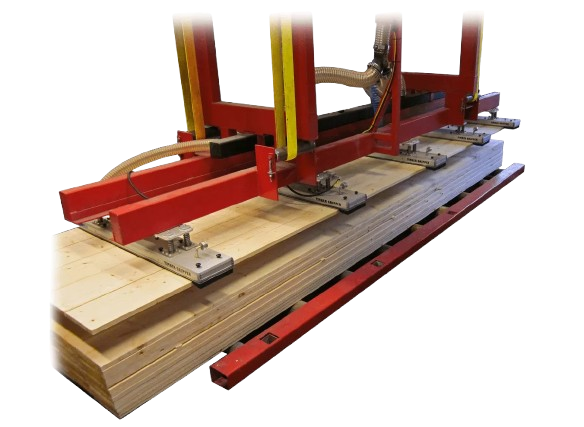

| UniGripper TimberGripper (wood area gripper)Assembly | – | 1250 mm × 300 mm | – | – | Wood, MDF |
| UniGripper ZoneGripperAssembly | – | – | – | – | Tetra Pak, Cartons, Glass, PET, Plastic, Paper |

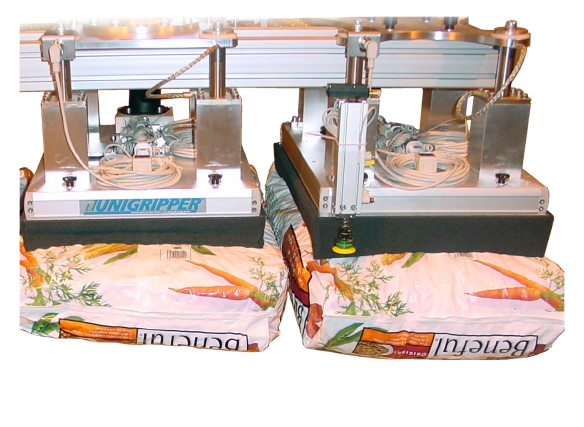

| UniGripper BagGripper (sack gripper)Assembly | – | – | a few grams – 25 kg or more | – | Bags, Sacks, Powder materials |

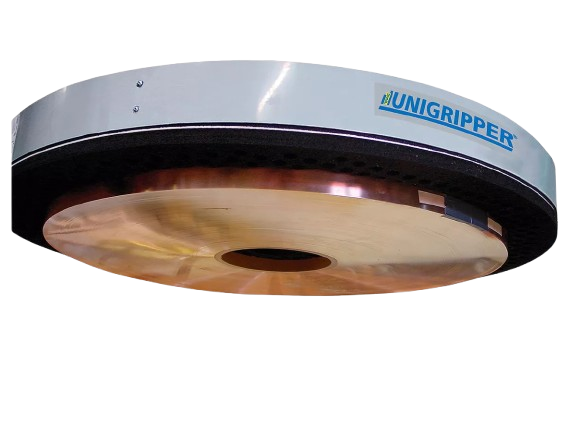

| UniGripper CoilGripperAssembly | – | – | – | – | Metal, Paper |
| UniGripper HoverGripperAssembly | – | – | – | – | Plastic bottles, Cups |
| UniGripper M-Gripper (magnetic gripper)Assembly | – | – | – | – | Metal |
| Area grippers for cobot applications (Co/Light)Assembly | – | 370 mm × 270 mm | 0.9 kg – 4.0 kg | – | Aluminium, Foam material, 3D-printed parts |
| Area grippers for special requirements (UniGripper Special)Assembly | – | – | – | – | Metal, Paper, Plastic |

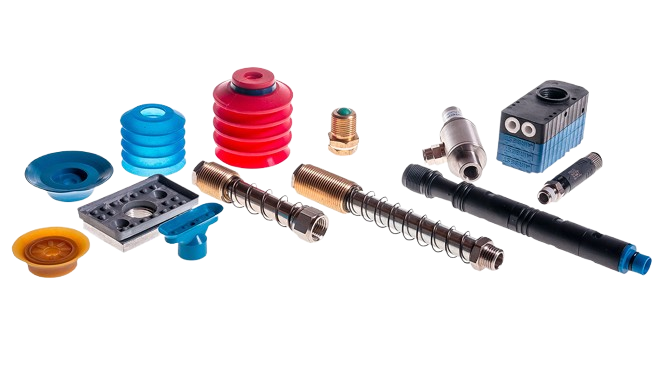

| Vacuum suction cups (flat, bellows, oval suction cups)Assembly | – | 800 mm × 600 mm | – | – | Glass, Metal, Wood, Films, Plastics, Stones |
| Vacuum generation (vacuum pumps)Assembly | – | – | – | – | – |
| Vacuum pumps (rotary vane, screw, claw)Assembly | – | – | – | – | – |
| Side channel blowersAssembly | – | – | – | – | – |
| Vacuum ejectors (Venturi principle)Assembly | – | – | – | – | – |
| Vacuum components (valves, filters, pressure gauges, hoses)Assembly | – | – | – | – | – |

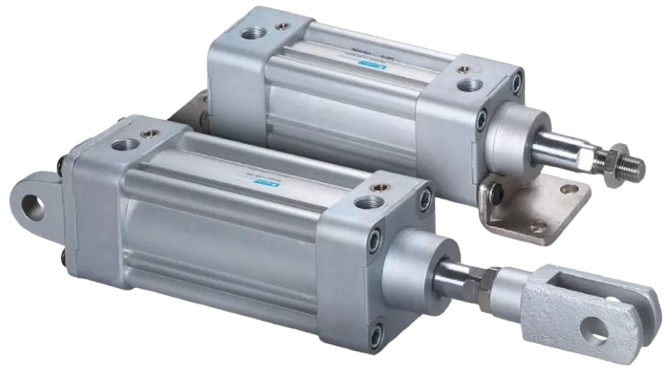

| Pneumatic cylinders (linear, round, compact cylinders)Assembly | – | – | – | – | Stainless steel, Plastic, Brass |

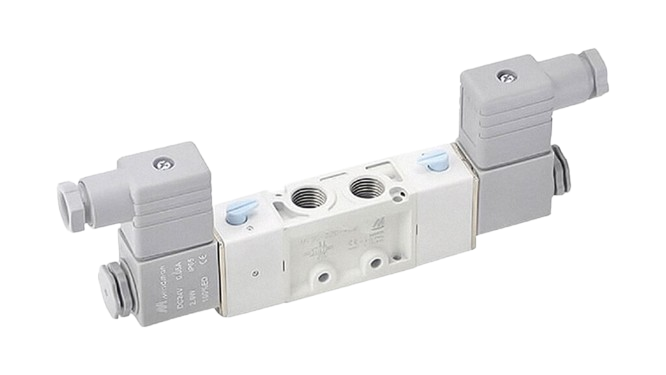

| Pneumatic and electric valvesAssembly | – | – | – | – | – |

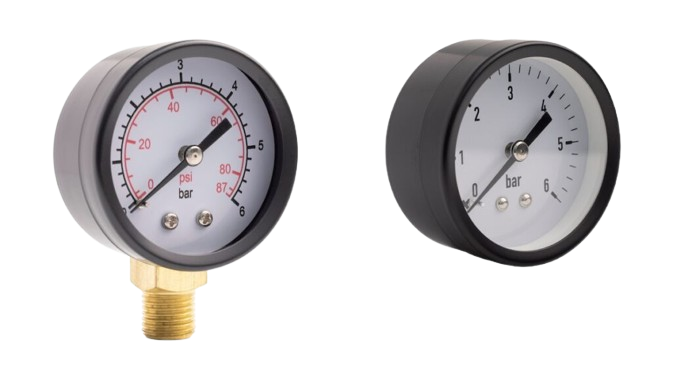

| Measurement and control technology (pressure, flow)Testing | – | – | – | – | – |

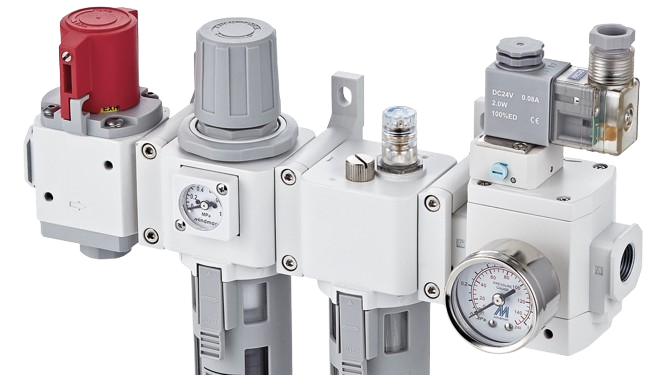

| Compressed-air preparation (filters, oilers, maintenance units)Assembly | – | – | – | – | Stainless steel, Brass, Plastic |
| Pressure regulators and volume flow boostersAssembly | – | – | – | – | – |
| Swing clampsAssembly | – | – | – | – | – |

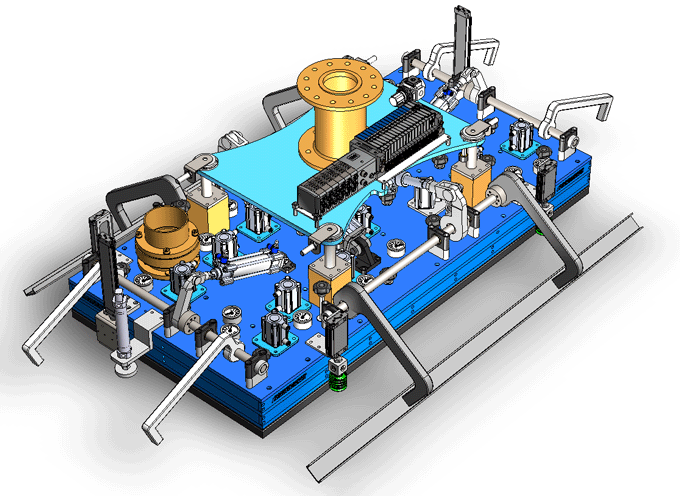

| Accessories (robot spacers, quick-change plate, side clamping rails)Assembly | – | – | – | – | Steel, Aluminium |
| Gripper upgrades (floating suspension, sensor technology, side clamping, valve islands)Assembly | – | – | – | – | – |
| Rotary unionsAssembly | – | – | – | – | – |
| Frequency inverters and energy-saving controllersAssembly | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Vacuum pumps (rotary vane, screw, claw) | – | – | 0.1 to 30 kW | – | Rinteln |
| Side channel blowers | – | – | 0.25 to 18.5 kW | – | Rinteln |

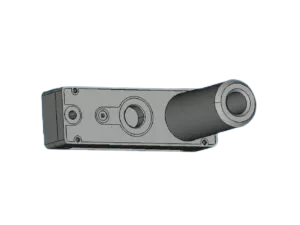

| Vacuum ejectors | UniGripper ES, ER, E, EB, UVR-E30 | – | – | – | Rinteln |

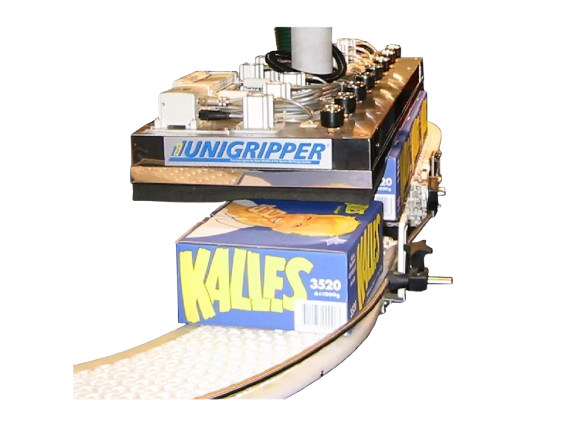

| UniGripper area grippers | UniGripper SMS 80, SMS 120, Classic, LayerGripper, TimberGripper, ZoneGripper, BagGripper, | – | available in almost any size | – | Rinteln |
Additional services
Reference customers
Company history
- 1976
Company founded; according to its own statements, RIVATEC has been on the market since 1976 (the About-us heading states, inconsistently, since 1979).
- 1997
The UniGripper vacuum area gripping system has been supported by the company since 1997.
- 2022
Jersey and tracksuit sponsorship for the second team of TuS Almena.
- 2023
Support of the musicians Fuzzelbrain & Jeanious from the Hamelin area with promotional materials.
- 2024
Support of the Johanniter (St John Ambulance) with the children's textbook 'First responders of tomorrow' for the district of Schaumburg.
