About Roth & Wessinger
Roth & Wessinger GmbH & Co. KG is a machining company based in Birkenfeld (Baden-Württemberg) with a focus on CNC milling. Its range of services covers the complete machining of one-off parts, small and large components as well as prototypes and fixtures. Materials processed include all grades of steel, stainless and alloyed steels, structural steels, cast materials, non-ferrous metals and plastics. The machine fleet comprises CNC milling machines in 3-, 4- and 5-axis versions with automation solutions, wire EDM machines, surface grinding machines and lead- and feed-screw lathes; production is complemented by heat treatment in a hardening furnace, sandblasting, laser marking and 3D coordinate measuring technology. Customers come from mechanical and special machinery engineering, plant construction, the automotive industry, fixture and jig making, the automation and handling sector as well as medical technology. Production ranges from single pieces through small to large series.
- Site
- Birkenfeld
- Processes
- CNC milling (one-off parts, small and large series, prototypes, fixtures, milled parts in series, Wire EDM, Surface grinding, Turning (lead- and feed-screw lathe turning), Laser marking, Sandblasting, Drilling and deburring, Heat treatment (hardening in a hardening furnace)
- Materials
- Steel (all steel grades), Stainless steel / stainless steels, alloyed steels, structural steels, cast materials, Non-ferrous metals / non-iron metals, Plastics, Stainless steels (stainless steel)
- Certificates
- Coordinate measuring technology (3D measurement), ISO 9001
- Industries
- Mechanical engineering, Special machinery engineering, Plant construction, Automotive industry, Fixture and jig making, Automation and handling sector
- 01
CNC milling (3-, 4- and 5-axis)
- 02
Wire EDM
- 03
Surface grinding
- 04
Turning
- 05
Drilling and deburring
- 06
Heat treatment (hardening)
- 07
Sandblasting
- 08
Laser marking
- 09
Inspection (coordinate measuring technology)
Materials & Processes
Steel (all steel grades)
Machining of structural steels and alloyed steels, taking into account their specific properties.
Stainless steels (stainless steel)
Used for parts with corrosion resistance requirements, including for medical technology.
Cast materials
Machining of cast parts for mechanical and plant engineering.
Non-ferrous metals / non-iron metals
Machining of non-ferrous metals for special applications.
Plastics
Machining of plastic parts, including for fixtures and special machinery engineering.
Locations

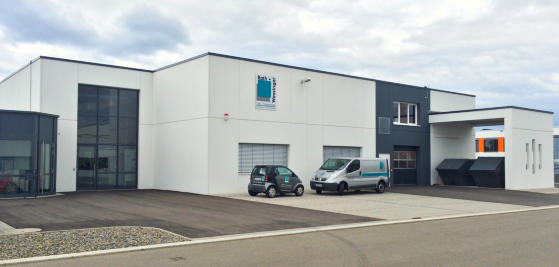

Birkenfeld
DEProduction and administration
- Lot size
- Single pieces up to small and large series
- Materials
- Steel, stainless steel, cast materials, non-ferrous metals, plastics

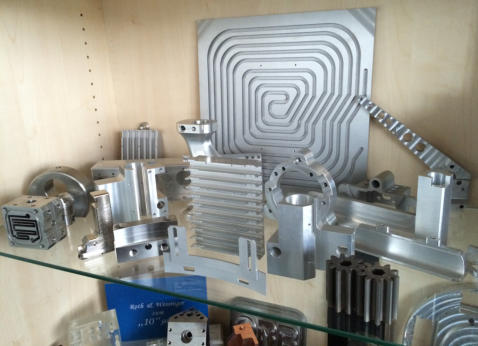

Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC milling (one-off parts, small and large series, prototypes, fixtures, milled parts in seriesMachining | – | – | – | Single piece | all steel grades, stainless steel, non-ferrous metals, plastics, cast materials, structural steels, stainless steels, alloyed steels, non-ferrous metals |
| Wire EDMMachining | – | – | – | – | – |
| Surface grindingMachining | – | – | – | – | – |
| Turning (lead- and feed-screw lathe turning)Machining | – | – | – | – | – |
| Laser markingSurface treatment | – | – | – | – | – |
| SandblastingSurface treatment | – | – | – | – | – |
| Drilling and deburringMachining | – | – | – | – | – |
| Heat treatment (hardening in a hardening furnace)Heat treatment | – | – | – | – | – |
| Coordinate measuring technology / inspection (3D measurement)Inspection | – | – | – | – | – |
25 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis CNC milling machine | Fanuc Robodrill D21LiB5 with robot automation (Robot M20i-A) | 1 | 700x400x330 | – | Birkenfeld |
| 4-axis CNC milling machine | Fanuc Robodrill D21LiB5 with robot automation (Robot M10i-D) | 1 | 700x400x330 | – | Birkenfeld |
| 5-axis CNC milling machine | Hermle C30 UP with 7-position pallet change system | 1 | 650x600x500 | – | Birkenfeld |
| 5-axis CNC milling machine | Deckel Maho DMU50 evolution with 20-fold automation | 1 | 500x400x400 | – | Birkenfeld |
| 5-axis CNC milling machine | DMG Mori DMU50 with 20-fold automation | 1 | 500x400x400 | – | Birkenfeld |
| 5-axis CNC milling machine | Deckel Maho DMU50 | 1 | 500x400x400 | – | Birkenfeld |
| 3-axis CNC milling machine | Kunzmann BA 1350 | 1 | 1350x620x810 | – | Birkenfeld |
| 3-axis CNC milling machine | Deckel Maho DMU60 MonoBlock | 1 | 730x560x560 | – | Birkenfeld |
| 3-axis CNC milling machine | Deckel Maho DMU50T | 1 | 500x400x400 | – | Birkenfeld |
| 4-axis CNC milling machine | Deckel Maho DMU80P | 1 | 800x700x600 | – | Birkenfeld |
| 4-axis CNC milling machine | Maho MH600S | 1 | 600x500x400 | – | Birkenfeld |
| 5-axis CNC coordinate measuring machine | Thome RAPID-Plus | 1 | 800x500x500 | – | Birkenfeld |
| Marking laser (fiber laser) | BN Laser BN20 | 1 | 110x110 | – | Birkenfeld |
| Marking machine | Richter | 1 | – | – | Birkenfeld |
| Wire EDM machine | Fanuc ALPHA 0iA | 1 | 320x220x180 | – | Birkenfeld |
| Wire EDM machine | Fanuc ALPHA 0iD | 1 | 350x270x255 | – | Birkenfeld |
| Surface grinding machine | Geibel+Hotz | 1 | 600x400x400 | – | Birkenfeld |
| Surface grinding machine | Geibel+Hotz FS 640SD | 1 | 600x400x400 | – | Birkenfeld |
| Surface grinding machine | Elb | 1 | 400x200x250 | – | Birkenfeld |
| Lead- and feed-screw lathe | Epple MD 360-1000 DIGI | 1 | D=360 L=1000 | – | Birkenfeld |
| Band saw | Kasto | 1 | – | – | Birkenfeld |
| Cut-off saw | Rurack | 1 | – | – | Birkenfeld |
| Sandblasting cabinet | – | 1 | – | – | Birkenfeld |
| Drilling and deburring machines | various | – | – | – | Birkenfeld |
| Hardening furnace | – | 1 | 235x240x400 | – | Birkenfeld |
Additional services
Quality
Production is accompanied by a 5-axis CNC coordinate measuring machine (Thome RAPID-Plus, measuring range 800x500x500) with 3D measuring technology. This allows inspection of manufactured parts directly in-house.
| Evidence | Birkenfeld |
|---|---|
| Coordinate measuring technology (3D measurement) | |
| ISO 9001 |
