3D printing with HP Multi Jet Fusion, 3D scanning, design and toolmaking from Kleindöttingen
RRHD GmbH
Kleindöttingen (AG), SwitzerlandNew on Amplifa
About RRHD
RRHD GmbH, based in Kleindöttingen in the Swiss canton of Aargau, is a service company for demanding projects in the fields of toolmaking, design, 3D scanning and additive manufacturing. The company produces prototypes, functional parts and small series from high-performance plastics — primarily using the HP Multi Jet Fusion (MJF) powder bed process in PA12 (nylon). The build volume is 380 x 284 x 380 mm with a layer thickness of 0.08 mm and a standard accuracy of ±0.3 % (min. ±0.3 mm). Printed parts are post-processed in-house: machined, chemically smoothed (vapor smoothing), dye-dipped, painted or electroplated. Vapor smoothing produces surfaces close to injection molding quality that are hydrophobic. In addition, RRHD manufactures casting and laminating molds in model and toolmaking. Customers come from industries such as turbine manufacturing, rail vehicle construction, automotive, medical technology and industrial plant engineering.
- Site
- Kleindöttingen
- Processes
- HP Multi Jet Fusion (MJF) 3D printing, Vapor smoothing (chemical surface smoothing), 3D scanning, CAD design, Model & toolmaking for casting and laminating molds, Machining post-processing of 3D-printed parts, Dyeing / dip dyeing of 3D-printed parts, Electroplating of 3D-printed parts
- Materials
- PA12 (polyamide 12 / nylon 12, HP PA 12), Polyamide 12 (Nylon 12, HP PA 12), HP Multi Jet Fusion (powder bed 3D printing), Vapor Smoothing (chemical surface smoothing), Model & Toolmaking, 3D Scanning & CAD Design
- Industries
- Turbine manufacturers, Rail vehicle construction, Automotive, Medical technology, Industrial plant engineering, Product design
- 01
3D scanning
- 02
CAD design
- 03
3D printing (HP MJF, PA12)
- 04
Machining post-processing
- 05
Vapor smoothing
- 06
Dyeing/painting/electroplating
- 07
Model & toolmaking
Materials & Processes
Polyamide 12 (Nylon 12, HP PA 12)
Robust powder for MJF with high impact strength, temperature resistance up to 175 °C and good chemical resistance.
HP Multi Jet Fusion (powder bed 3D printing)
Fast additive process for prototypes, functional parts and small series without support structures.

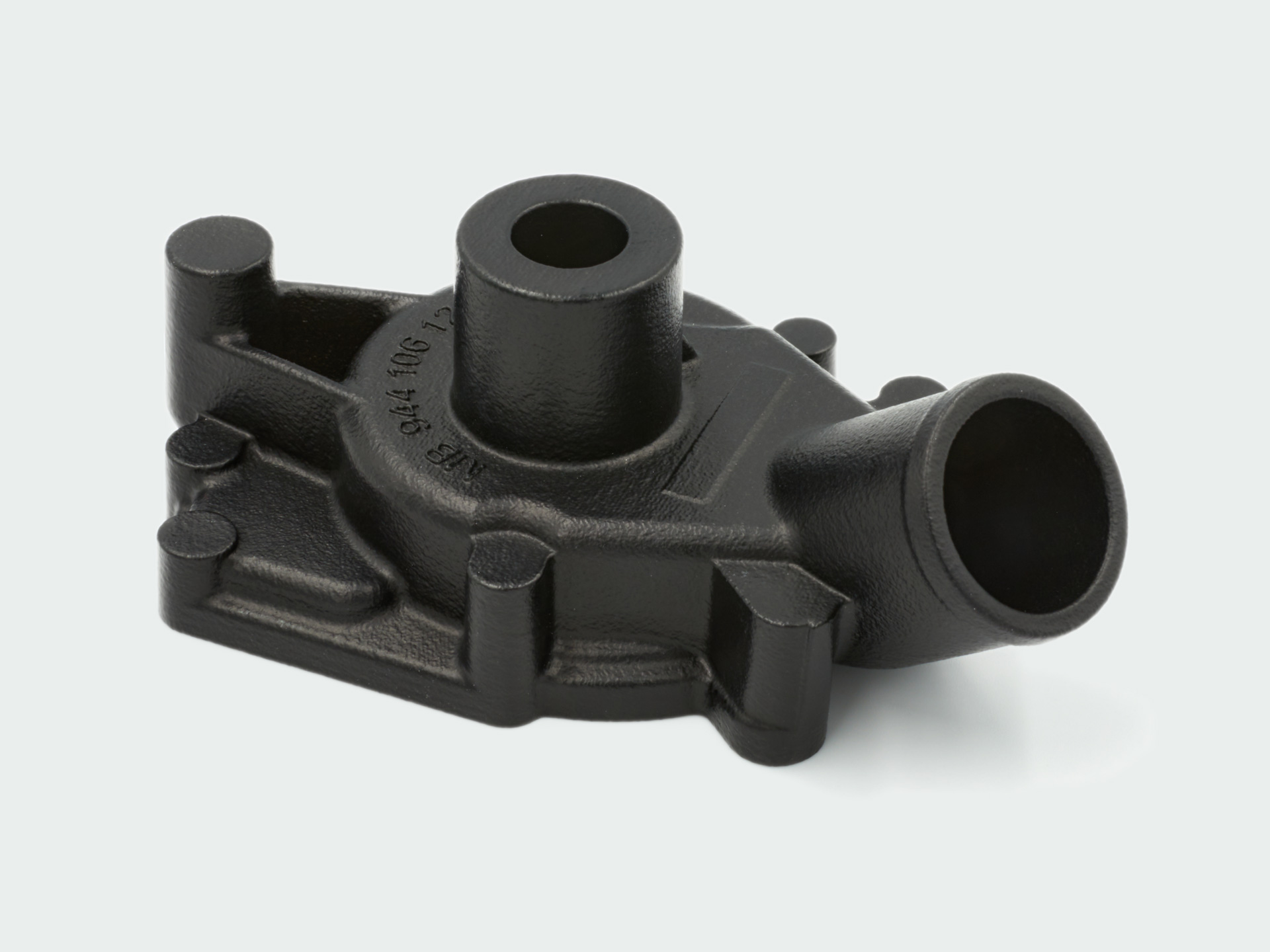

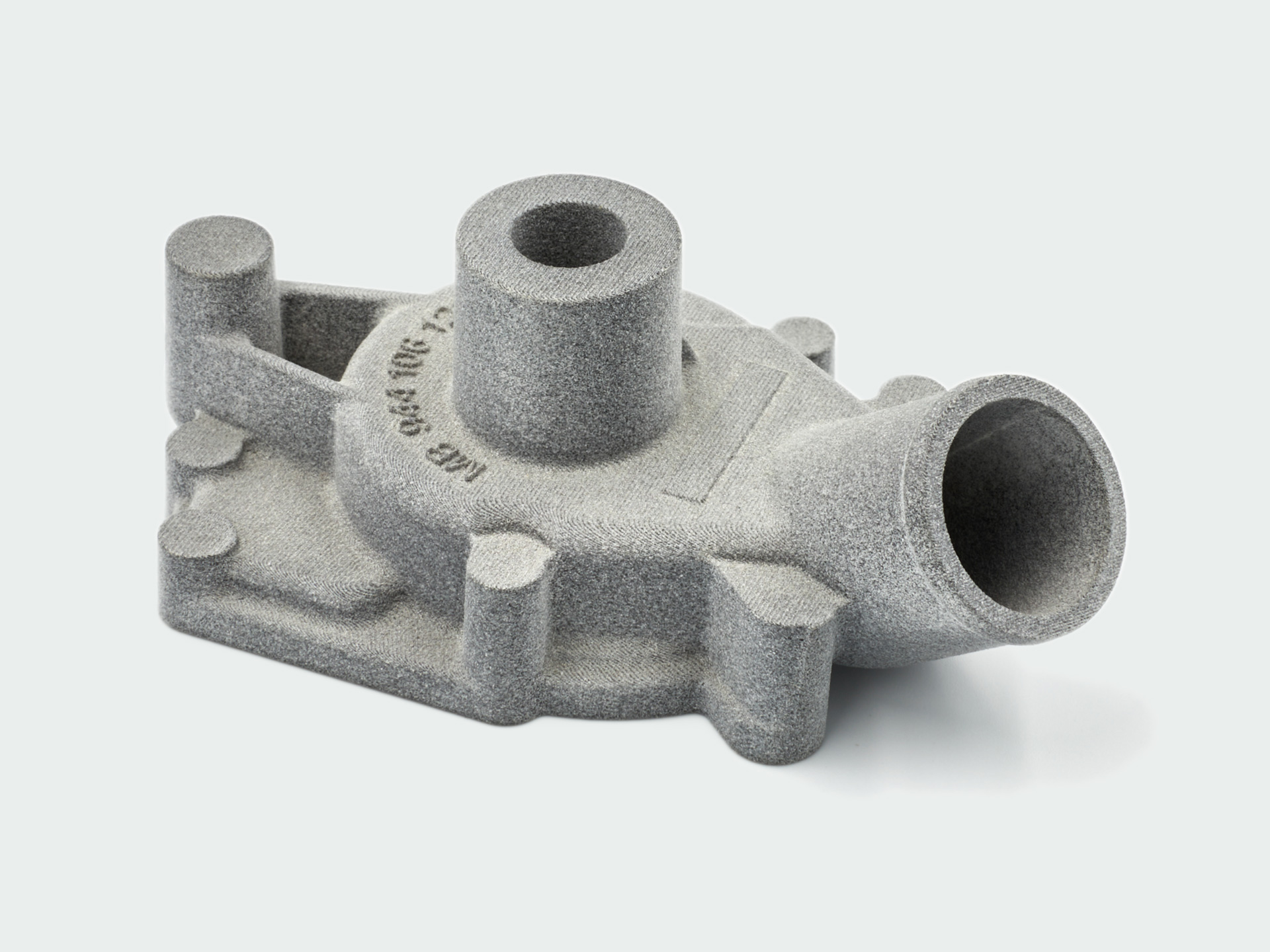

Vapor Smoothing (chemical surface smoothing)
Smooths MJF and SLS parts without adding foreign material to an injection-molding-like, hydrophobic surface.
Model & Toolmaking
Manufacture of casting and laminating molds from design data.
3D Scanning & CAD Design
Digitization of existing parts and design as the basis for manufacturing.
Locations
Kleindöttingen (AG)
CHHeadquarters and production
- Part weight / size
- up to 380 x 284 x 380 mm
- Lot size
- Prototype to small series/series
- Materials
- PA12
- HP Jet Fusion 3D printer (MJF)
- Chemical smoothing system (vapor smoothing)

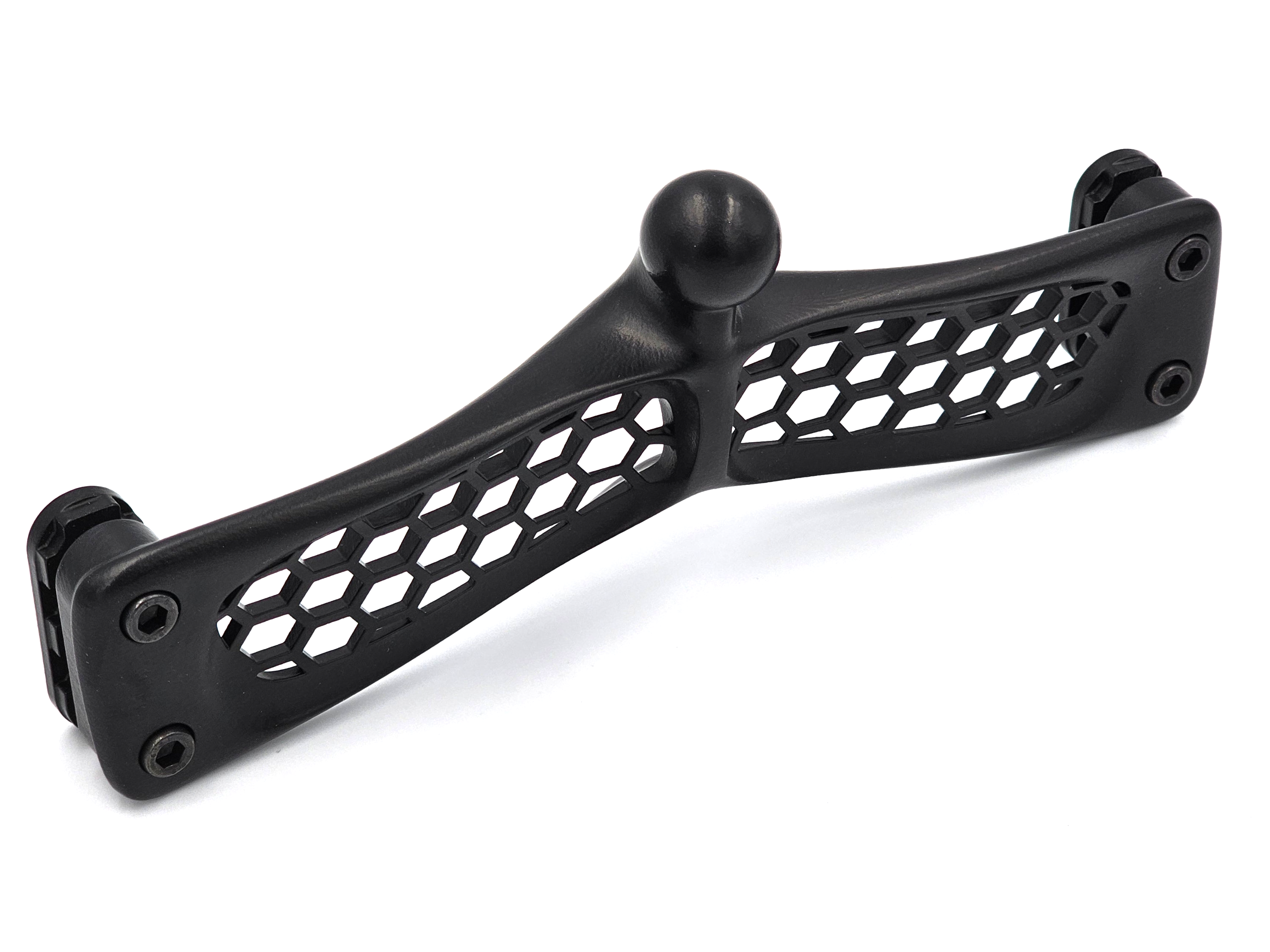

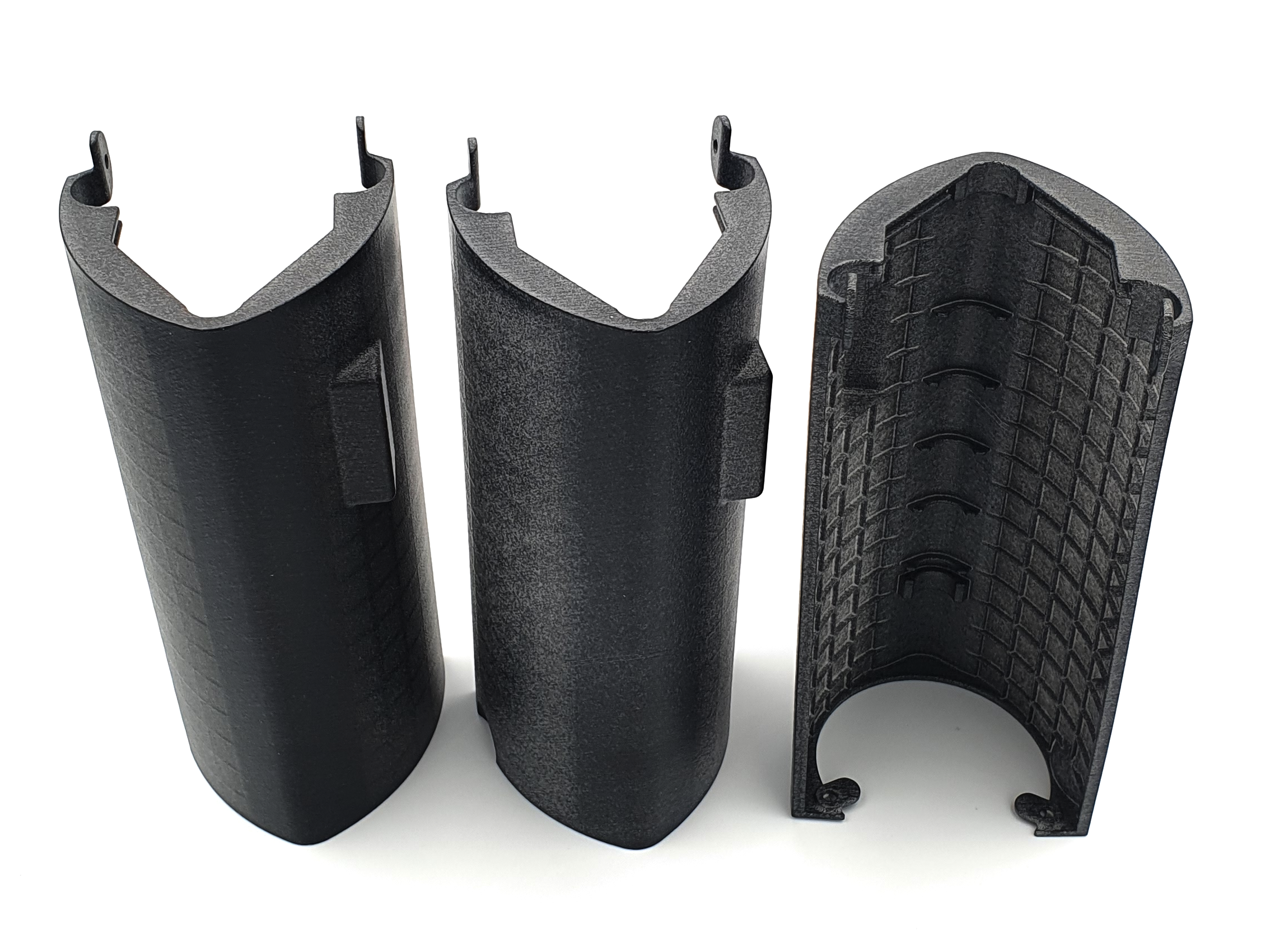

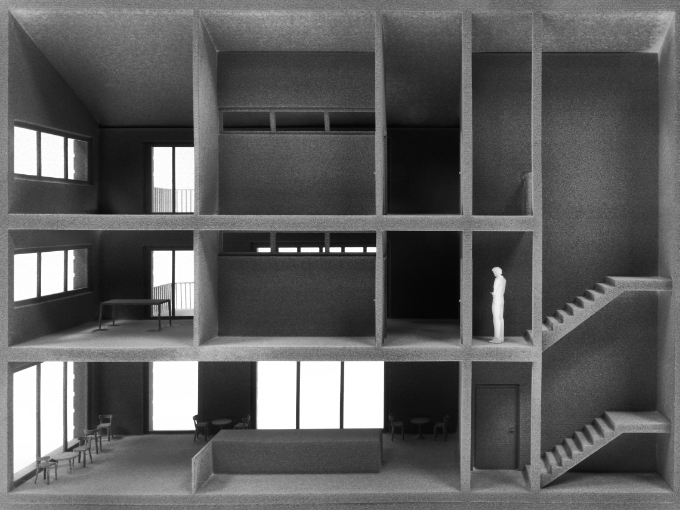

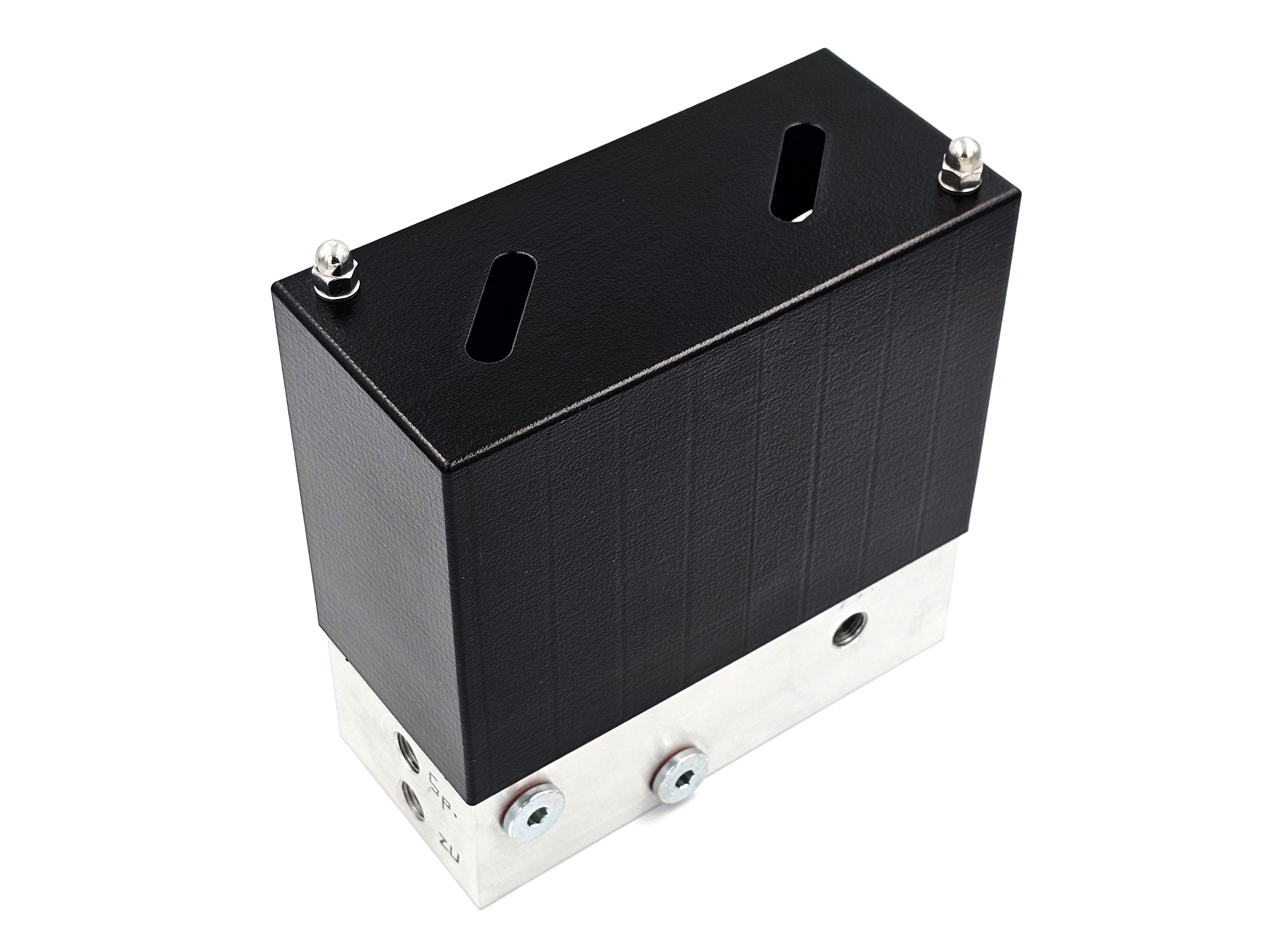

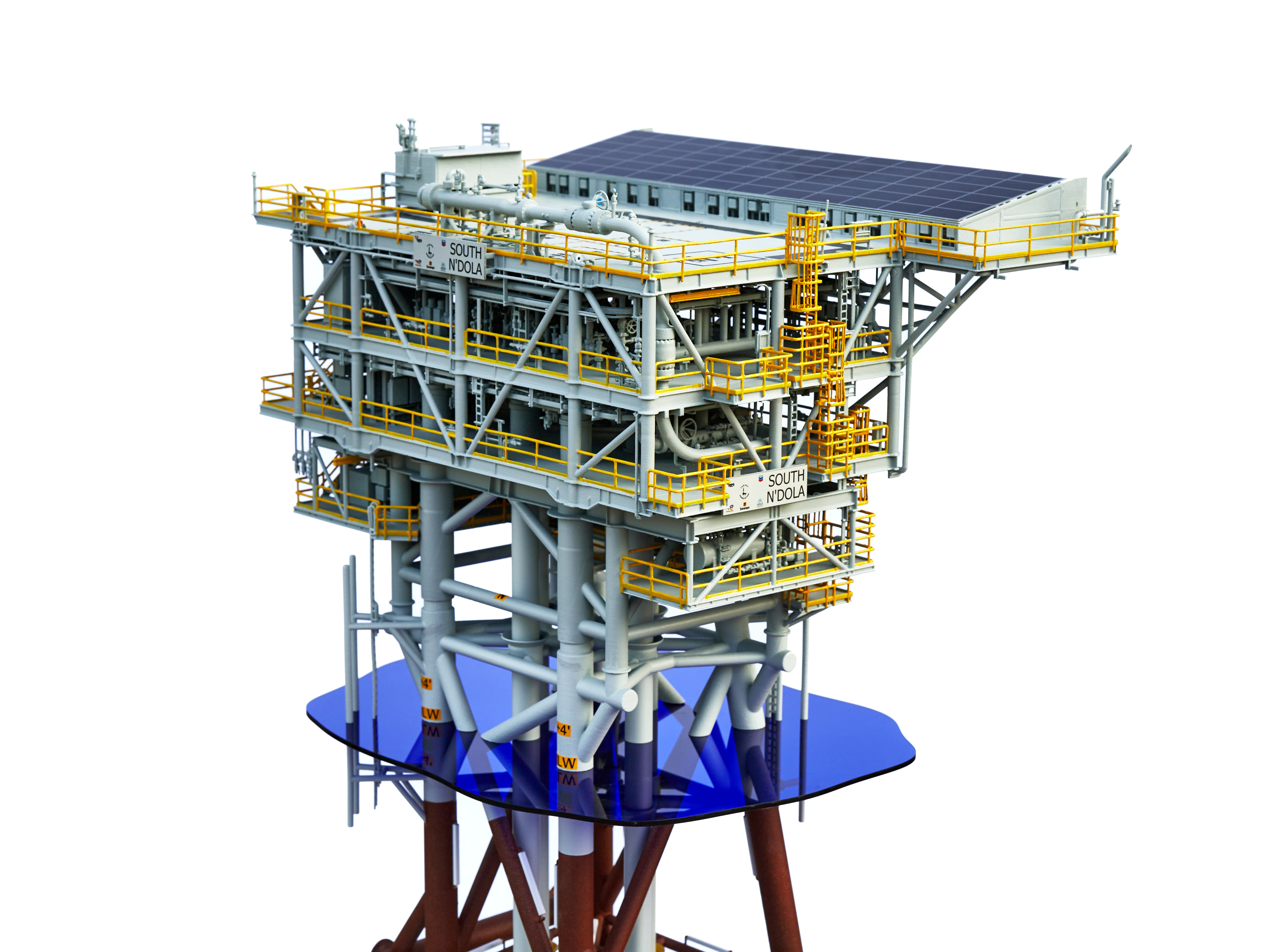

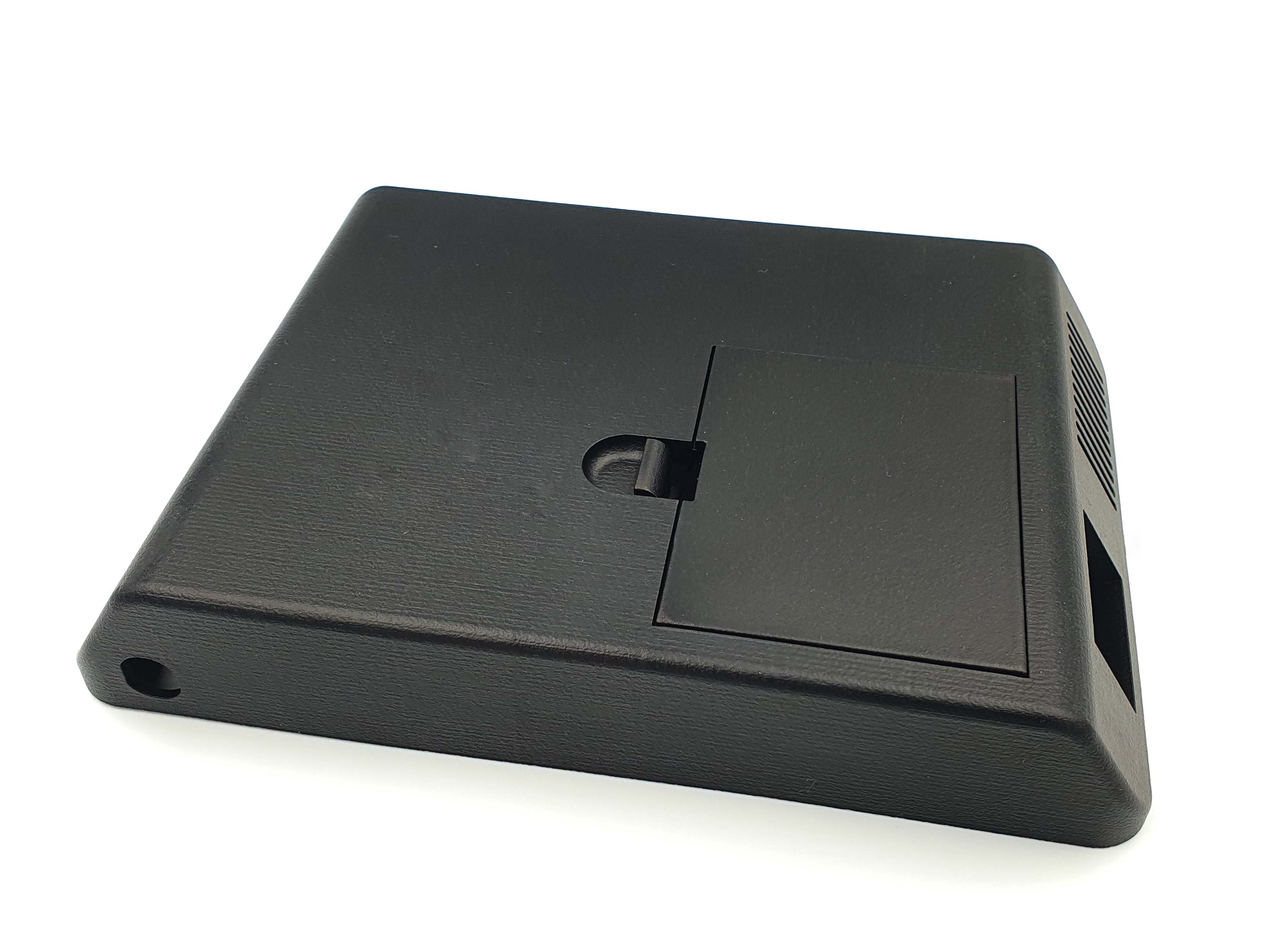

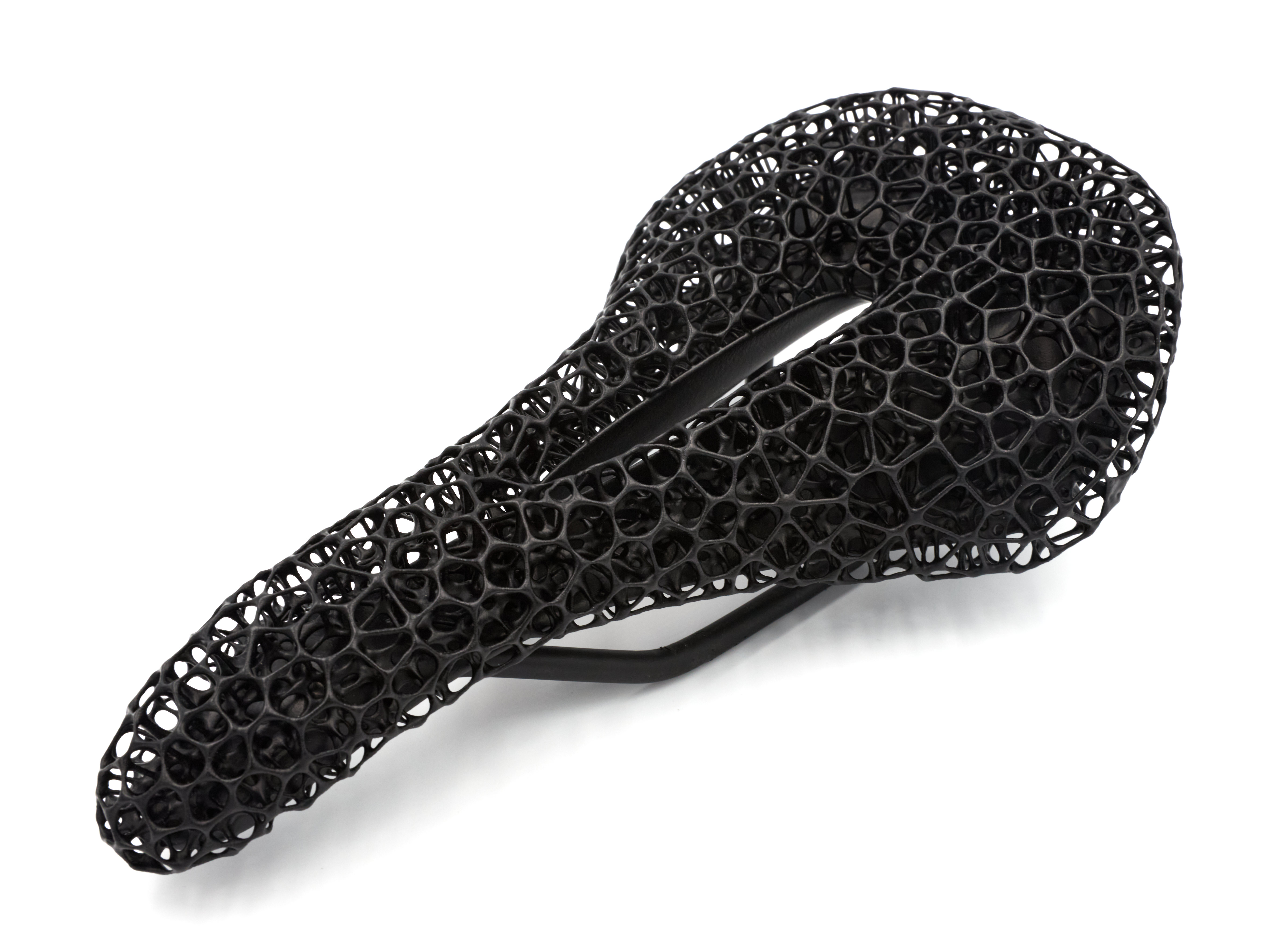

Parts

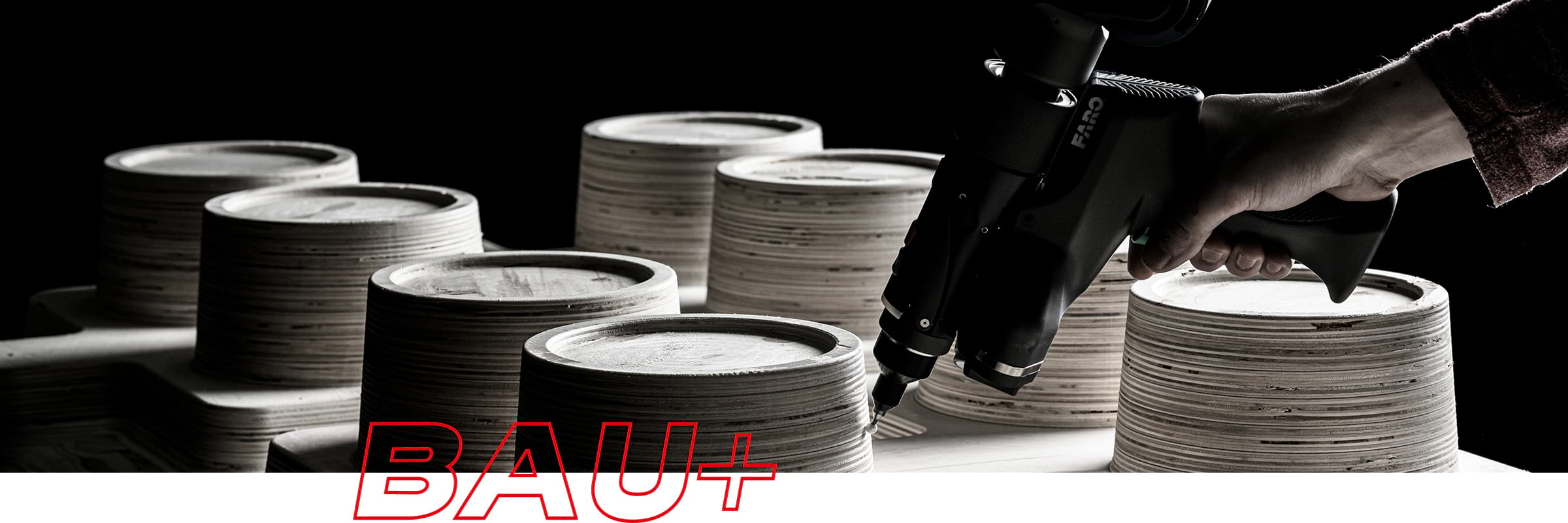

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| HP Multi Jet Fusion (MJF) 3D printingAdditive | ± 0.3% (min. ± 0.3 mm) | 380 mm × 380 mm × 284 mm | – | Prototype / single part – Small series / series production | PA12 (nylon) |
| Vapor smoothing (chemical surface smoothing)Surface | – | – | – | – | PA12 (MJF and SLS parts) |
| 3D scanningEngineering | – | – | – | – | – |
| CAD designEngineering | – | – | – | – | – |
| Model & toolmaking for casting and laminating moldsEngineering | – | – | – | – | – |
| Machining post-processing of 3D-printed partsMachining | – | – | – | – | PA12 |
| Dyeing / dip dyeing of 3D-printed partsSurface | – | – | – | – | PA12 |
| Electroplating of 3D-printed partsSurface | – | – | – | – | PA12 |
2 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| HP Jet Fusion 3D printer (MJF) | HP Jet Fusion | 1 | Build volume 380x284x380 mm (design guidelines: 274 x 370 x 380 mm usable) | – | Kleindöttingen (AG) |
| Chemical smoothing system (vapor smoothing) | – | 1 | – | – | Kleindöttingen (AG) |
