Injection-molded screw protection caps and corrosion protection elements for bolted connections, including in-house toolmaking.
RS Kunststofftechnik
Werdohl · Head office / ProductionNew on Amplifa
About RS Kunststofftechnik

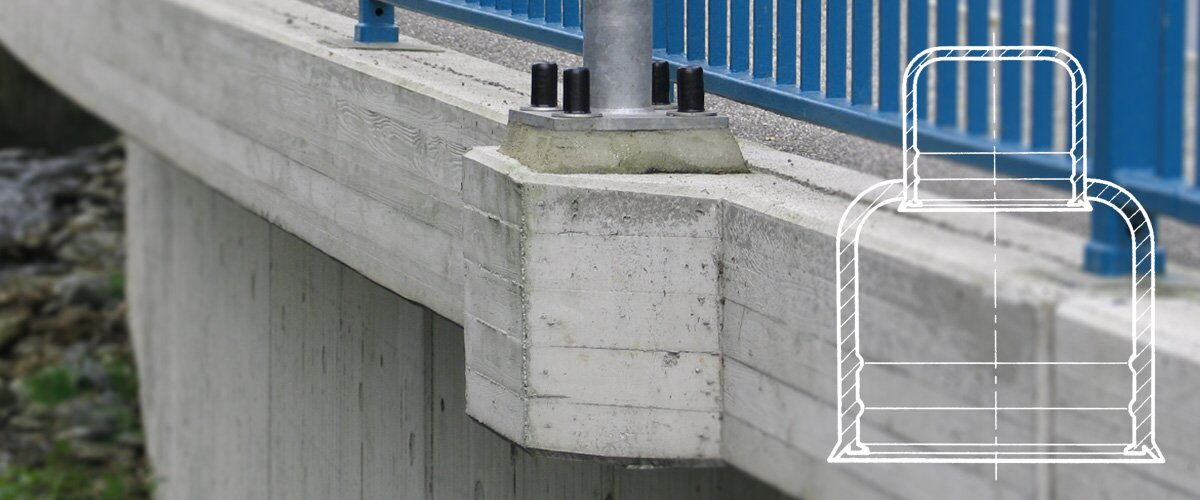

RS Kunststofftechnik, based in Werdohl (Sauerland), specializes in corrosion protection elements for bolted connections, in particular screw protection caps for high bolt protrusions (telescopic caps), lock nuts and washer covers. The products are manufactured by plastic injection molding; part weights of up to 600 g and virtually any combination of cap height, washer height and washer diameter can be realized. The plastics used are LD-PE, PP, PA 6.6, TEEE and ETFE with varying temperature and media resistance; the standard color is RAL 9005, and other RAL Classic shades with UV stabilizer are possible. In-house toolmaking enables fast special solutions as well as sample and prototype production already in the development phase. Customers come from the automotive sector (sampling according to VDA/PPAP including IMDS), mechanical engineering and general industrial plant construction. Approximately 90 % of the protection caps are supplied from stock on a customer- and order-specific basis.
- Site
- Werdohl
- Processes
- Injection molding / plastic processing (manufacture of screw protection caps), Toolmaking (in-house mold making), Sample and prototype production, Initial sample inspection / initial sample approval (VDA up to PPAP Level 3 incl. IMDS entry), Toolmaking / in-house toolmaking, Initial sampling VDA up to PPAP Level 3 incl. IMDS entry, Custom color variants (RAL Classic, UV-stabilized), Technical consulting in the development phase
- Materials
- LD-PE, PP, PA 6.6, TEEE, ETFE, PP (polypropylene), RAL Classic color variants
- Certificates
- ISO 9001, DIN EN ISO 14001
- Industries
- Automotive (sampling according to VDA/PPAP), Mechanical engineering, General industrial bolted connections (B2B)
- 01
Consulting / engineering in the development phase
- 02

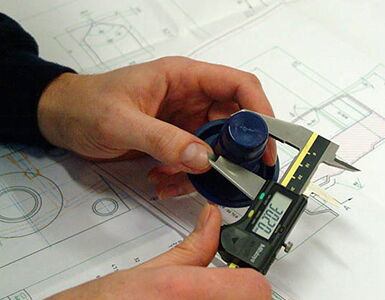

Toolmaking (in-house mold making)
- 03
Sample and prototype production
- 04
Injection molding
- 05
Initial sampling (VDA up to PPAP Level 3 incl. IMDS)
- 06
Warehousing / delivery
Materials & Colors
LD-PE
Plastic with short-term temperature resistance up to 100 °C for standard protection caps.
PP (polypropylene)
Temperature-resistant up to 130 °C short-term, among other things resistant to oils and greases.
PA 6.6
Engineering plastic with short-term temperature resistance up to 200 °C.
TEEE
Elastomeric thermoplastic material with temperature resistance up to 160 °C.
ETFE
Highly resistant fluoroplastic for short-term temperatures up to 220 °C and aggressive media.
RAL Classic color variants
Colored protection caps with UV stabilizer; standard color RAL 9005 black.
Locations
Werdohl
DEHead office / Production
- Part weight / size
- Part weights up to 600 g
- Lot size
- Special solutions and series production, approx. 90 % from stock
- Materials
- LD-PE, PP, PA 6.6, TEEE, ETFE
- Injection molding
- In-house toolmaking

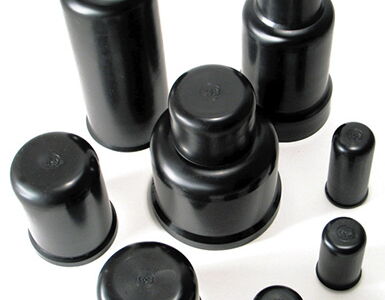

Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Injection molding / plastic processing (manufacture of screw protection caps)Plastics | – | – | 600 g | – | LD-PE, PP, PA 6.6, TEEE, ETFE |
| Toolmaking (in-house mold making)Engineering | – | – | – | – | – |
| Sample and prototype productionEngineering | – | – | – | – | – |
| Initial sample inspection / initial sample approval (VDA up to PPAP Level 3 incl. IMDS entry)Testing | – | – | – | – | – |
Additional services
Quality
RS Kunststofftechnik pursues a zero-defect quality objective with continuous product inspection and a quality management system in place since its founding. Initial sample approvals are carried out according to VDA up to PPAP Level 3 including IMDS entry.
| Evidence | Werdohl |
|---|---|
| ISO 9001 | |
| DIN EN ISO 14001 |
