Certified construction timber from spruce and fir, large-diameter sawing up to 120 cm and contract cutting to 18 m length
Sägewerk Martin Obermaier
Fußstall 4, 83737 Irschenberg (Bavaria)New on Amplifa
About us: Sawmill in its fourth generation
Sägewerk Martin Obermaier in Irschenberg (district of Miesbach, Upper Bavaria) is a family business run in its fourth generation with 6 employees. The company produces certified construction timber from domestic spruce and fir log stock: construction timber of strength classes C24/C30, solid structural timber (KVH), glulam GL 24h, rough sawn boards, tongue-and-groove boards, roof battens/CE battens and planed products made of spruce and larch. The focus is on large-diameter sawing: the gang saw (EWD GDZ GE-76, 70 cm pass-through, cutting length approx. 18 m) and the log bandsaw (120 cm pass-through, cutting length approx. 6.5 m) allow large cross-sections and lengths up to 18 m. For drying, two chambers with a total volume of approx. 80 m³ as well as several storage halls are available. In addition to sawing, the mill offers contract sawing of delivered round timber (up to 120 cm stump diameter), round timber purchasing within a 25 km radius, and contract cutting on cutting lines with 4-axis and 5-axis universal milling machines for components up to 0.65 m wide and 0.30 m thick in virtually unlimited length – including structural design, work preparation and delivery to the construction site. Customers are carpentry firms, timber construction companies, trade and cabinetmakers in Upper Bavaria.
- Site
- Irschenberg
- Processes
- Large-diameter sawing (gang saw cutting), Log bandsaw cutting (sawing of oversized timber), Timber drying (drying chambers), Contract sawing, Planing, Grooving, Contract cutting (machine cutting, traditional carpentry cutting, timber frame construction, log, Milling of double groove and tongue for log walls
- Materials
- Spruce, Fir, Larch, Spruce (construction timber, KVH), Spruce (glulam), Spruce (battens, boards)
- Certificates
- CE in accordance with EN 14081:2011 (System 2+), PEFC (round timber), IPPC ISPM No. 15 (wood treatment), ISO 9001
- Industries
- Carpentry and carpentry trade, Timber construction / timber frame construction, Log house construction, Timber trade, Cabinetmakers, Prefabricated construction
- 01
Round timber purchasing (spruce/fir, 25 km radius)
- 02
Debarking and 3-D measurement of the round timber
- 03
Gang saw or log bandsaw cutting
- 04
Drying (2 drying chambers)
- 05
Planing and grooving
- 06
Contract cutting (milling, drilling)
- 07
Structural design and work preparation
- 08
Delivery ex works or to the construction site
Wood species and products
Spruce (construction timber, KVH)
Certified construction timber in accordance with EN 14081, grooved, centre-cut, dried, rough, planed or profiled, lengths up to 18 m.
Spruce (glulam)
Glulam equivalent to GL24c per EN 14080:2013, planed on all four sides, melamine resin, service class 1+2.
Spruce (battens, boards)
CE battens and rough sawn boards class III/IV, dry, clean, free of insect damage.
Fir
Processing of domestic fir log stock, also in large-diameter sawing.
Larch
Planed products such as tongue-and-groove chamfered boards and square-edge boards, also in longer dimensions.

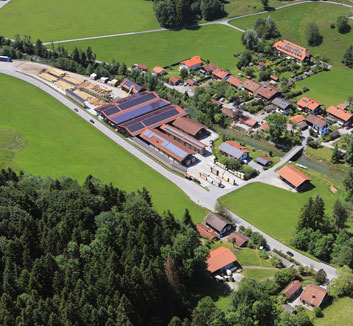

Location
Irschenberg
DESawmill, drying, cutting, round timber yard
- Part weight / size
- Components up to 0.65 m width × 0.30 m thickness, virtually
- Lot size
- Single orders up to large quantities (> 10 m³)
- Materials
- Spruce, fir, larch, glulam
- EWD GDZ GE-76 gang saw (70 cm pass-through, cutting length approx. 18 m, built 2010)
- Log bandsaw (120 cm pass-through, cutting length approx. 6.5 m, built 1985)
- 2 drying chambers approx. 80 m³
- Cutting line with 4-axis universal milling machine
- Cutting line with 5-axis universal milling machine
- Planing machine
- Hydraulic crane on the round timber yard
Components and products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Large-diameter sawing (gang saw cutting)Machining | – | approx. 18 m × 70 cm × 70 cm | – | – | Spruce, Fir |
| Log bandsaw cutting (sawing of oversized timber)Machining | – | approx. 6.5 m × 120 cm × 120 cm | – | – | Spruce, Fir |
| Timber drying (drying chambers)Heat treatment | – | – | – | 80 m³ (total volume of 2 chambers) | Spruce, Fir |
| Contract sawingMachining | – | Round timber up to 21 m × up to max. 120 cm stump diameter | – | – | Spruce, Fir, Hardwood |
| PlaningMachining | – | – | 1 cm planing allowance per side | – | Spruce, Fir, Larch |
| GroovingMachining | – | – | – | – | Spruce |
| Contract cutting (machine cutting, traditional carpentry cutting, timber frame construction, logMachining | – | virtually unlimited length × 0.65 m × 0.30 m | – | – | Spruce, Fir, Glulam |
| Milling of double groove and tongue for log wallsMachining | – | – | – | – | Spruce |
| Structural design and work preparationEngineering | – | – | – | – | Wood |
| 3-D measurement of the round timberTesting | – | – | – | – | Spruce, Fir |
| IPPC treatment in accordance with ISPM No. 15Surface | – | – | – | – | Wood (packaging wood) |
| Drilling (vertical, horizontal, face-side holes and countersinks, angled drillings)Machining | – | – | – | – | Spruce, Fir, Glulam |
| Round timber debarkingMachining | – | – | – | – | Spruce, Fir, Hardwood |
7 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Gang saw (EWD GDZ GE-76) | EWD GDZ GE-76 | 1 | Pass-through 76 cm width, 70 cm height, cutting length approx. 18 m | 2010 | Irschenberg |
| Log bandsaw | – | 1 | Pass-through 120 cm, cutting length approx. 6.5 m | 1985 | Irschenberg |
| Drying chamber | – | 2 | Total volume approx. 80 m³ | – | Irschenberg |
| Cutting line with 4-axis universal milling machine | – | 1 | Components width 0.65 m, thickness 0.30 m, virtually unlimited length | – | Irschenberg |
| Cutting line with 5-axis universal milling machine | – | 1 | Components width 0.65 m, thickness 0.30 m, virtually unlimited length | – | Irschenberg |
| Hydraulic crane (round timber yard) | – | 1 | – | 1977/1990 | Irschenberg |
| Planing machine | – | 1 | – | – | Irschenberg |
Additional services
Reference customers
Quality and certification
Construction timber is CE-certified in accordance with EN 14081:2011 (System 2+, Holzforschung München, TUM, certificate 0797-CPR-0507); all sawn round timber is PEFC-certified. Round timber is measured in 3-D; in addition, IPPC treatment in accordance with ISPM No. 15 is available.
| Evidence | Irschenberg |
|---|---|
| CE in accordance with EN 14081:2011 (System 2+) | |
| PEFC (round timber) | |
| IPPC ISPM No. 15 (wood treatment) | |
| ISO 9001 |
History
- 1870
First mention of a saw with a full gang saw in the Leitzach valley
- 1931
Lease of the saw (Leitzach mill) by head sawyer Martin Obermaier from the Leitzachtalverein
- 1939
First tractor, Primus P11, for round timber transport under own management
- 1950
Conversion from water power to electric motors
- 1963
New construction of the saw at the current site in Unterfußstall, start of operations on 11.11.1963
- 1969
First forklift truck (lifting capacity 2.5 t)
- 1977
First crane on the round timber yard, later replaced by a hydraulic crane (1977 and 1990)
- 1985
Additional log bandsaw for oversized timber
- 2003
Roofing of the sawmill site
- 2010
Installation of new EWD GDZ GE-76 gang saw
- 2013
3-D measurement of the round timber
- 2021
Member of the Verband HIGH-TECH-ABBUND im Zimmererhandwerk e.V. (since 1.12.2021)
