Manufacturer and applicator of heat-cured and cold-curing coatings for corrosion protection of critical plant components.
SÄKAPHEN GmbH
Gladbeck · Headquarters, Production/Application, LaboratoryNew on Amplifa
About SÄKAPHEN
SÄKAPHEN GmbH, headquartered in Gladbeck, has been developing, producing and applying coatings and linings for heavy-duty corrosion protection since 1954. The thermally curing heat-cured coatings based on phenolic and epoxy-phenolic resins are applied in a multi-layer process by flooding or spraying and cured in polymerization ovens at temperatures up to 220 °C; the catalytically curing two- and multi-component systems are applied by brushing, rolling, spraying or troweling. Coated components include tube-bundle heat exchangers, condensers, scraped surface coolers, turbines, impellers, pump wheels and pump housings as well as ISO tank containers, process vessels, silos, pipework and box coolers made of carbon steel, stainless steel, super duplex, copper-nickel, high-grade alloys, titanium and concrete. The services also include blast removal of old coatings for non-destructive testing (NDT/NDE) with subsequent re-coating, two-component repair materials as well as technical consulting and application supervision. In the company's own laboratory, resistance tests are carried out and customer-specific formulations are developed. Customers come from the chemical and petrochemical industries, power plants, waste incineration plants, steel manufacturing, and the oil and gas industry.
- Site
- Gladbeck
- Processes
- Heat-cured coating (heat-cured phenolic/epoxy-phenolic), multi-layer application by flooding or, Cold-curing (catalytic) coating, two-/multi-component, application by brushing,, Coating of rotating equipment: turbines, impellers/fan wheels, pump wheels and housings,, Removal of old coatings by blasting (abrasive blasting, Sa 3 per ISO 8501-1:2007) and, Coating of tube-bundle heat exchangers, condensers and coolers (tube-side/shell-side),, Repair of coatings with two-component repair materials (/RE), container sizes 50 g,, Technical consulting, resistance testing in the in-house laboratory, on-site application supervision, Precision machining of epoxy filler (Ceramoclad 221) in pump wheel seats
- Materials
- Carbon steel, Stainless steel, Super duplex, Copper-nickel (Cu-Ni), Complex/high-grade alloys, Titanium, Concrete, Phenolic resin (Baked Phenolic)
- Certificates
- ISO 9001
- Founded
- 1954
- Industries
- Chemical and petrochemical industry, Power plants, Waste incineration, Steel manufacturing, Oil and gas industry, Coker units
- 01
Technical consulting and analysis of the corrosion problem
- 02
Resistance testing and formulation development in the in-house laboratory
- 03
Blasting of the components (surface preparation, if required removal of
- 04
Multi-layer application by flooding, spraying, brushing, rolling or
- 05
Thermal curing in polymerization ovens up to 220 °C or catalytic
- 06
Quality assurance and delivery
- 07
Two-component repair materials and on-site supervision
Coating Systems and Materials
Phenolic resin (Baked Phenolic)
Single-component heat-cured coating with high chemical resistance to acidic and alkaline media, also in the immersion and gas phase.
Epoxy-phenolic resin (Baked Epoxy-Phenolic)
Thermally curing coating for heat exchangers, turbines and pump wheels for service temperatures up to 200 °C.
Epoxy, cold-curing
Two- and multi-component cold-curing coating, applicable by brushing, rolling, spraying or troweling.
Novolac vinyl ester / Epoxy vinyl ester
Cold-curing system for aggressive media, including on rotating equipment.
Ceramic-filled epoxy coating

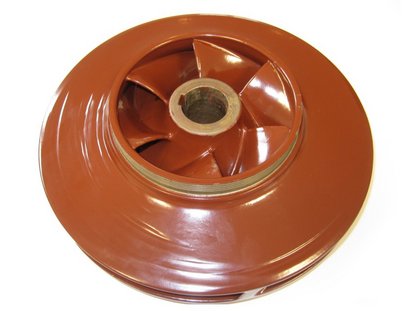

Abrasion-resistant heat-cured coating against wear and encrustation, e.g. on pump wheels in coker units.
Carbon steel
Most common substrate for coated heat exchangers, vessels and rotating equipment.
Stainless steel
Substrate for coated plant components in the chemical process industry.
Super duplex
High-grade alloy as base material for coated heat exchangers and apparatus.
Copper-nickel (Cu-Ni)
Material for cooling and heat exchanger components exposed to water.
Titanium
Substrate for coated heat exchanger and cooler components.
Concrete
Coatable substrate alongside metallic materials.
Locations
Gladbeck
DEHeadquarters, Production/Application, Laboratory
- Materials
- Carbon steel, stainless steel, super duplex, copper-nickel, high-grade alloys, titanium, concrete
- Polymerization oven for heat-cured coatings (curing up to 220 °C)

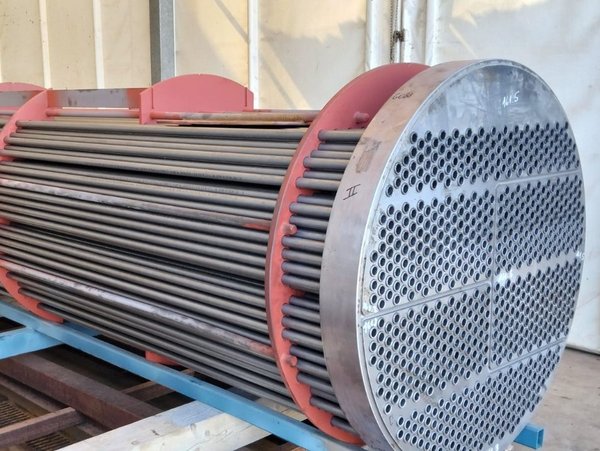

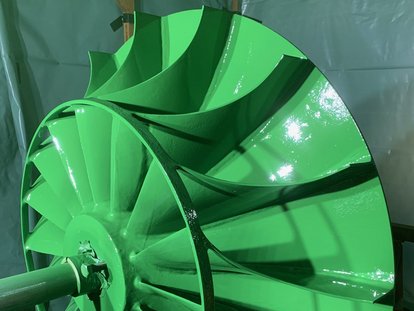

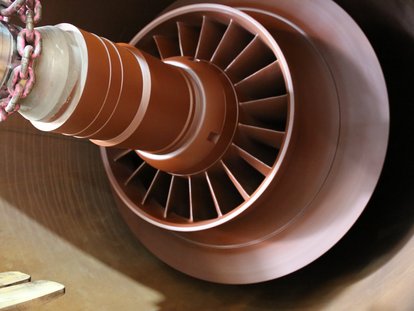

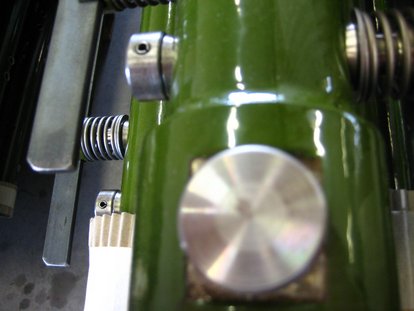

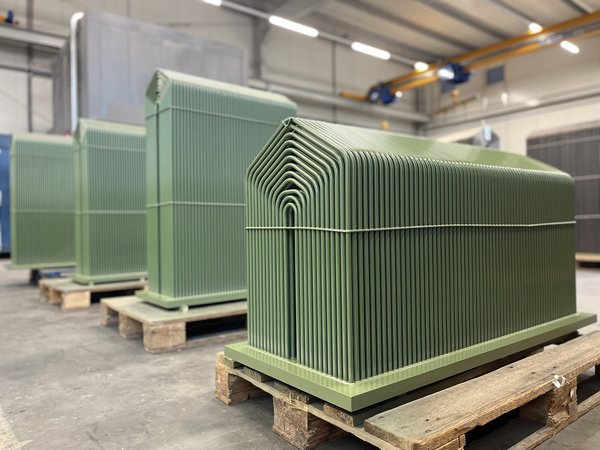

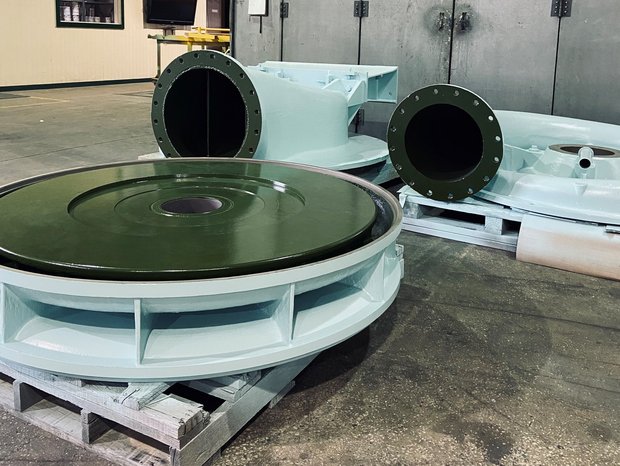

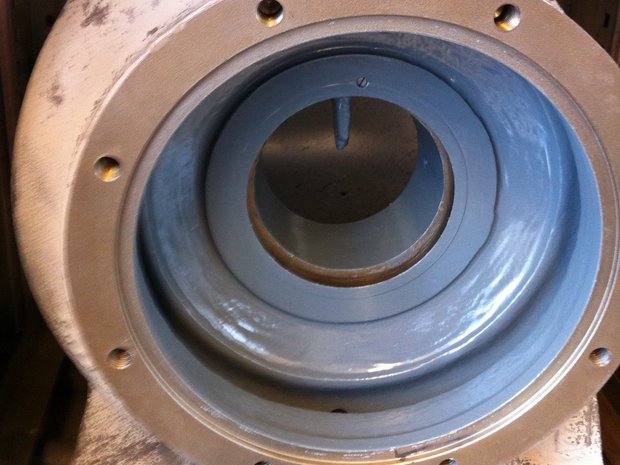

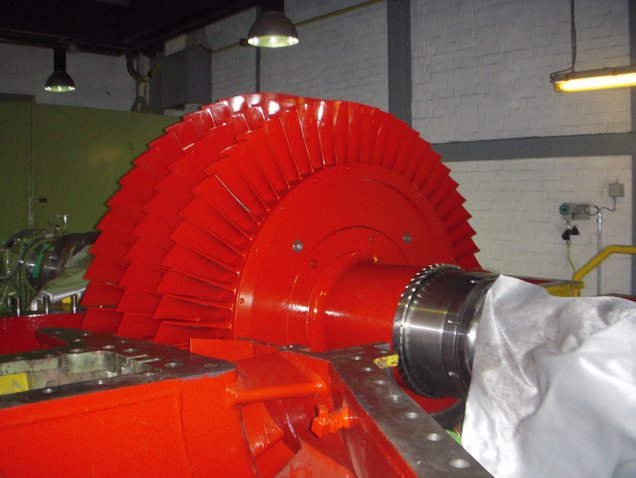

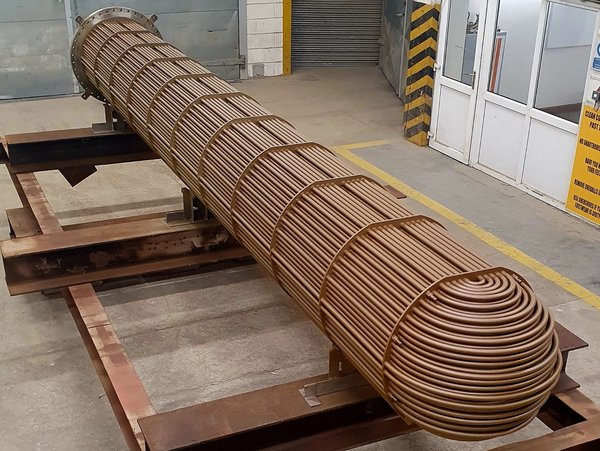

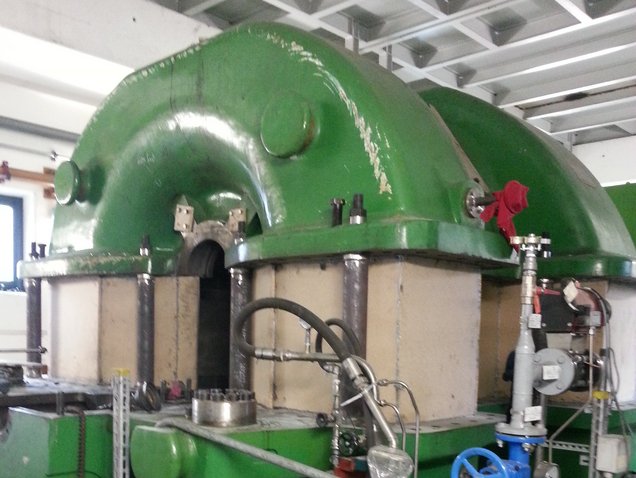

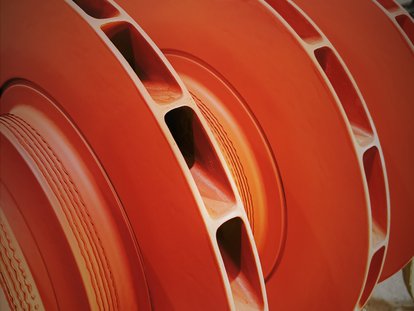

Coated Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Heat-cured coating (heat-cured phenolic/epoxy-phenolic), multi-layer application by flooding orSurface | approx. 0.89–1.59 µm | – | – | – | Carbon steel, Stainless steel, Super duplex, Copper-nickel, Complex alloys, Concrete |
| Cold-curing (catalytic) coating, two-/multi-component, application by brushing,Surface | – | – | – | – | Carbon steel, Stainless steel, Super duplex, Copper-nickel, Complex alloys, Concrete |
| Coating of rotating equipment: turbines, impellers/fan wheels, pump wheels and housings,Surface | – | – | – | – | Carbon steel, Stainless steel |
| Removal of old coatings by blasting (abrasive blasting, Sa 3 per ISO 8501-1:2007) andSurface | – | – | – | – | Carbon steel |
| Coating of tube-bundle heat exchangers, condensers and coolers (tube-side/shell-side),Surface | – | – | – | – | Carbon steel, Stainless steel, Super duplex, Copper-nickel, Titanium |
| Repair of coatings with two-component repair materials (/RE), container sizes 50 g,Surface | Ra <35 µm (Si 14 E/RE) | – | – | – | Carbon steel |
| Technical consulting, resistance testing in the in-house laboratory, on-site application supervisionEngineering | – | – | – | – | – |
| Precision machining of epoxy filler (Ceramoclad 221) in pump wheel seatsMachining | – | – | – | – | Carbon steel |
1 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Polymerization oven for heat-cured coatings | – | – | Curing temperatures up to 220 °C | – | Gladbeck, Germany |
Additional services
Quality
SÄKAPHEN is certified to ISO 9001:2015 and safeguards its coating materials through constant quality control as well as regular resistance tests in its own laboratory. Upon request, the company provides qualified personnel for supervision to support compliance with quality standards from surface preparation (Sa 2½–Sa 3) through to correct application.
| Evidence | Gladbeck |
|---|---|
| ISO 9001 |
History
- 1954
SÄKAPHEN begins setting benchmarks in the field of corrosion protection and develops into a manufacturer and applicator of coatings for critical plants.
