Planning, construction, maintenance and rental of water treatment systems for trade and industry.
SCHALLER Wassertechnische Industrieanlagen GmbH
MeckesheimNew on Amplifa
About Schaller WTI
SCHALLER Wassertechnische Industrieanlagen GmbH (Schaller WTI) was founded in 1974 and is a medium-sized company based in Meckesheim in the Rhein-Neckar district. The company plans and builds water treatment systems for fully automated processes, including water softening systems, reverse osmosis systems, full desalination systems, ultrapure water systems with EDI, nanofiltration systems, filter systems, neutralisation systems as well as UV and dosing technology. Standard systems, spare parts and operating supplies are distributed via the online shop wasseraufbereitung-shop24.de. The range of services also includes water analyses, maintenance and service, system rental, mobile systems, heating system filling according to VDI 2035 and the delivery of demineralised water in IBCs and drums. Manufacturing takes place exclusively at the Meckesheim site; customers come from trade, industry, hospitals and municipalities. System components such as tanks are made of or use PE-HD, PP-H, PE-100 and PVC-U.
- Site
- Meckesheim
- Processes
- Water softening (ion exchange process), Reverse osmosis (system construction), Nanofiltration (system construction), Full desalination (full desalination systems with double softening and reverse osmosis), Full desalination systems with antiscalant dosing and reverse osmosis, Ultrapure water treatment with EDI (electrodeionisation, membrane degassing, NaOH dosing), Filtration (activated carbon filters, gravel filters, Greensand, BIRM, Ecomix, rapid filters, PFAS, Deacidification / pH value increase (Juraperle/calcium carbonate, Calcite)
- Materials
- PE-HD (tanks, rectangular tanks), PP-H (tanks, cylindrical tanks), PE-100 (tanks, cylindrical tanks), PVC-U (piping and fittings), GRP (mixed-bed cartridges, pressure tanks), Quartz gravel (filter medium), Activated carbon on hard coal basis, Juraperle / Calcite (calcium carbonate)
- Certificates
- WHG specialist company
- Founded
- 1974
- Industries
- Trade and industrial enterprises, Hospitals, Municipalities, Building and facility services, Medical technology, Laboratory
- 01
Water analysis and technical consulting
- 02
System planning and design
- 03
Own manufacturing in Meckesheim
- 04
Assembly and commissioning
- 05
Maintenance, service and spare parts supply
- 06
System rental and mobile service
Materials and Processes
PE-HD
Used for rectangular tanks and tanks in plant engineering.
PP-H
Material for cylindrical tanks and storage tanks.
PE-100
Material for cylindrical tanks and tanks.
PVC-U
Piping and fittings, e.g. in full desalination systems and IBC tank systems.
GFK
Material for pressure tanks and mixed-bed cartridges.
Ion exchange resins
Softening and selective resins, e.g. Lewatit S 1567 and AMBERLITE HPR 1100 Na, for softening and special separations.
Reverse osmosis membranes
Membrane elements such as DuPont FILMTEC XLE 440 for desalination of process water.
Filter media
Activated carbon, quartz gravel, Birm, Greensand, Ecomix and calcium carbonate (Juraperle) for filtration, deacidification and iron removal.
Locations
Meckesheim
DEHeadquarters, administration and manufacturing
- Materials
- PE-HD, PP-H, PE-100, PVC-U, GFK
- Water softening system manufacturing
- Reverse osmosis system construction
- Frame assembly
- Neutralisation system manufacturing
Systems and Equipment
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Water softening (ion exchange process)Water treatment | – | – | – | – | Calcium, Magnesium, Sodium |
| Reverse osmosis (system construction)Water treatment | – | – | – | – | – |
| Nanofiltration (system construction)Water treatment | – | – | – | – | – |
| Full desalination (full desalination systems with double softening and reverse osmosis)Water treatment | – | – | – | – | – |
| Full desalination systems with antiscalant dosing and reverse osmosisWater treatment | – | – | – | – | – |
| Ultrapure water treatment with EDI (electrodeionisation, membrane degassing, NaOH dosing)Water treatment | – | – | – | – | – |
| Filtration (activated carbon filters, gravel filters, Greensand, BIRM, Ecomix, rapid filters, PFASWater treatment | – | – | – | – | – |
| Deacidification / pH value increase (Juraperle/calcium carbonate, Calcite)Water treatment | – | – | – | – | – |
| UV disinfection (UV systems for killing germs and viruses)Water treatment | – | – | – | – | – |
| Neutralisation of acidic and alkaline wastewater (continuous and batch processes, pH control)Water treatment | – | – | – | – | – |
| Dosing technology (dosing systems, antiscalant, NaOH, disinfectants)Water treatment | – | – | – | – | – |
| Maintenance and service for softening systemsWater treatment | – | – | – | – | – |
| Maintenance, service and repair for reverse osmosis systems (including membrane autopsy)Water treatment | – | – | – | – | – |
| Rental/mobile water treatment systems (mobile reverse osmosis, mixed-bed rental systems,Water treatment | – | – | – | – | – |
| Heating system filling according to VDI 2035Water treatment | – | – | – | – | – |
| System planning and individual technical design of water treatment systemsEngineering | – | – | – | – | – |
| Refilling of IBCs / delivery of demineralised water in IBCs and drumsWater treatment | – | – | – | – | – |
29 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

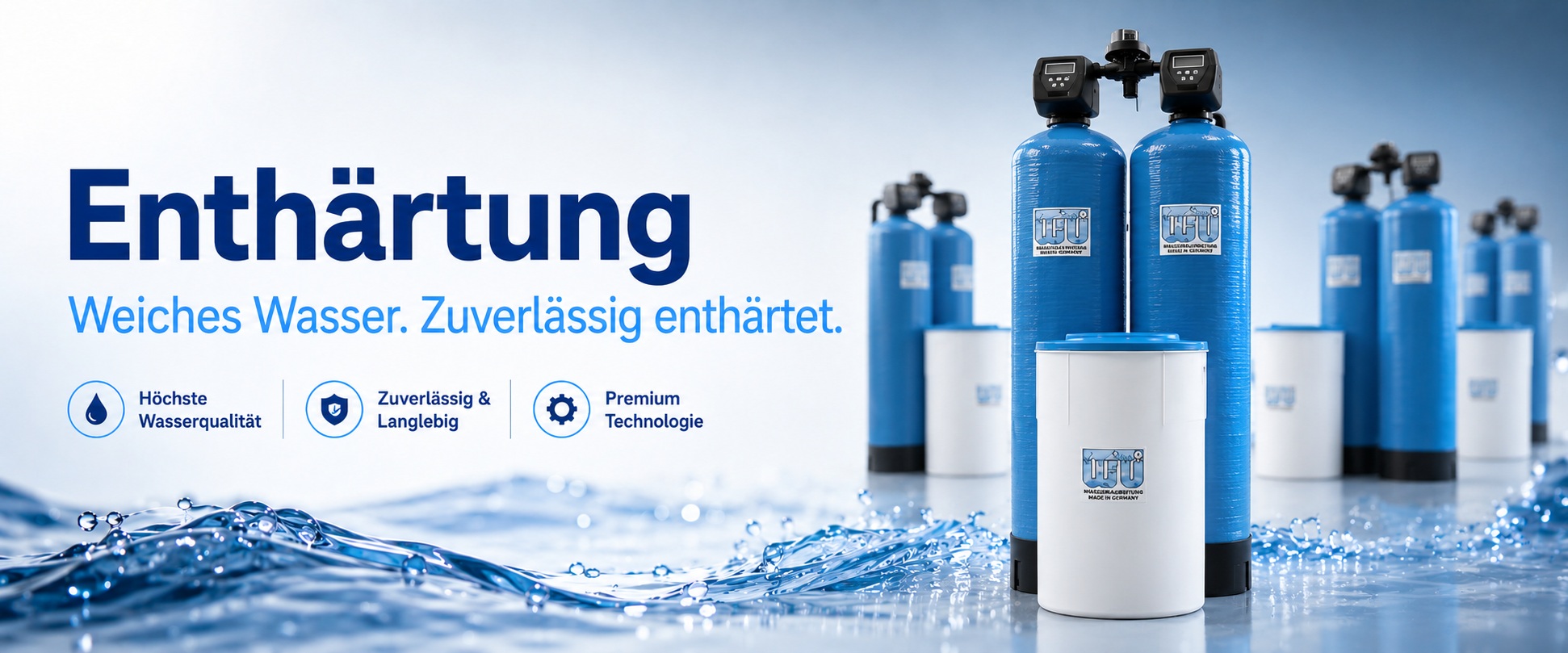

| Softening system (cabinet) | Schaller WTI EEH 015FL | – | 1.5 m³/h, 60 m³x°dH | – | – |
| Softening system (cabinet) | Schaller WTI EEH 010FL | – | 1.0 m³/h, 40 m³x°dH | – | – |
| Double softening system | Schaller WTI Ökosoft 35 G DVGW | – | 1-5 person household | – | – |
| Double softening system | Schaller WTI Ökosoft 60 G DVGW | – | 6-8 person household | – | – |
| Alternating softening system with Clack central control valve | Schaller WTI | – | 1.4–7 m³/h; capacities 100–600 m³/°dH; double systems up to max. 15 m³/h (2,000 m³x°dH) | – | – |

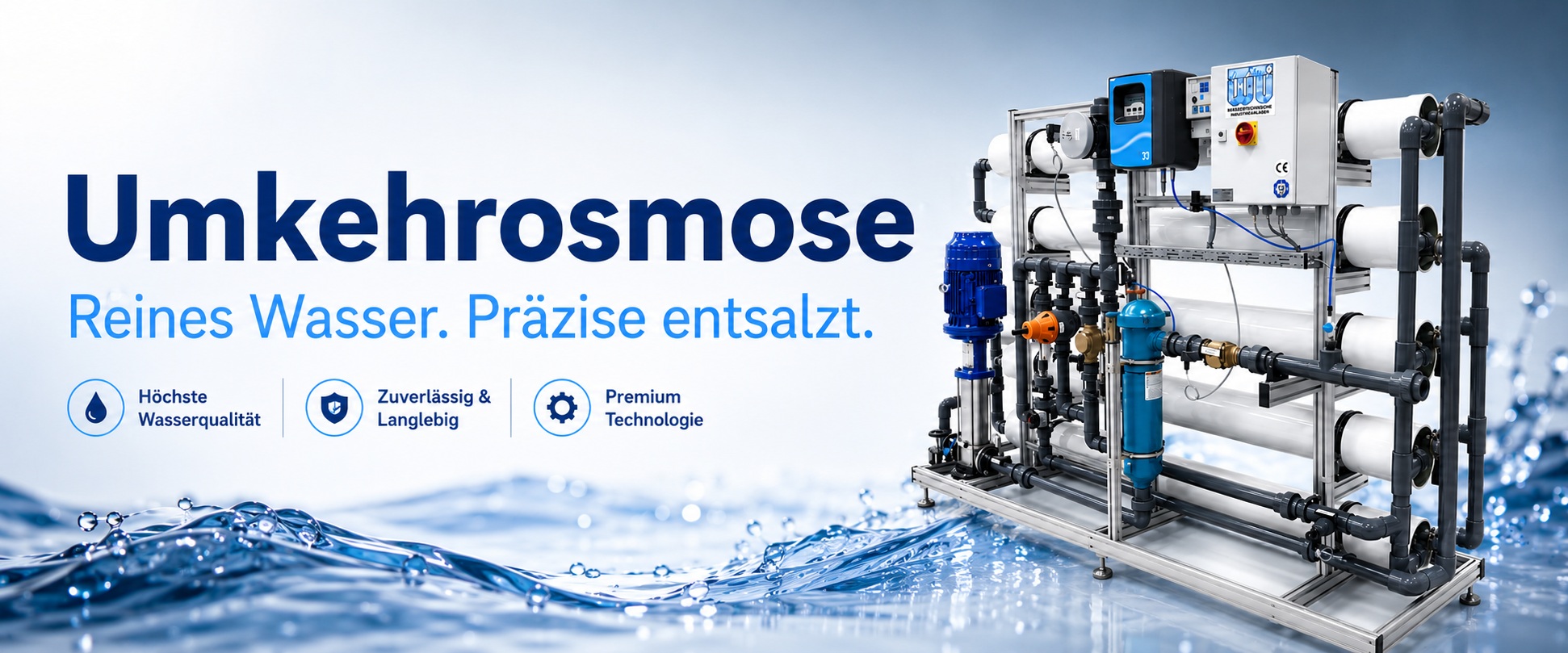

| Reverse osmosis system | Schaller WTI Frame system with compact control | – | 250 l/h to 7 m³/h; variants with concentrate stage EcoConFlow 4–7 m³/h, yield 85% | – | – |
| Full desalination system with double softening | Schaller WTI VE Anlage Osmose | – | 250 l/h to 4 m³/h | – | – |
| Reverse osmosis system with antiscalant dosing | Schaller WTI | – | 1–5 m³/h; variants with tank and pressure boosting | – | – |

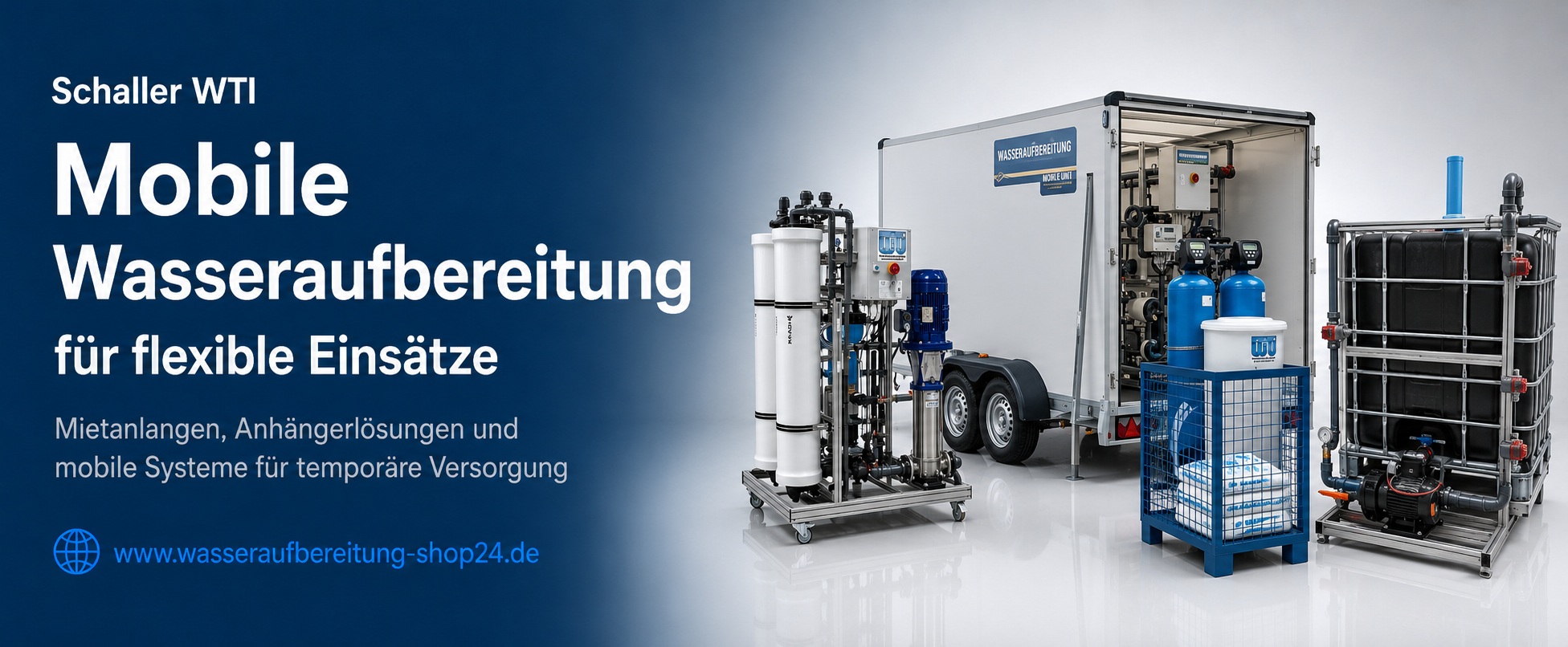

| Mobile reverse osmosis system in a trailer | Schaller WTI | – | 2,000 l/h or 4,000 l/h demineralised water (<15 µS/cm) | – | – |

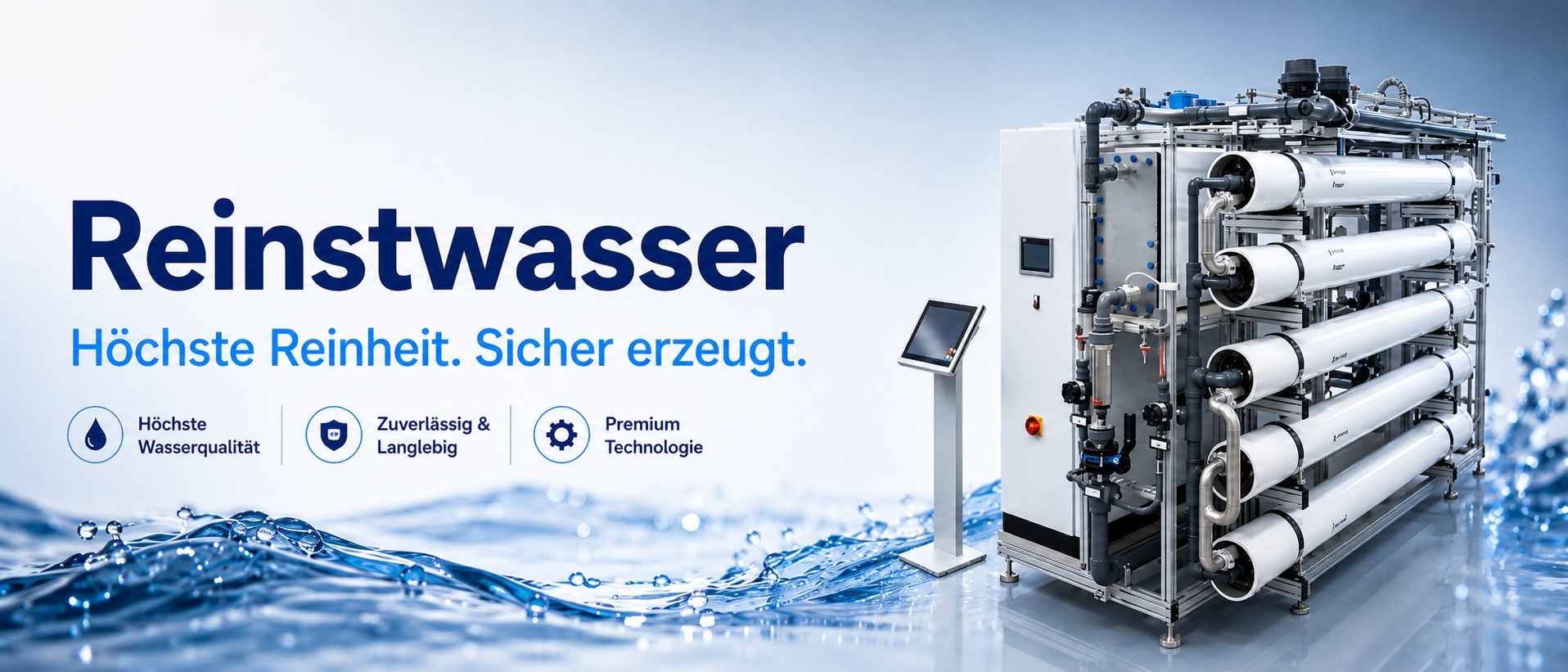

| Ultrapure water system with EDI | Schaller WTI | – | Compact systems with NaOH/antiscalant dosing, softening, reverse osmosis, EDI, membrane degassing; | – | – |

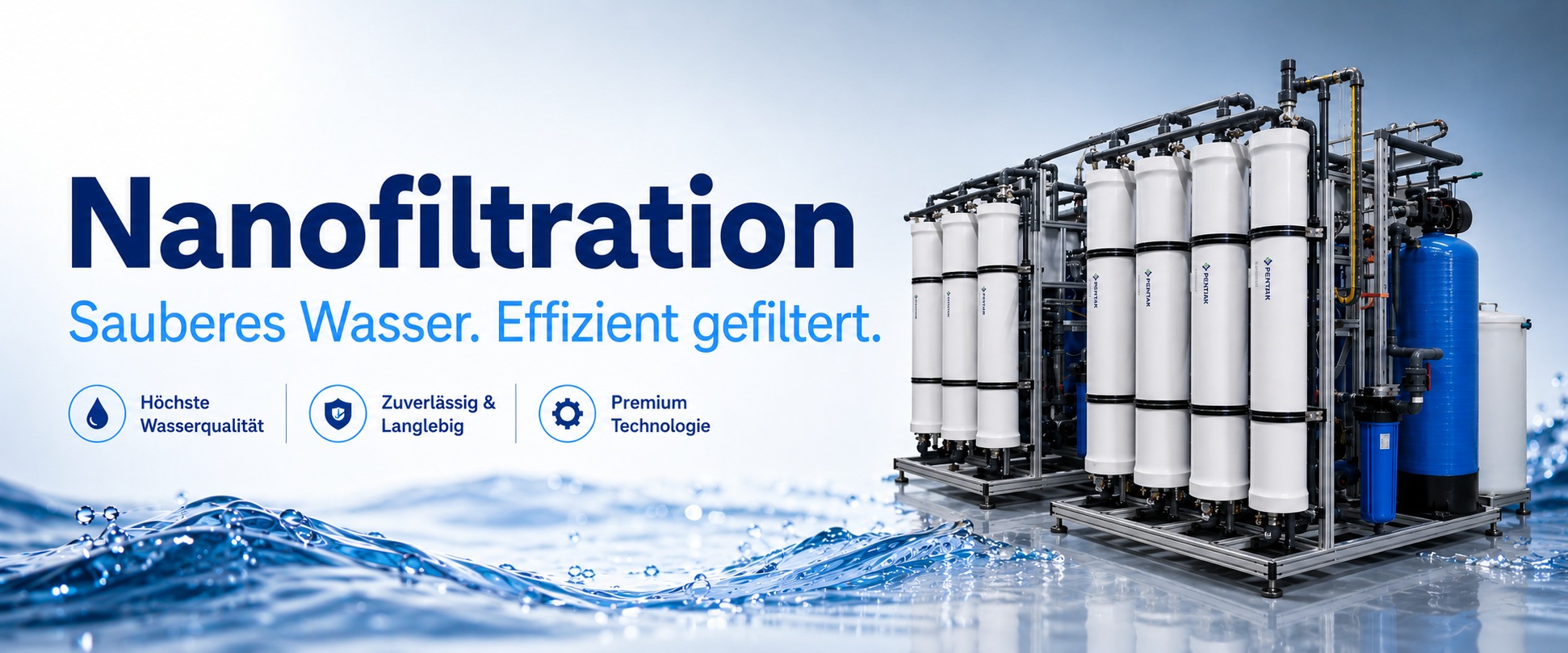

| Nanofiltration system with antiscalant dosing | Schaller WTI | – | 1–6 m³/h (category up to 10 m³/h) | – | – |

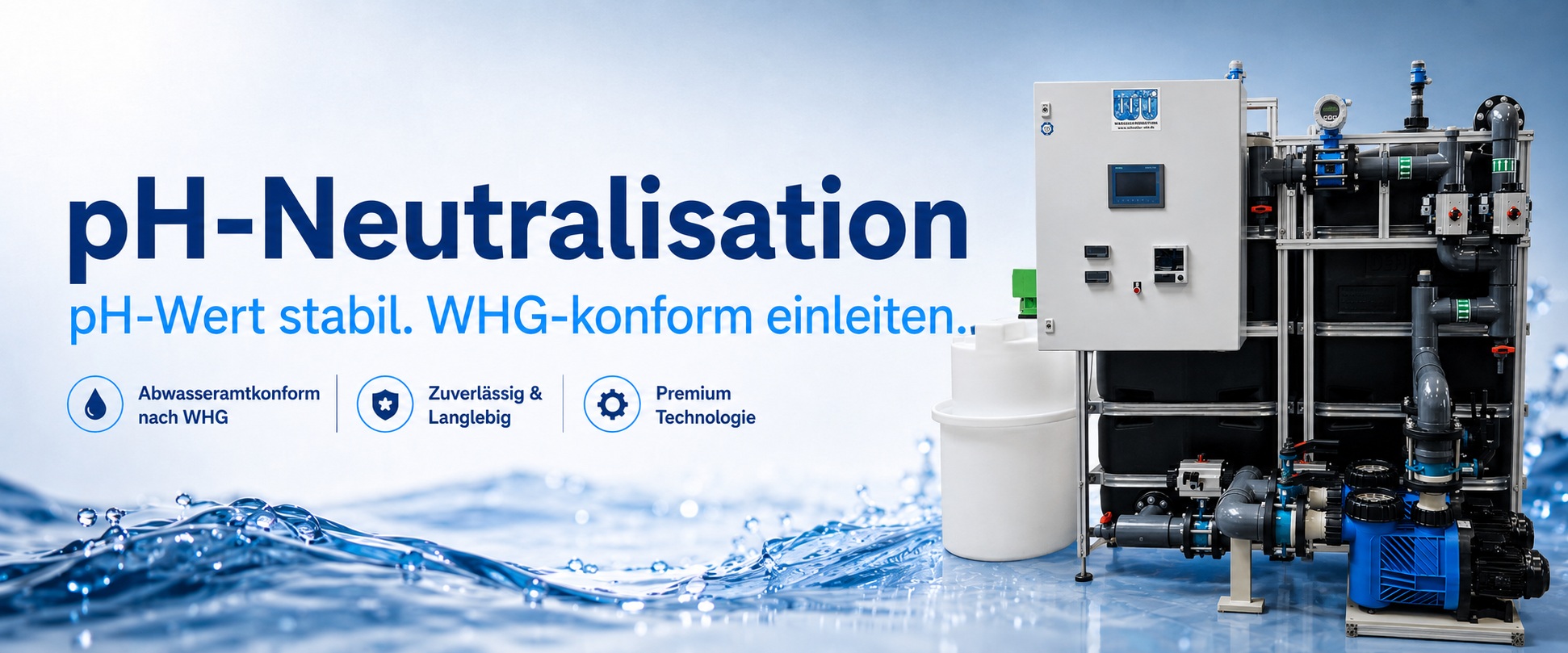

| Batch neutralisation system | Schaller WTI | – | max. 2,000 l/h or 8,000 l/h | – | – |
| Continuous-flow neutralisation system | Schaller WTI | – | max. 2,500 l/h (acidic wastewater) | – | – |
| Central control valve | Clack WS1 / Type IA, Type CI | – | 1" to 1.5" connections, volume- and time-controlled | – | – |
| Deacidification system | Schaller WTI | – | 800–2,000 l/h, time-controlled | – | – |
| Iron/manganese removal filter (Birm) | Schaller WTI | – | 1 to 6.1 m³/h, Clack WS1 valve | – | – |
| Greensand well water treatment | Schaller WTI | – | max. 2,000 l/h | – | – |
| Gravel filter (quartz gravel) | Schaller WTI | – | 1 to 6.1 m³/h, single and double systems | – | – |
| Activated carbon filter | Schaller WTI | – | 1 to 4.8 m³/h, 35–210 litres of activated carbon | – | – |
| Ecomix well water double system | Schaller WTI | – | 1.9–3.4 m³/h; capacity 104–208 m³x°dH | – | – |
| Particle filter for cooling circuit with circulation pump | Schaller WTI | – | 5,000 or 7,500 l/h | – | – |
| Mobile reverse osmosis system (rental system) | Schaller WTI | – | 2,000 / 4,000 / 8,000 l/h | – | – |

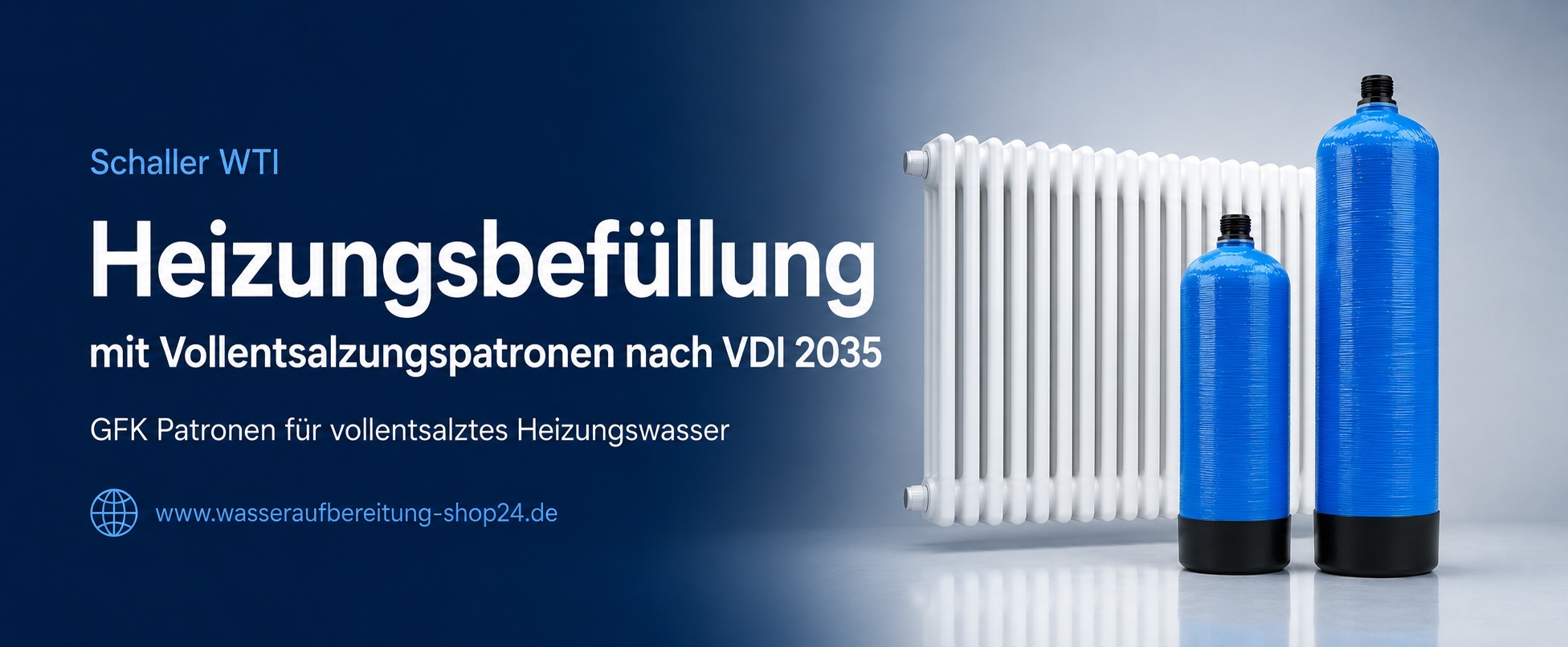

| Heating filling station (rental system according to VDI 2035) | Schaller WTI | – | 15 / 31 / 46 m³ at 600 µS/cm raw water | – | – |
| Rental system mixed-bed system | Schaller WTI | – | 15 / 31 / 46 m³ at 600 µS/cm | – | – |
| Rental system double softening system | Schaller WTI | – | 4,400 l/h | – | – |
| Rental system boiler feed water | Schaller WTI | – | 4 m³/h at 5 bar | – | – |
| UV system | Grünbeck/Wedeco (series) UV 4100, UV 4100 Trio, LCD, LCD PLUS, Aquada, Spektron | – | Lamps 18–120 W; service life 12,000 h (Ecoray) | – | – |
| Rectangular tank with controlled pressure boosting (IBC) | Schaller WTI | – | 1,000 / 2,500 / 4,000 l; PVC-U piping; 5 m³/h at 5 bar (rental system) | – | – |
| Pressure tube (membrane housing) | Pentair Codeline 40E30, 80E30 | – | – | – | – |
Additional services
Reference customers
Quality
Quality is ensured through tested products, expert advice and water analyses for correct system design. The company is registered as a WHG specialist company.
| Evidence | Meckesheim |
|---|---|
| WHG specialist company |
History
- 1974
Founding of Schaller Wassertechnische Industrieanlagen GmbH
