About Diagraph
Diagraph is a provider of marking and inkjet systems for industrial production with headquarters in Würzburg. The product portfolio comprises continuous inkjet printers (Hitachi UX2 and UX), large character printers (Resmark 5000, Drop on Demand), thermal inkjet printers (TJ500/1000), CO2 laser coders (LM C-301), labeling systems (LA7000, PA7100), thermal transfer printers (Allen NGT series, XL5000) and hot stamping machines (Allen S-Compact). The offering is complemented by software solutions and consumables such as inks, thermal transfer ribbons and hot stamping foils. In addition to equipment sales, Diagraph offers a comprehensive service portfolio: consulting on marking solutions, print sample service, user and online training, maintenance, support hotline, emergency service, service packages and loaner devices. BASF is among the named customers; a documented industry solution exists for warehouse automation. The company is part of the ITW Group (Illinois Tool Works) and distributes its solutions with German-, English- and Spanish-language support also to the Spanish market.
- Site
- Würzburg
- Processes
- Continuous inkjet printing (product marking), Drop on Demand / large character printing, Thermal inkjet printing, Laser marking (CO2 laser), Labeling, Thermal transfer printing, Hot stamping, Consulting on marking solutions
- Materials
- Continuous Inkjet (Hitachi UX2/UX), Drop on Demand / large character printing (Resmark 5000), Thermal Inkjet (TJ500/1000), CO2 laser coders (LM C-301), Thermal transfer printing (Allen NGT series, XL5000), Hot stamping (Allen S-Compact), Labeling systems (LA7000, PA7100)
- Industries
- Warehouse automation, Industrial production, Chemicals (BASF as customer)
- 01
Consulting on marking solutions
- 02
Print sample service
- 03
Equipment installation
- 04
User training
- 05
Maintenance & support
- 06
Consumables supply

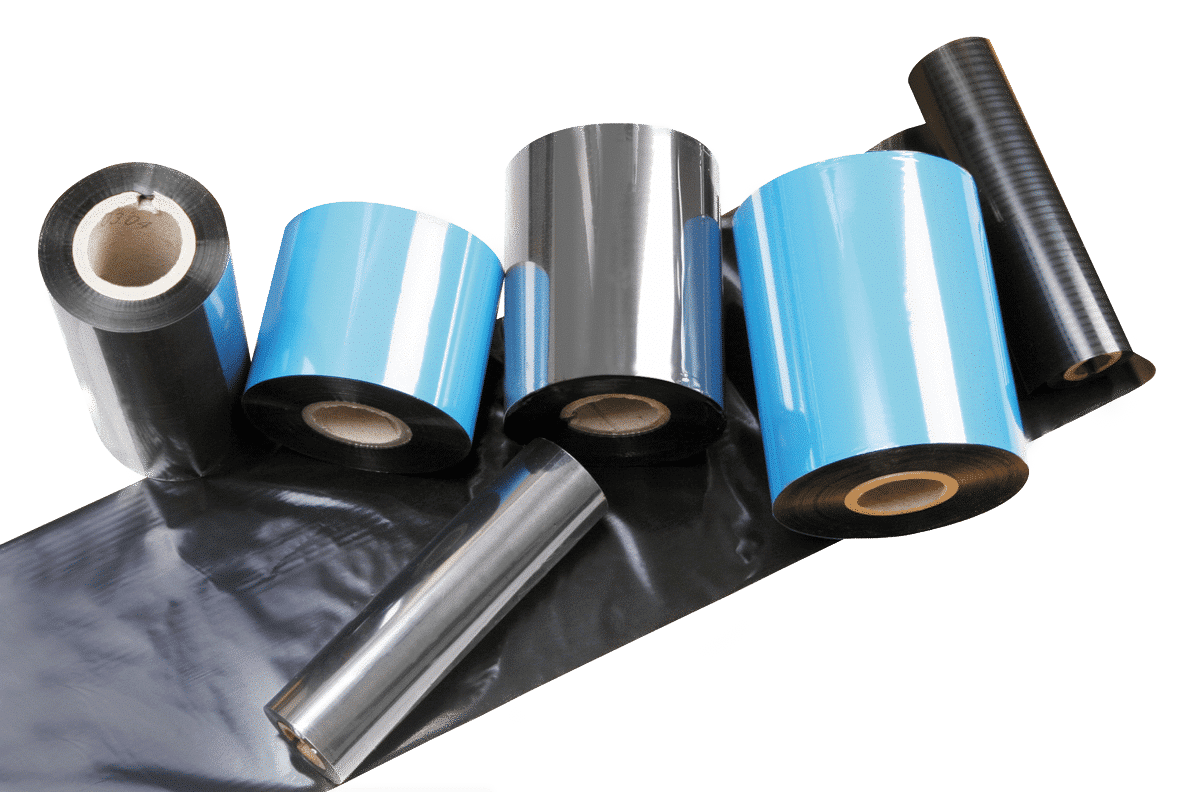

Technologies & Consumables
Continuous Inkjet (Hitachi UX2/UX)
Non-contact product marking for industrial applications.

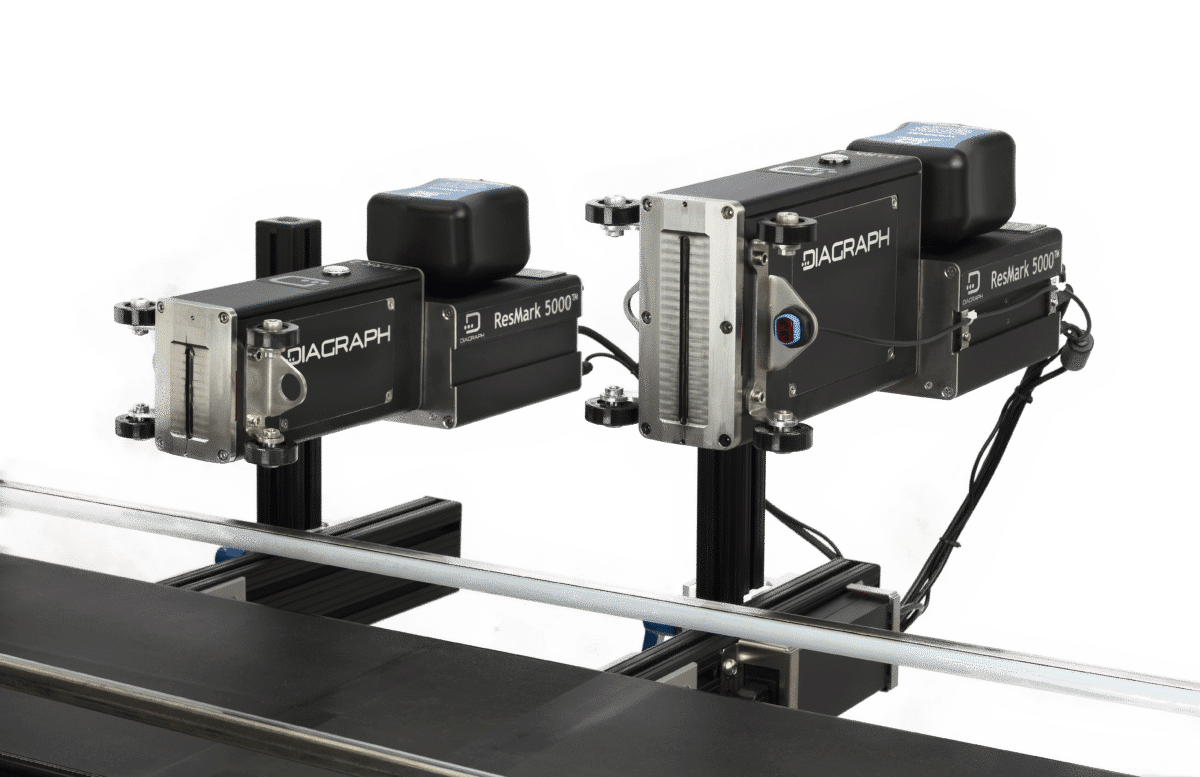

Drop on Demand / large character printing (Resmark 5000)
Large character printing for product marking, e.g. on packaging.
Thermal Inkjet (TJ500/1000)
Compact print head for clean marking directly on products.
CO2 laser coders (LM C-301)
Contactless, wear-free laser marking.
Thermal transfer printing (Allen NGT series, XL5000)
Printing and applying labels in the production process.

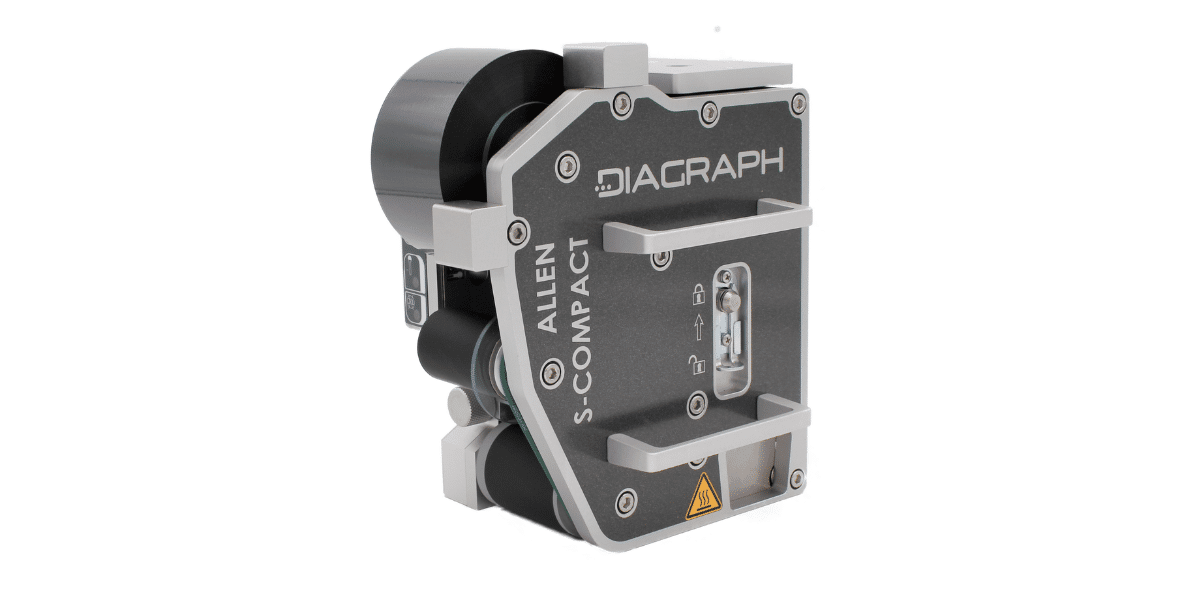

Hot stamping (Allen S-Compact)
Permanent imprinting, e.g. for date and lot marking.

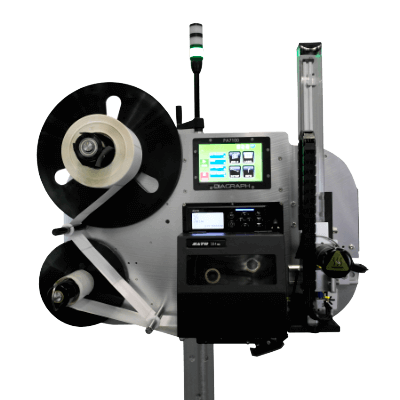

Labeling systems (LA7000, PA7100)
Dispensers and print-and-apply systems for automated labeling.
Locations
Würzburg
DEHeadquarters
- Hitachi UX2/UX Continuous Inkjet
- Resmark 5000 large character printer
- Diagraph TJ500/1000 Thermal Inkjet
- LM C-301 CO2 laser coder
- LA7000/PA7100 labeling systems
- Allen NGT series and XL5000 thermal transfer printers
- Allen S-Compact hot stamper
- Diagraph IJ4000
Products & Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Continuous inkjet printing (product marking)Marking | – | – | – | – | – |
| Drop on Demand / large character printingMarking | – | – | – | – | – |
| Thermal inkjet printingMarking | – | – | – | – | – |
| Laser marking (CO2 laser)Marking | – | – | – | – | – |
| LabelingMarking | – | – | – | – | – |
| Thermal transfer printingMarking | – | – | – | – | – |
| Hot stampingMarking | – | – | – | – | – |
13 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Continuous inkjet printer | Hitachi UX2 | – | – | – | Würzburg |
| Continuous inkjet printer | Hitachi UX | – | – | – | Würzburg |
| Large character printer (Drop on Demand) | Resmark 5000 | – | – | – | Würzburg |
| Thermal inkjet printer | Diagraph TJ500 / 1000 | – | – | – | Würzburg |
| CO2 laser coder | Diagraph LM C-301 | – | – | – | Würzburg |
| Label dispenser | Diagraph LA7000 | – | – | – | Würzburg |
| Print-and-apply labeling system | Diagraph PA7100 | – | – | – | Würzburg |
| Thermal transfer printer | Allen NGT | – | – | – | Würzburg |
| Thermal transfer printer | Allen NGT2 & NGT4 | – | – | – | Würzburg |
| Thermal transfer printer | Allen NGT6 & NGT8 | – | – | – | Würzburg |
| Thermal transfer printer | Allen XL5000 | – | – | – | Würzburg |
| Hot stamper | Allen S-Compact | – | – | – | Würzburg |
| Inkjet printer | Diagraph IJ4000 | – | – | – | Würzburg |
