Development and manufacturing of optomechanical components, positioners and custom systems for photonics, vacuum and cleanroom.
OWIS GmbH
Staufen im Breisgau (DE)New on Amplifa
Competences and Manufacturing Depth

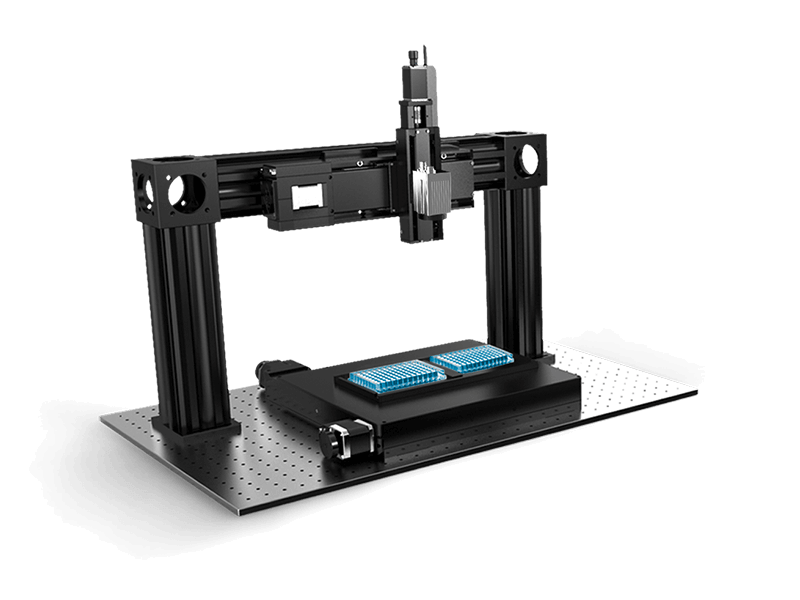

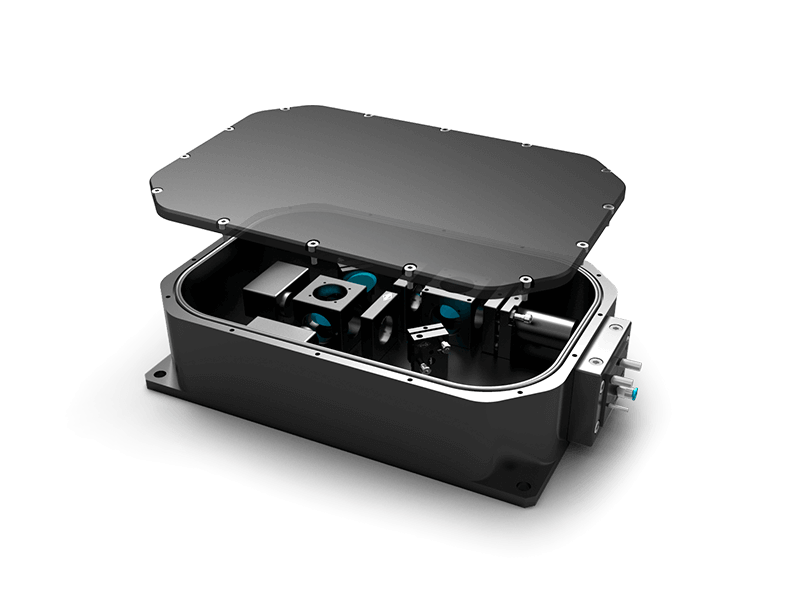

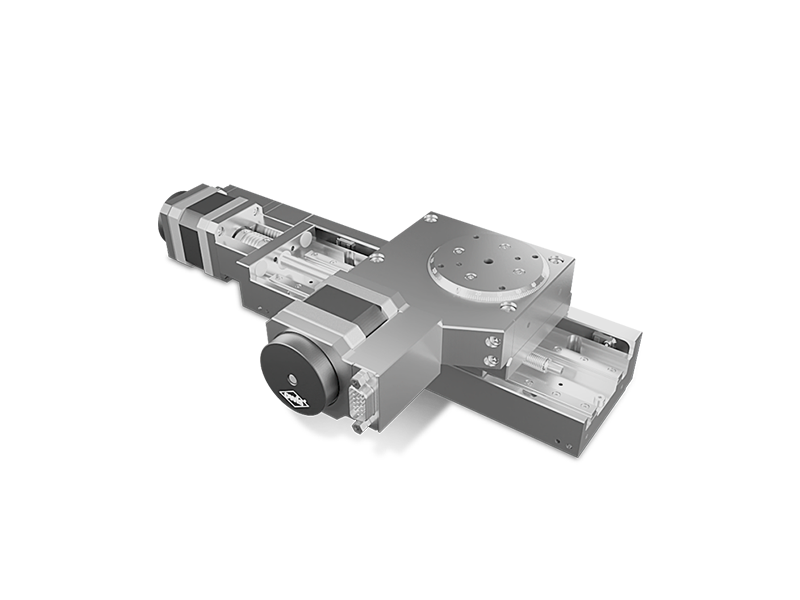

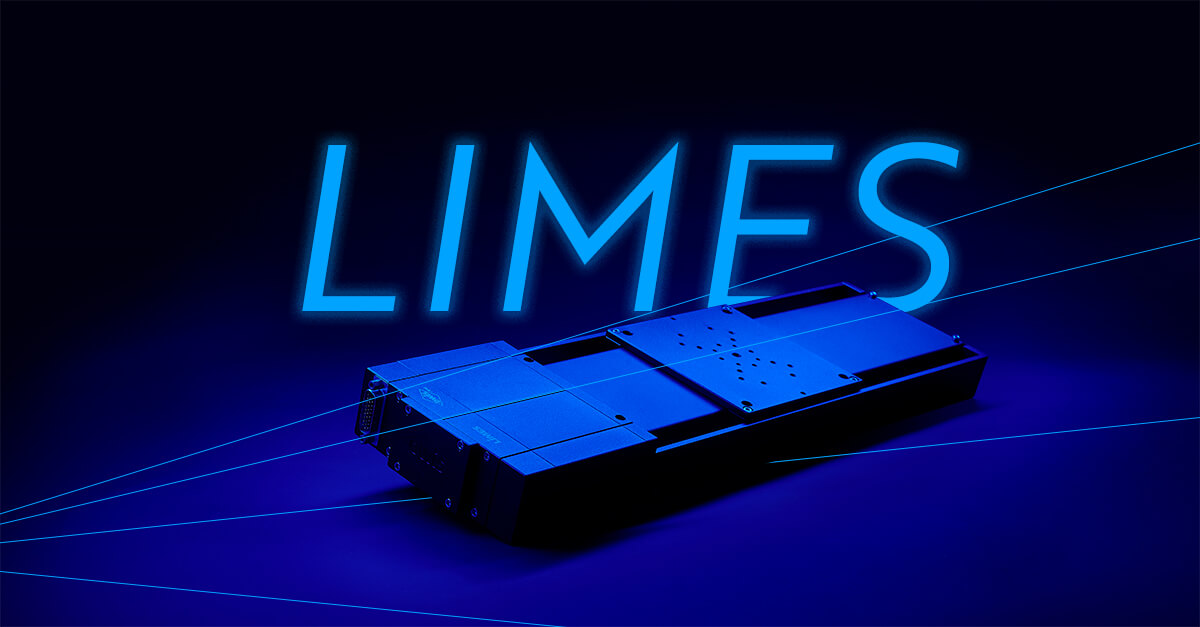

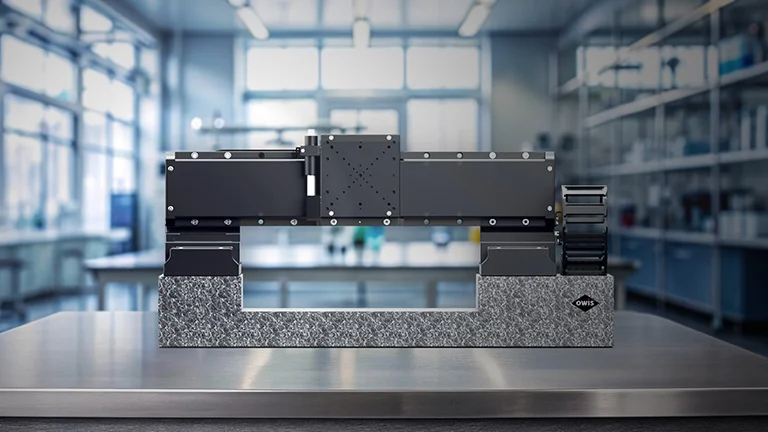

OWIS GmbH was founded in 1980 in Staufen im Breisgau and develops and manufactures optomechanical components, beam guidance systems as well as manual and motorised positioners for high-tech industries. The modular product range comprises more than 1,200 products from which OWIS Engineering develops custom alignment, handling and multi-axis systems with up to 9 axes, including portal and gantry solutions as well as optics boxes and OEM solutions. In-house CNC manufacturing at the company headquarters produces components in the micrometre range, predominantly made of low-distortion aluminium and POM. Components and systems are designed for applications in high vacuum, ultra-high vacuum and, since 2019, in extremely high vacuum (XHV), and are made cleanroom-compatible through surface treatments; assembly and interferometric measurement of the cleanroom products take place in the company's own ISO Class 5 cleanroom, and suitability for UHV and XHV is verified by residual gas analysis. Customers include photonics, laser processing, metrology and machine vision, semiconductor technology, analytics and biotechnology, medical technology, sensor technology, as well as research and science. The owner-managed company with around 50 employees supplies customers through more than 23 representative offices worldwide.
- Site
- Staufen im Breisgau
- Processes
- Assembly of highly sensitive components and subsystems (standard and custom products), Assembly and measurement of cleanroom products in the company's own ISO Class 5 cleanroom, Interferometric measurement of products, Residual gas analysis for verifying suitability for UHV and XHV, Customising for applications in vacuum (HV, UHV, XHV), Micro and precision assembly of optical or sensor systems, OWIS Engineering (custom system solutions), Customising and OEM solutions
- Materials
- low-distortion aluminium, POM, Aluminium (black anodised, low reflectivity), Low-distortion aluminium, POM (plastic), Anodising, Cleanroom preparation
- Certificates
- ISO 9001, Cleanroom ISO Class 5, Interferometric measurement, Residual gas analysis (UHV/XHV)
- Founded
- 1980
- Employees
- around 50
- Industries
- Photonics, Laser technology, Laser processing, Metrology and machine vision, Semiconductor technology, Analytics and biotechnology
- 01
Consulting
- 02
Development and design (OWIS Engineering)
- 03
CNC manufacturing
- 04
Surface treatment
- 05
Assembly
- 06
Cleanroom assembly and measurement (ISO Class 5)
- 07

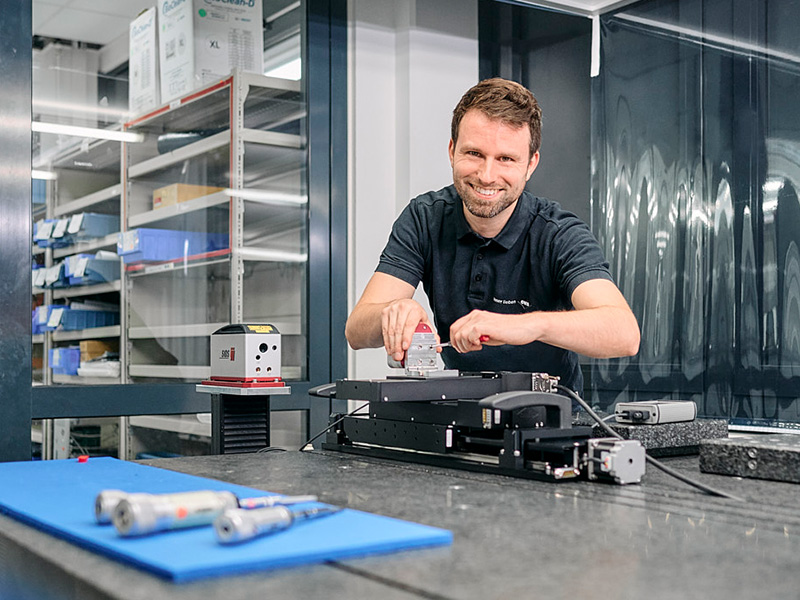

Interferometric measurement
- 08
Residual gas analysis (UHV/XHV)
Materials and Processes
Low-distortion aluminium
Base material for system rails, carriers, profiles and mounting cubes, partly black anodised for low reflectivity.
POM (plastic)
Material for holding arms of optic holders, including the UNOH 25/40/65 series.
Anodising
Surface treatment of individual components, e.g. low-reflectivity black anodising of mounting cubes.
Cleanroom preparation
Cleaning, lubricant adaptation and surface treatment of components for cleanroom use.
Locations
Staufen im Breisgau
DEHeadquarters with development, CNC manufacturing, assembly and cleanroom
- Materials
- Aluminium, POM
- CNC machining machines
- Interferometers
- Residual gas analysis device
- Cleanroom ISO Class 5
Products and Systems
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Machining | – | – | – | – | Aluminium, POM |
| Assembly of highly sensitive components and subsystems (standard and custom products)Assembly | – | – | – | – | – |
| Assembly and measurement of cleanroom products in the company's own ISO Class 5 cleanroomAssembly | – | – | – | – | – |
| Interferometric measurement of productsTesting | – | – | – | – | – |
| Residual gas analysis for verifying suitability for UHV and XHVTesting | – | – | – | – | – |
| Engineering | – | – | – | – | – |
| Surface treatment | – | – | – | – | – |

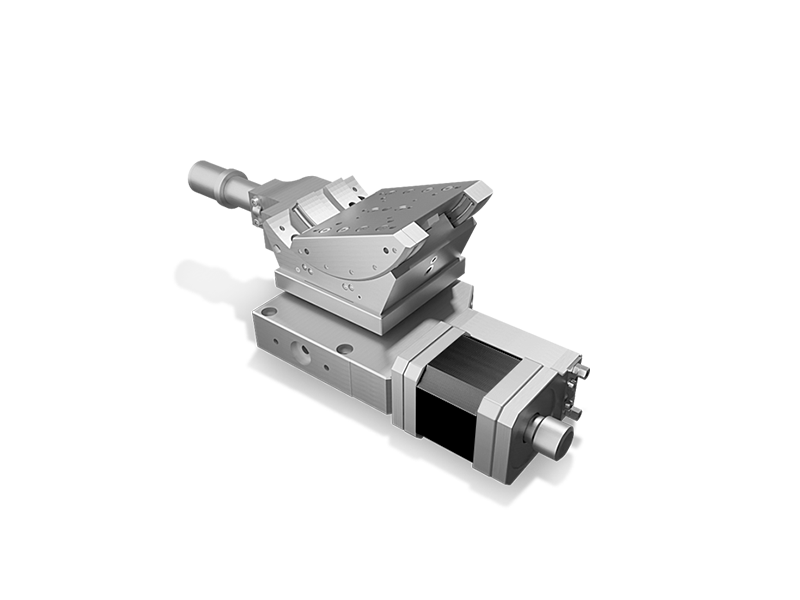

| Customising for applications in vacuum (HV, UHV, XHV)Engineering | – | – | – | – | – |
| Micro and precision assembly of optical or sensor systemsAssembly | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC machining machines | – | – | – | – | Staufen im Breisgau |
| Interferometers | – | – | – | – | Staufen im Breisgau |
| Residual gas analysis device | – | – | – | – | Staufen im Breisgau |
| Cleanroom (ISO Class 5) | – | – | – | – | Staufen im Breisgau |
Additional services

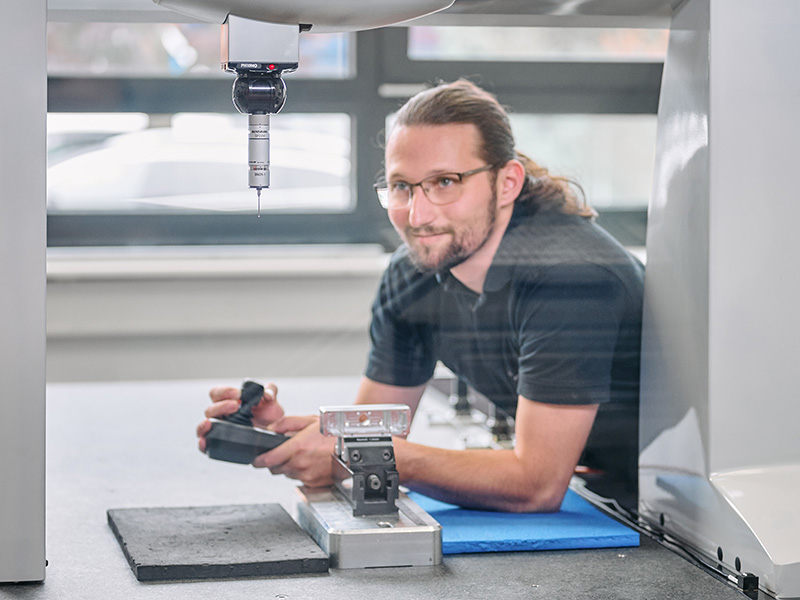

Quality Assurance
Continuous quality controls run through the entire value creation process. Performance data are measured interferometrically; cleanroom products are assembled in the ISO Class 5 cleanroom and qualified for UHV/XHV by residual gas analysis.
| Evidence | Staufen im Breisgau |
|---|---|
| ISO 9001 | |
| Cleanroom ISO Class 5 | |
| Interferometric measurement | |
| Residual gas analysis (UHV/XHV) |
History
- 1980
Founding of OWIS GmbH in Staufen im Breisgau
- 2018
Rüdiger Ruh joined OWIS as Managing Director
- 2019
Design of products for the XHV range
- 2021
Rüdiger Ruh took over the company and has been managing partner since 1 January 2021
- 2023
Part of the Zielgerade360 initiative (WIN-Charta)
- 2024
Klimawin-BW company
